AE111R-ALPDKW (1997)
Toyota Corolla Hb/Lb
Production
Apr 1997
-
Oct 1999
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )AE111..RHD..4FC

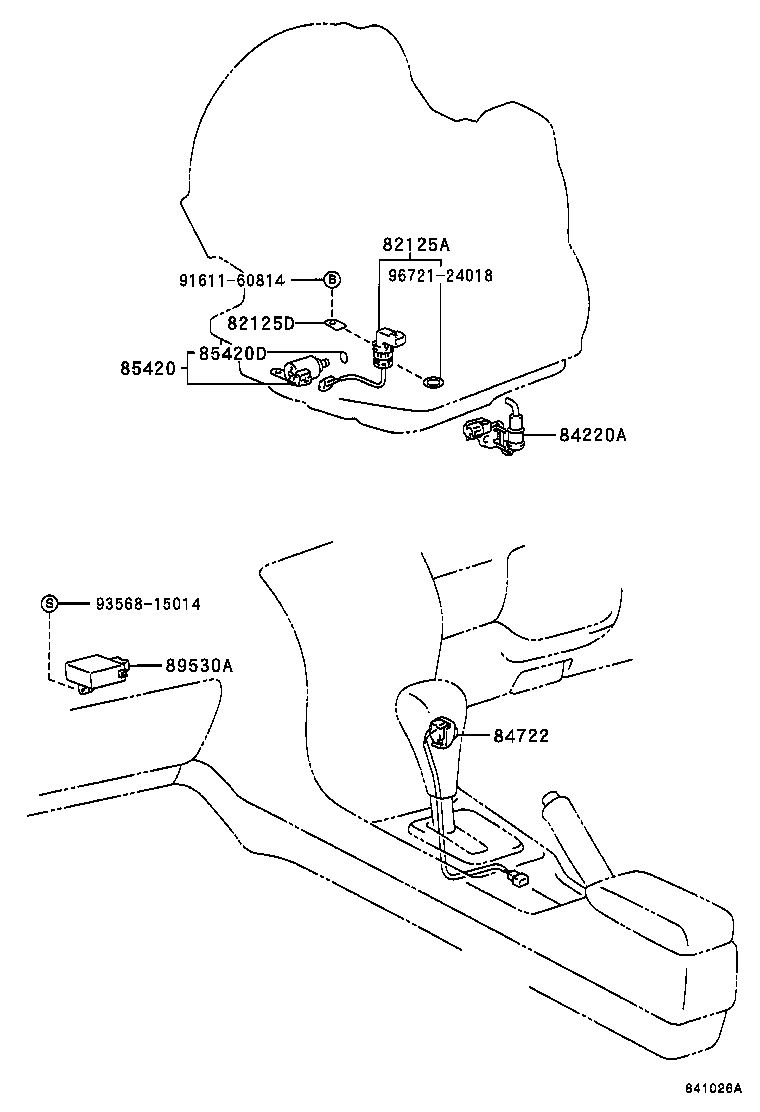

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-12360 |
AE111..JPP..4FC |
1 | ||
| 82125D - PLATE, TRANSMISSION WIRE LOCK | ||||
| 33485-30020 |
AE111..JPP..4FC |
1 | ||
| 84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-20100 |
AE111..JPP..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-12060B3 |
AE111..RHD..4FC DK.CHARCOAL,TRIM1# |
1 | ||
| 84722-12060B0 |
AE111..RHD..4FC SHADOW GRAY,TRIM0# |
1 | ||
| 84722-12060B0 |
AE111..JPP..RHD..4FC SHADOW GRAY,TRIM12 |
1 | ||
| 84722-12060B3 |
AE111..JPP..RHD..4FC DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-20180 |
AE111..JPP..4FC |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111..JPP..4FC |
1 | ||
| 89530A - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-12200 |
AE111..JPP..RHD..4FC |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 93568-15014 | ||||
| 96721-24018 | ||||
