AE111R-AGMDKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

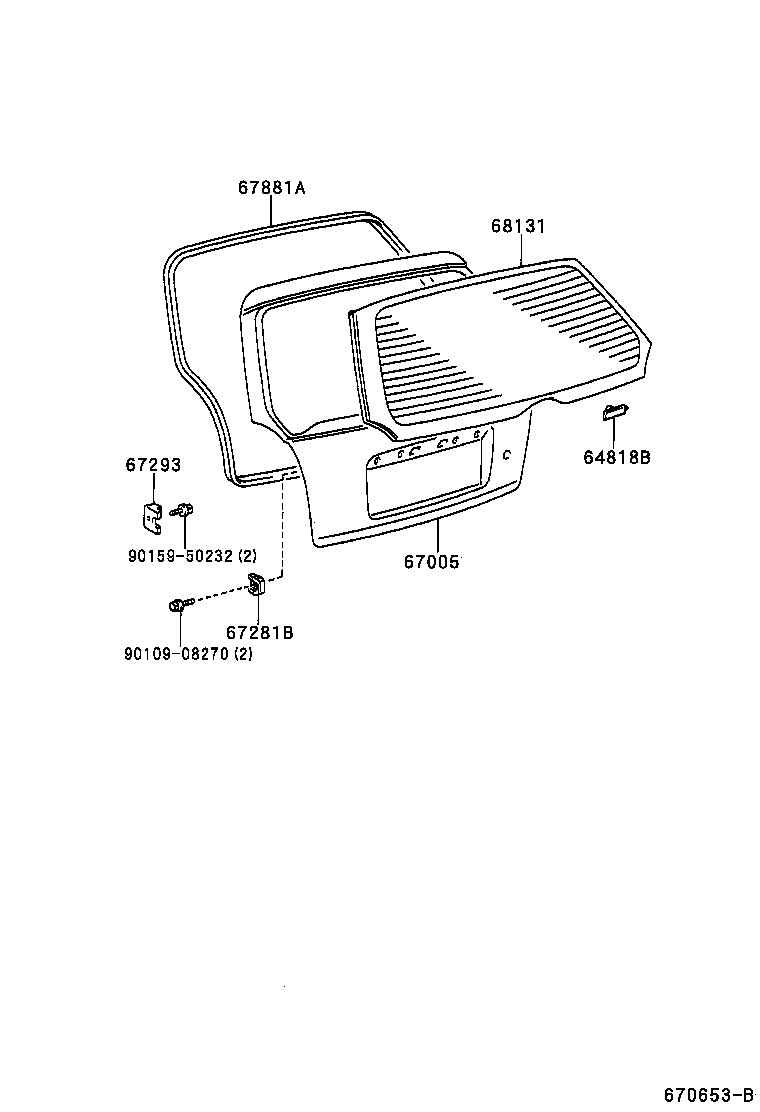

ILLUST NO. 2 OF 2(9704- )HB

Click highlighted areas on diagram

diagram 64818B 67005 67281B 67293 67881A 68131 9010908270 9015950232
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-12030

AE111,CE110,EE111..HB

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1A890

AE111,CE110,EE111..HB

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-20040

AE111,CE110,EE111..JPP

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-12080

AE111,CE110,EE111..HB

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-12270

AE111,CE110,EE111..HB

 1
68131 - GLASS, BACK DOOR
68131-1A590

AE111,CE110,EE111..HB

*EHTT,T=3.5,GREEN

 1
Common parts
90109-08270
90159-50232

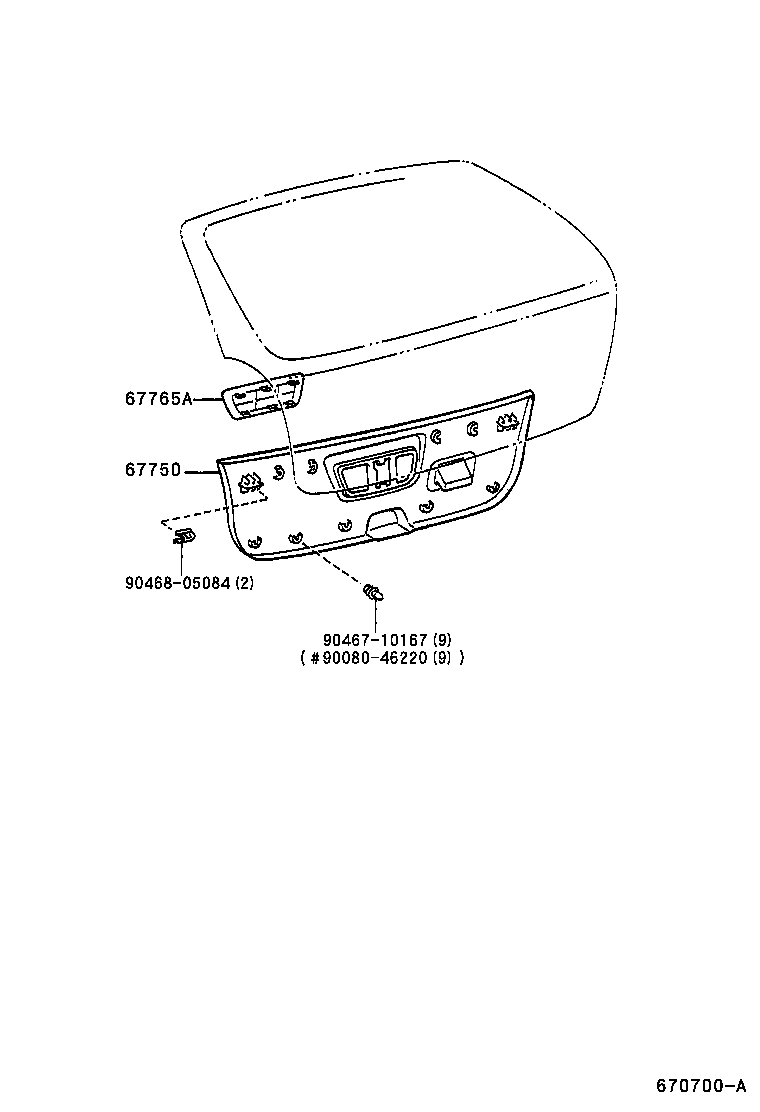

ILLUST NO. 1 OF 2(9704- )HB

Click highlighted areas on diagram

diagram 67750 67765A 9008046220 9046710167 9046805084
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-12080B0

AE111,EE111..HB..5F..TERRA

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

 1
67750-12080B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
67750-12080B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-12100B0

AE111,EE111..HB..5F..TERRA

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

 1
67765-12100B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
67765-12100B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
Common parts
90080-46220
90467-10167
90468-05084
