AE111L-DLPNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

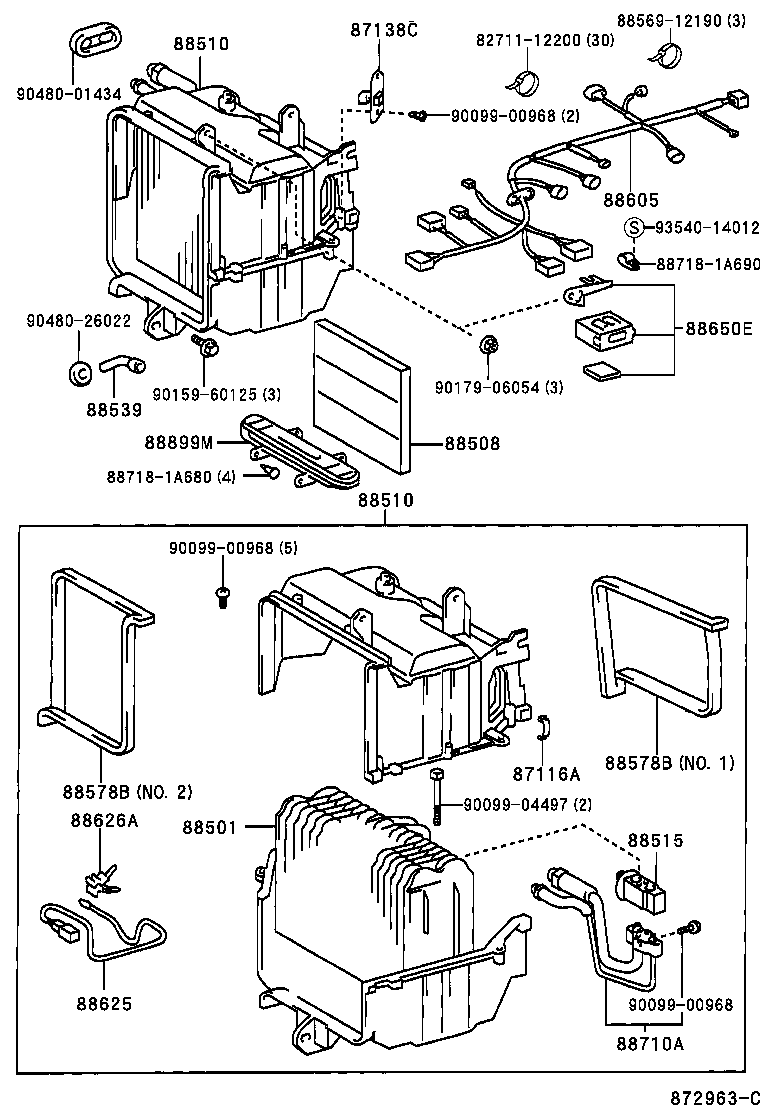

ILLUST NO. 1 OF 2(9809- )UKP..LHD

Click highlighted areas on diagram

diagram 8271112200 87116A 87138C 88501 88508 88510 88510 88515 88539 8856912190 88578B 88578B 88605 88625 88626A 88650E 88710A 887181A680 887181A690 88899M 9009900968 9009900968 9009900968 9009904497 9015960125 9017906054 9048001434 9048026022 9354014012
Part # Description Qty Price
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-02010

AE111,EE111..UKP

 1
88515 - VALVE, COOLER EXPANSION
88515-16050

AE111,EE111..UKP

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-02090

AE111..UKP..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-02020

AE111,EE111..UKP

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-02180

AE111..UKP

 1
Common parts
82711-12200
88569-12190
88718-1A680
88718-1A690
90099-00968
90099-04497
90159-60125
90179-06054
90480-01434
90480-26022
93540-14012
