AE111L-DLPNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-9911)UKP..LHD

Click highlighted areas on diagram

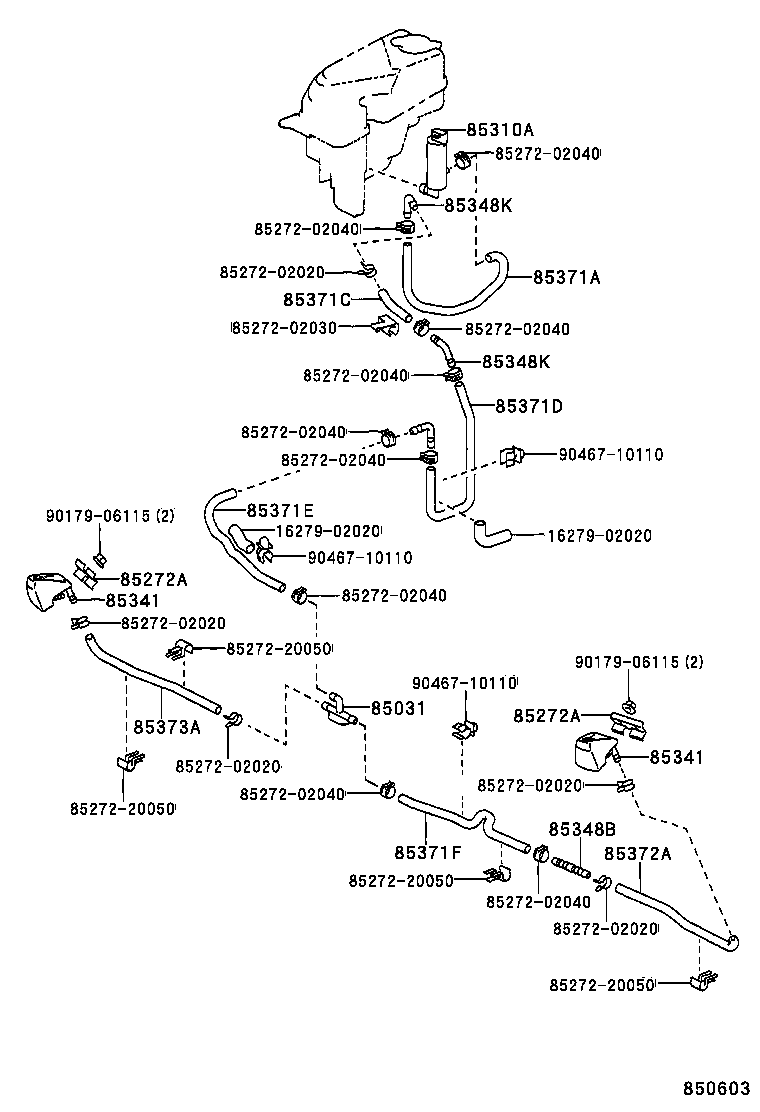

diagram 1627902020 1627902020 85031 8527202020 8527202020 8527202020 8527202020 8527202020 8527202030 8527202040 8527202040 8527202040 8527202040 8527202040 8527202040 8527202040 8527202040 8527202040 8527220050 8527220050 8527220050 8527220050 85272A 85272A 85310A 85341 85341 85348B 85348K 85348K 85371A 85371C 85371D 85371E 85371F 85372A 85373A 9017906115 9017906115 9046710110 9046710110 9046710110
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85287-02010

AE111,EE111..UKP..LHD

 1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-02010

AE111,EE111..UKP..LHD

 2
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-02010

AE111,EE111..UKP..LHD

 2
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-02010

AE111,EE111..UKP..LHD

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-02010

AE111,EE111..UKP..LHD

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-02010

AE111,EE111..UKP..LHD

 2
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85287-02030

AE111,EE111..UKP..LHD

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85287-02020

AE111,EE111..UKP..LHD

 3
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85287-02020

AE111,EE111..UKP..LHD

 3
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85271-02070

AE111,EE111..UKP..LHD

 1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85271-02030

AE111,EE111..UKP..LHD

 1
85371D - HOSE, HEADLAMP CLEANER, NO.2
85271-02040

AE111,EE111..UKP..LHD

 1
85371E - HOSE, HEADLAMP CLEANER, NO.3
85271-02050

AE111,EE111..UKP..LHD

 1
85371F - HOSE, HEADLAMP CLEANER, NO.4
85271-02060

AE111,EE111..UKP..LHD

 1
85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
85271-02020

AE111,EE111..UKP..LHD

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85275-02010

AE111,EE111..UKP..LHD

 1
Common parts
16279-02020
85272-02020
85272-02030
85272-02040
85272-20050
90179-06115
90467-10110

(9910- )WZE110..LHD..HB ; (9910- )CDE110,ZZE11#..LHD ; (9910- )AE111,EE111

Click highlighted areas on diagram

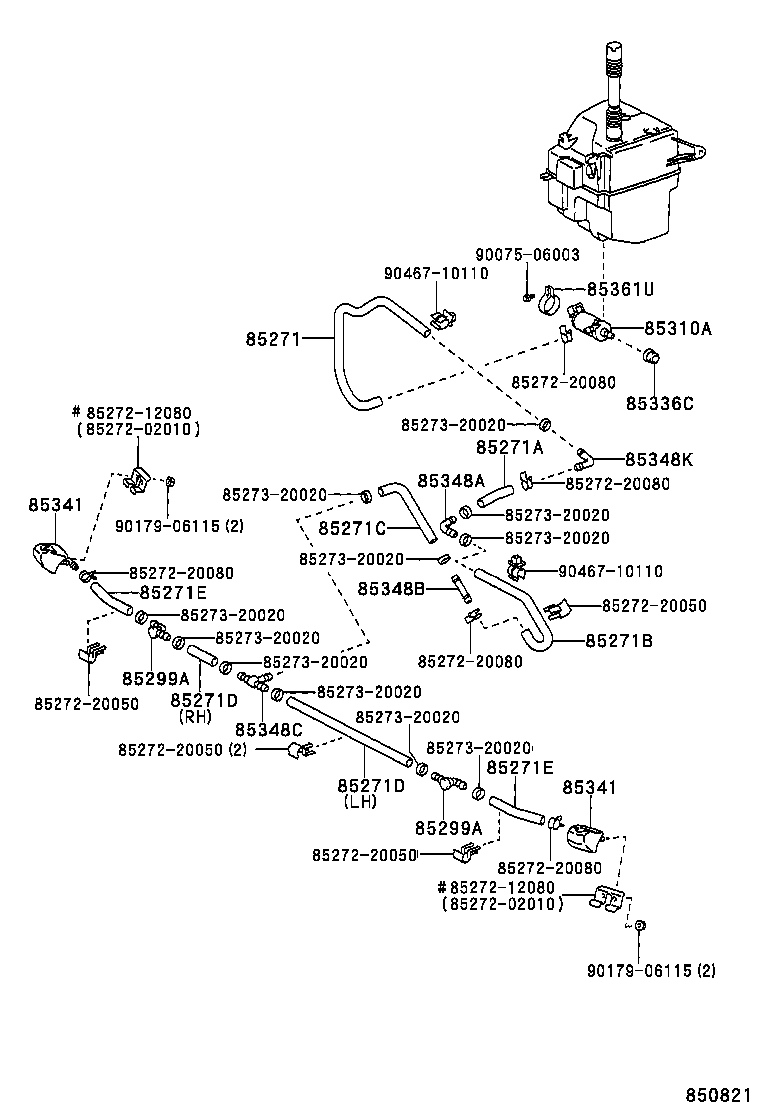

diagram 85271 85271A 85271B 85271C 85271D 85271D 85271E 85271E 8527202010 8527202010 8527212080 8527212080 8527220050 8527220050 8527220050 8527220050 8527220080 8527220080 8527220080 8527220080 8527220080 8527320020 8527320020 8527320020 8527320020 8527320020 8527320020 8527320020 8527320020 8527320020 8527320020 8527320020 85299A 85299A 85310A 85336C 85341 85341 85348A 85348B 85348C 85348K 85361U 9007506003 9017906115 9017906115 9046710110 9046710110
Part # Description Qty Price
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-02010

AE111,EE111..UKP..LHD

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-02010

AE111,EE111..UKP..LHD

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-02010

AE111,EE111..UKP..LHD

 2
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85287-02030

AE111,EE111..UKP..LHD

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85287-02020

AE111,EE111..UKP..LHD

 3
Common parts
85272-02010
85272-12080
85272-20050
85272-20080
85273-20020
90075-06003
90179-06115
90467-10110
