AE111L-DLPDKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-9911)UKP

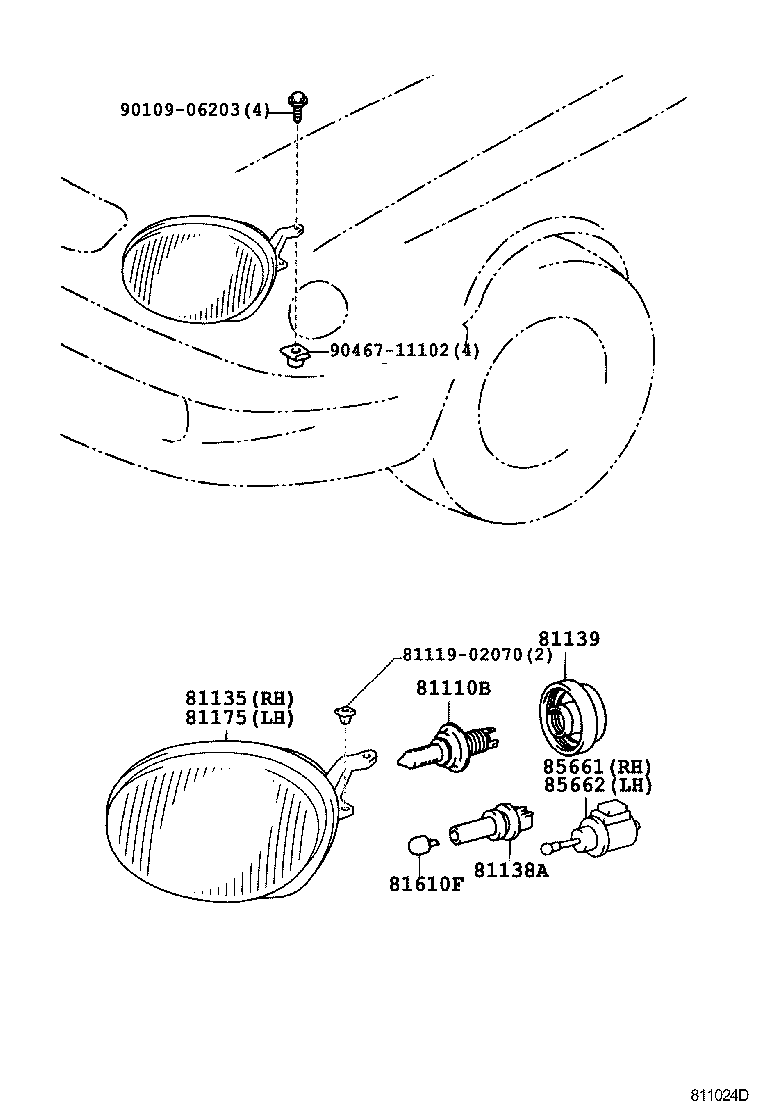

Click highlighted areas on diagram

diagram 81110B 8111902070 81135 81138A 81139 81175 81610F 85661 85662 9010906203 9046711102
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81031

AE111,EE111..UKP

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02080

AE111,EE111..UKP..LHD

 1
81138A - SOCKET & WIRE, HEADLAMP
81138-02070

AE111,EE111..UKP

 4
81139 - COVER, HEADLAMP SOCKET
81139-02070

AE111,EE111..UKP

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-02070

AE111,EE111..UKP..LHD

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AE111,EE111..UKP

12V 5W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-02010

AE111,EE111..UKP

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-02010

AE111,EE111..UKP

 1
Common parts
81119-02070
90109-06203
90467-11102
