AE111L-DLMNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )UKP

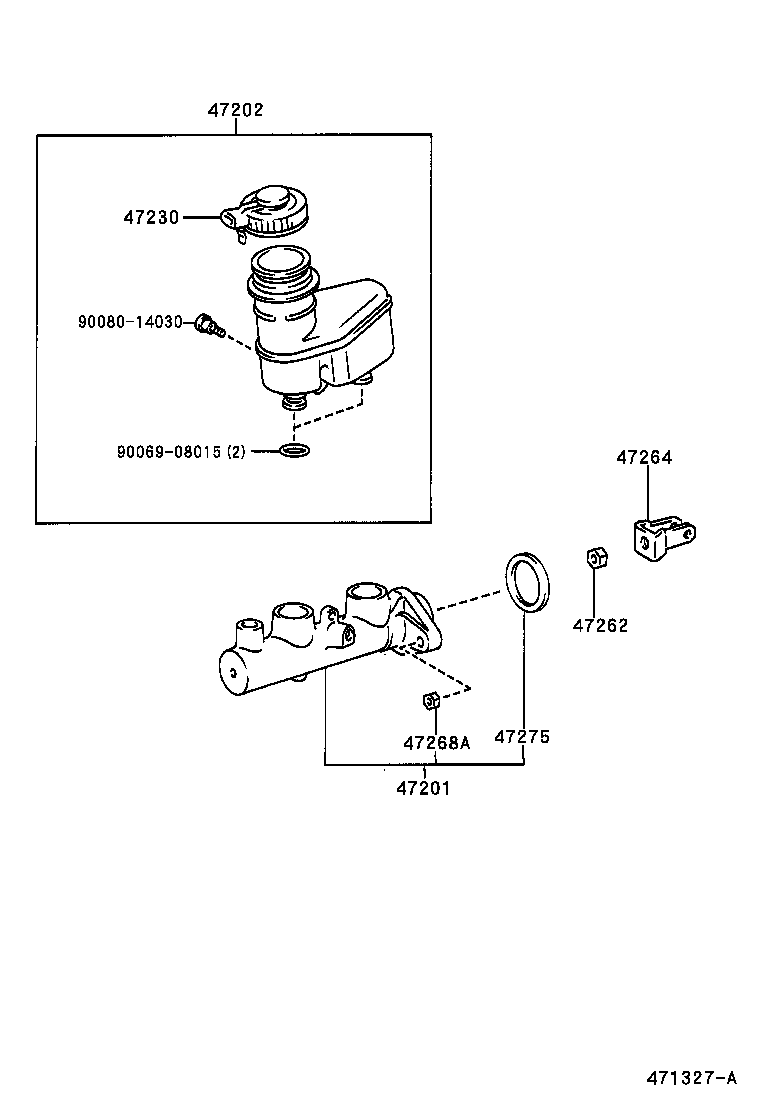

Click highlighted areas on diagram

diagram 47201 47202 47230 47262 47264 47268A 47275 9006908015 9008014030
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-02070

AE111,EE111..UKP..LHD

W(ABS)

 1
47201-02060

AE111,EE111..UKP..LHD

 1
Common parts
90069-08015
90080-14030
