AE111L-DLMDKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )UKP

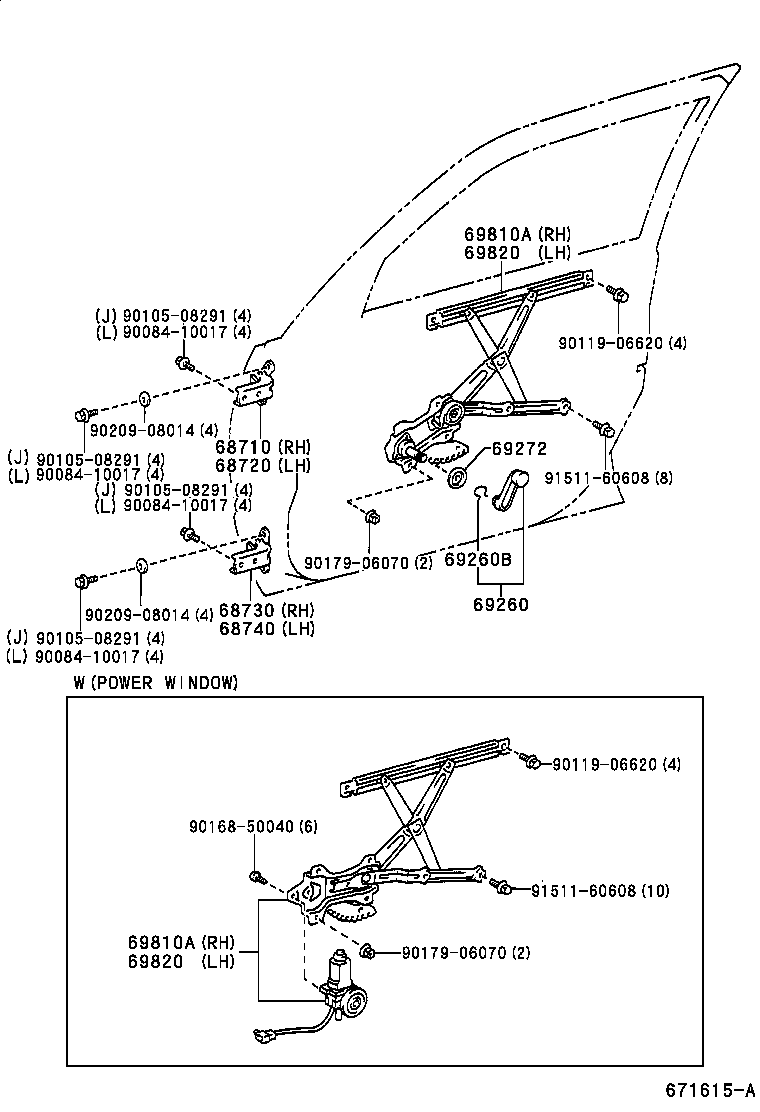

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69810A 69810A 69820 69820 9008410017 9008410017 9008410017 9008410017 9010508291 9010508291 9010508291 9010508291 9011906620 9011906620 9016850040 9017906070 9017906070 9020908014 9020908014 9151160608 9151160608
Part # Description Qty Price
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-02020B0

AE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA

SHADOW GRAY,TRIM12

 2
69260-02020A0

AE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA

IVORY,TRIM0#

 2
69260-02020B1

AE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA

MD.CHARCOAL,TRIM10

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-02020

AE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA

 2
Common parts
90084-10017
90105-08291
90119-06620
90168-50040
90179-06070
90209-08014
91511-60608
