AE111L-ALMDKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4AFE..MTM

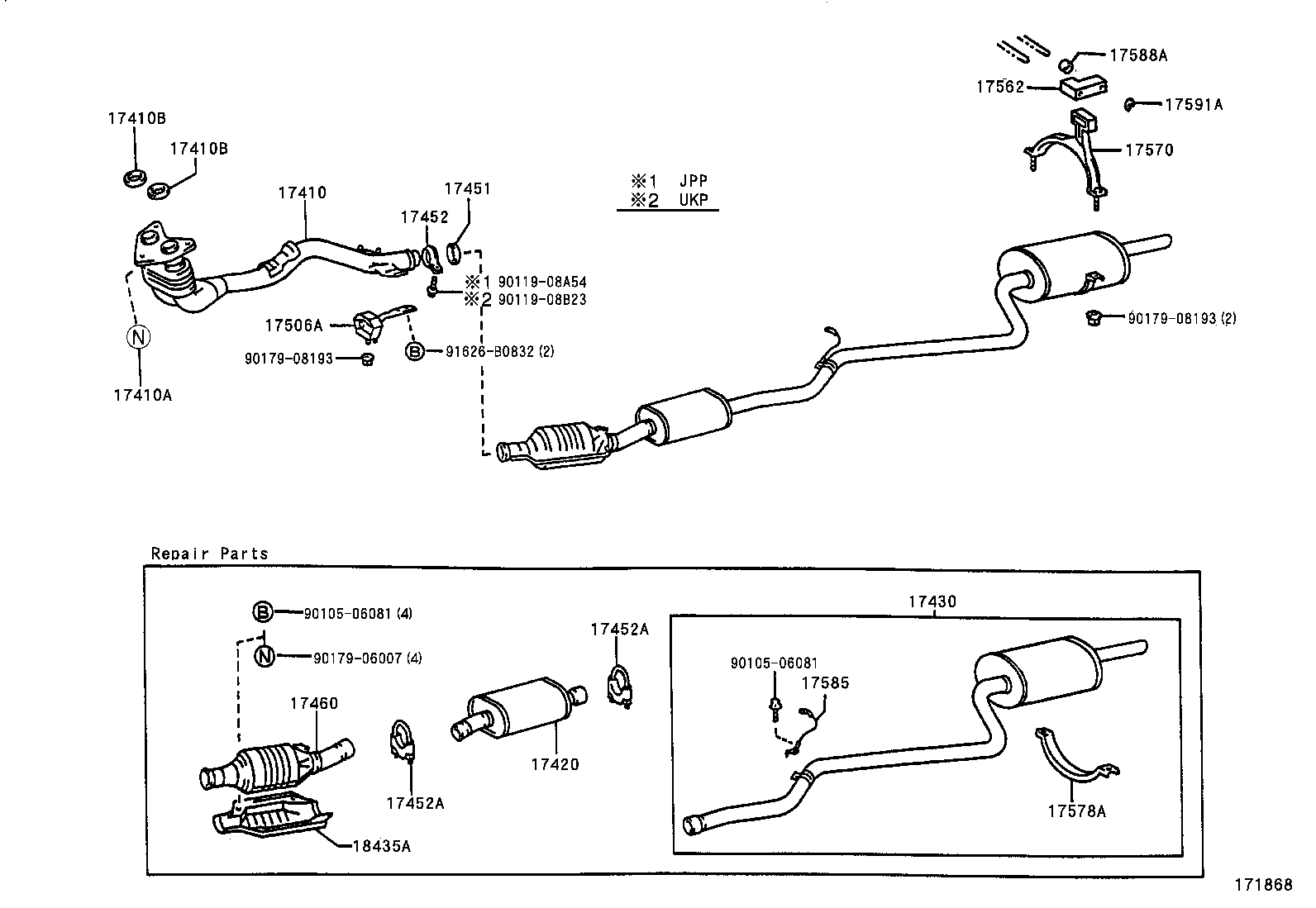

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17430 17451 17452 17452A 17452A 17460 17506A 17562 17570 17578A 17585 17588A 17591A 18435A 9010506081 9010506081 9011908A54 9011908B23 9017906007 9017908193 9017908193 91626B0832
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A480

4AFE..AE111..JPP..MTM

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE..AE111..JPP..MTM

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

4AFE..AE111..JPP..MTM

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

4AFE..AE111..JPP..MTM

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16720

4AFE..AE111..JPP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1D010

4AFE..AE111..JPP..LB

 1
17451 - GASKET, EXHAUST PIPE
90917-06084

4AFE..AE111..JPP

 1
17452 - CLAMP, EXHAUST PIPE
90461-15016

4AFE..AE111..JPP

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

4AFE..AE111..JPP

REAR

 1
17452-16160

4AFE..AE111..JPP

FRONT

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

4AFE..AE111..JPP

REAR

 1
17452-16160

4AFE..AE111..JPP

FRONT

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-16170

4AFE..AE111..JPP

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-11100

4AFE,4EFE..AE111,EE111..JPP

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-16240

4AFE,2CE,4EFE..AE111,CE110,EE111..JPP

 1
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-16040

4AFE..AE111..JPP;2CE,4EFE..CE110,EE111..HB

 1
17578A - CLAMP, MUFFLER
17578-11030

4AFE..AE111..JPP;2CE,4EFE..CE110,EE111..HB

 1
17585 - HANGER, EXHAUST PIPE
17585-16060

4AFE,4EFE..AE111,EE111..JPP

 1
17588A - SPACER, EXHAUST PIPE HANGER
17588-16020

4AFE,2CE,4EFE..AE111,CE110,EE111..JPP

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-16020

4AFE,2CE,4EFE..AE111,CE110,EE111..JPP

 2
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-16170

4AFE..AE111..JPP

 1
18435-20020

4AFE..AE111..JPP..RHD;4AFE..AE111..JPP..LHD..LB..5F;4AFE..AE111..JPP..LHD..(4FC,6F)

 1
Common parts
90105-06081
90119-08A54
90119-08B23
90179-06007
90179-08193
91626-B0832
