AE111L-AGMNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )HB

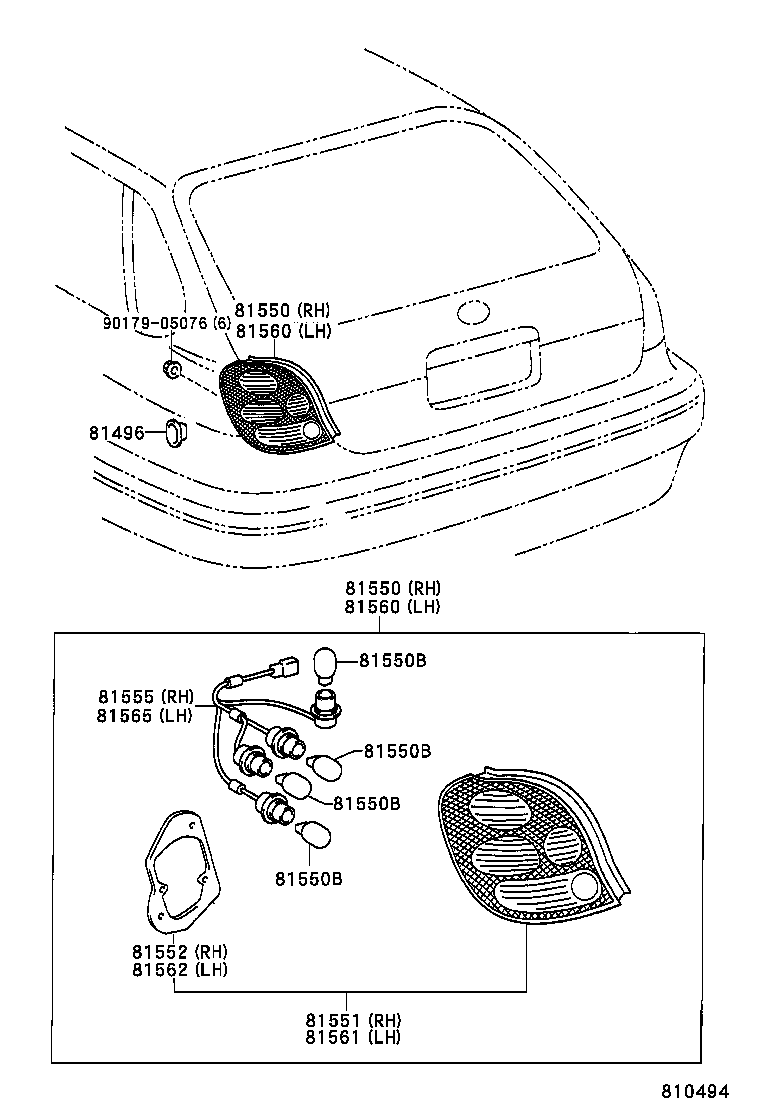

Click highlighted areas on diagram

diagram 81496 81550 81550 81550B 81550B 81550B 81550B 81551 81552 81555 81560 81560 81561 81562 81565 9017905076
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-12010

AE111,CE110,EE111..JPP

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-1E130

AE111,CE110,EE111..LHD..HB

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-1E130

AE111,CE110,EE111..LHD..HB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE111,CE110,EE111..JPP

12V 21/5W

 2
99132-11210

AE111,CE110,EE111..HB

12V 21W

 5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE111,CE110,EE111..JPP

12V 21/5W

 2
99132-11210

AE111,CE110,EE111..HB

12V 21W

 5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE111,CE110,EE111..JPP

12V 21/5W

 2
99132-11210

AE111,CE110,EE111..HB

12V 21W

 5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE111,CE110,EE111..JPP

12V 21/5W

 2
99132-11210

AE111,CE110,EE111..HB

12V 21W

 5
81551 - LENS, REAR COMBINATION LAMP, RH
81551-1E130

AE111,CE110,EE111..LHD..HB

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-1E130

AE111,CE110,EE111..HB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-1E130

AE111,CE110,EE111..LHD..HB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-1E090

AE111,CE110,EE111..LHD..HB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-1E090

AE111,CE110,EE111..LHD..HB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-1E090

AE111,CE110,EE111..LHD..HB

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-1E130

AE111,CE110,EE111..HB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-1E030

AE111,CE110,EE111..LHD..HB

 1
Common parts
90179-05076
