AE111L-AGMNKW (1997)
Toyota Corolla Hb/Lb

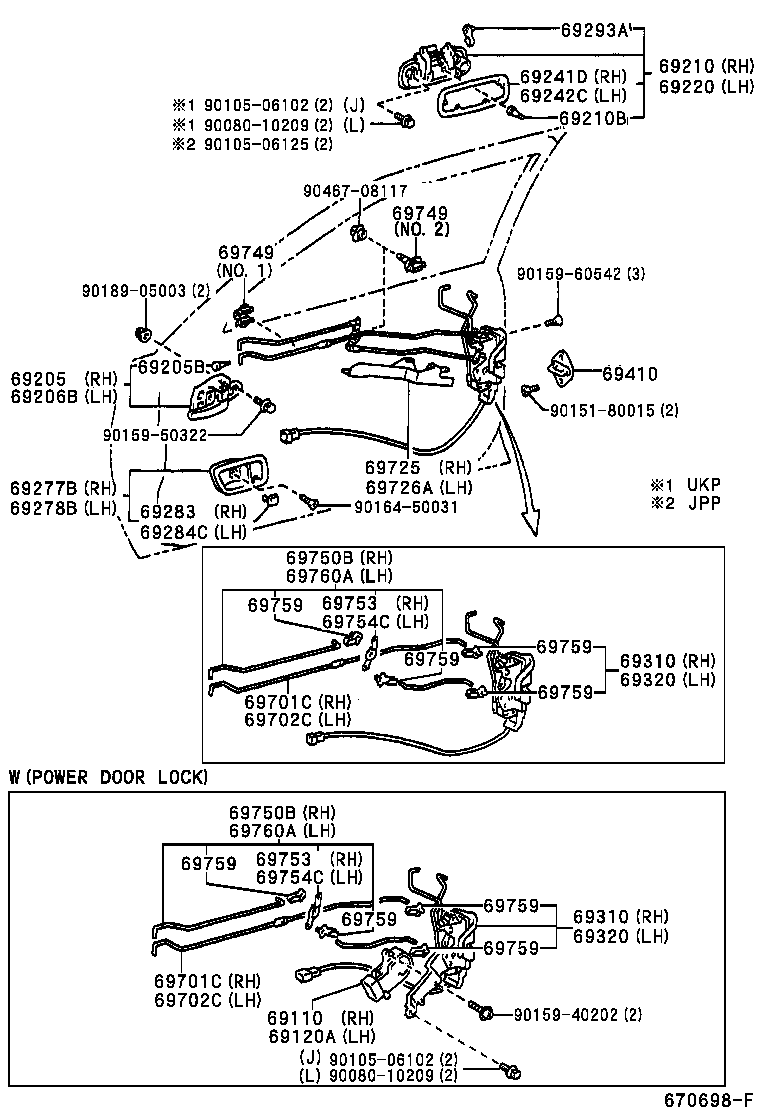

ILLUST NO. 1 OF 2(9704- )HB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-12020 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-12020 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30120A1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 69205-30120B1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 69205-30120B4 |
AE111,CE110,EE111..HB..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-30120B4 |
AE111,CE110,EE111..HB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AE111,CE110,EE111..HB |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30120A1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 69206-30120B4 |
AE111,CE110,EE111..HB..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 69206-30120B1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 69206-30120B4 |
AE111,CE110,EE111..HB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12290E0 |
EE111..LHD..LUNA;AE111,CE110..LUNA;EE111..RHD..(G6,LUNA) APRICOT M.M.,4P0 |
1 | ||
| 69210-12290K0 |
AE111,CE110,EE111..G6,LUNA LAVENDER ME.,932 |
1 | ||
| 69210-12290C0 |
AE111,CE110,EE111..G6,LUNA BLACK ME,205 |
1 | ||
| 69210-12290A0 |
AE111,CE110,EE111..LUNA SUPER WHITE 2,040 |
1 | ||
| 69210-12290K0 |
AE111,CE110,EE111..LUNA LAVENDER ME.,932 |
1 | ||
| 69210-12290E0 |
AE111,CE110,EE111..G6,LUNA APRICOT M.M.,4P0 |
1 | ||
| 69210-12290J3 |
AE111,CE110,EE111..LUNA DK.BLUE,8M4 |
1 | ||
| 69210-12290A0 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) SUPER WHITE 2,040 |
1 | ||
| 69210-12290D2 |
AE111,CE110,EE111..G6,LUNA RED,3M7 |
1 | ||
| 69210-12290B3 |
AE111,CE110,EE111..LUNA SILVER ME,199 |
1 | ||
| 69210-12290J2 |
AE111,CE110,EE111..G6,LUNA BLUE M.M.,8L5 |
1 | ||
| 69210-12290D4 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) SUPER RED II,3E5 |
1 | ||
| 69210-12290D1 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) CORAL REEF M.M.,3L6 |
1 | ||
| 69210-12290C0 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) BLACK ME,205 |
1 | ||
| 69210-12290D1 |
AE111,CE110,EE111..LUNA CORAL REEF M.M.,3L6 |
1 | ||
| 69210-12290R0 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) DK.BLUE M.M.,8L3 |
1 | ||
| 69210-12290J2 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) BLUE M.M.,8L5 |
1 | ||
| 69210-12290J3 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) DK.BLUE,8M4 |
1 | ||
| 69210-12290K1 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) VIOLET M.M.,944 |
1 | ||
| 69210-12290B3 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) SILVER ME,199 |
1 | ||
| 69210-12290G1 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) GREEN M.M.,6P5 |
1 | ||
| 69210-12290G1 |
AE111,CE110,EE111..LUNA GREEN M.M.,6P5 |
1 | ||
| 69210-12290J7 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) BLUE M.M.,8M9 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE111,CE110,EE111..JPP |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12290K0 |
AE111,CE110,EE111..LUNA LAVENDER ME.,932 |
1 | ||
| 69220-12290J2 |
AE111,CE110,EE111..G6,LUNA BLUE M.M.,8L5 |
1 | ||
| 69220-12290E0 |
EE111..LHD..LUNA;AE111,CE110..LUNA;EE111..RHD..(G6,LUNA) APRICOT M.M.,4P0 |
1 | ||
| 69220-12290C0 |
AE111,CE110,EE111..G6,LUNA BLACK ME,205 |
1 | ||
| 69220-12290J3 |
AE111,CE110,EE111..LUNA DK.BLUE,8M4 |
1 | ||
| 69220-12290D1 |
AE111,CE110,EE111..LUNA CORAL REEF M.M.,3L6 |
1 | ||
| 69220-12290A0 |
AE111,CE110,EE111..LUNA SUPER WHITE 2,040 |
1 | ||
| 69220-12290A0 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) SUPER WHITE 2,040 |
1 | ||
| 69220-12290D2 |
AE111,CE110,EE111..G6,LUNA RED,3M7 |
1 | ||
| 69220-12290K0 |
AE111,CE110,EE111..G6,LUNA LAVENDER ME.,932 |
1 | ||
| 69220-12290B3 |
AE111,CE110,EE111..LUNA SILVER ME,199 |
1 | ||
| 69220-12290G1 |
AE111,CE110,EE111..LUNA GREEN M.M.,6P5 |
1 | ||
| 69220-12290C0 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) BLACK ME,205 |
1 | ||
| 69220-12290E0 |
AE111,CE110,EE111..G6,LUNA APRICOT M.M.,4P0 |
1 | ||
| 69220-12290J7 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) BLUE M.M.,8M9 |
1 | ||
| 69220-12290J3 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) DK.BLUE,8M4 |
1 | ||
| 69220-12290J2 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) BLUE M.M.,8L5 |
1 | ||
| 69220-12290B3 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) SILVER ME,199 |
1 | ||
| 69220-12290D4 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) SUPER RED II,3E5 |
1 | ||
| 69220-12290D1 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) CORAL REEF M.M.,3L6 |
1 | ||
| 69220-12290R0 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) DK.BLUE M.M.,8L3 |
1 | ||
| 69220-12290K1 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) VIOLET M.M.,944 |
1 | ||
| 69220-12290G1 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) GREEN M.M.,6P5 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
AE111,CE110,EE111..JPP |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
AE111,CE110,EE111..JPP |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-30150B3 |
AE111,CE110,EE111..HB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 69277-30150B3 |
AE111,CE110,EE111..HB..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 69277-30150A0 |
AE111,CE110,EE111..HB..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 69277-30150B1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-30080B3 |
AE111,CE110,EE111..HB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 69278-30080B1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 69278-30080A0 |
AE111,CE110,EE111..HB..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 69278-30080B3 |
AE111,CE110,EE111..HB..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 69283-30040A1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 69283-30040B4 |
AE111,CE110,EE111..HB..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 69283-30040B4 |
AE111,CE110,EE111..HB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040A1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) IVORY,TRIM0# |
1 | ||
| 69284-30040B1 |
AE111,CE110,EE111..HB..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
1 | ||
| 69284-30040B4 |
AE111,CE110,EE111..HB..(LUNA,STD,TERRA) MD.CHARCOAL,TRIM1# |
1 | ||
| 69284-30040B4 |
AE111,CE110,EE111..HB..(LUNA,TERRA) MD.CHARCOAL,TRIM10 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AE111,CE110,EE111..JPP RH |
1 | ||
| 69293-12040 |
AE111,CE110,EE111..JPP LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12630 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(POWER DOOR LOCK) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12630 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(POWER DOOR LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12630 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(POWER DOOR LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12630 |
AE111,CE110,EE111..LHD..HB..(G6,LUNA,TERRA) W(POWER DOOR LOCK) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE111,CE110,EE111..JPP |
2 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69701-12010 |
AE111,CE110,EE111..HB |
1 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69701-12010 |
AE111,CE110,EE111..HB |
1 | ||
| 69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69702-12010 |
AE111,CE110,EE111..HB |
1 | ||
| 69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69702-12010 |
AE111,CE110,EE111..HB |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-12020 |
AE111,CE110,EE111..HB |
1 | ||
| 69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH | ||||
| 69726-12020 |
AE111,CE110,EE111..HB |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
AE111,CE110,EE111..HB NO.2 |
2 | ||
| 69749-20040 |
AE111,CE110,EE111..HB NO.1 |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
AE111,CE110,EE111..HB NO.2 |
2 | ||
| 69749-20040 |
AE111,CE110,EE111..HB NO.1 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-12080 |
AE111,CE110,EE111..HB |
1 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-12080 |
AE111,CE110,EE111..HB |
1 | ||
| 69753 - BELLCRANK, DOOR LOCK CONTROL, RH | ||||
| 69753-12110 |
AE111,CE110,EE111..HB |
1 | ||
| 69753 - BELLCRANK, DOOR LOCK CONTROL, RH | ||||
| 69753-12110 |
AE111,CE110,EE111..HB |
1 | ||
| 69754C - BELLCRANK, DOOR LOCK CONTROL, LH | ||||
| 69754-12040 |
AE111,CE110,EE111..HB |
1 | ||
| 69754-12040 |
AE111,CE110,EE111..HB |
2 | ||
| 69754C - BELLCRANK, DOOR LOCK CONTROL, LH | ||||
| 69754-12040 |
AE111,CE110,EE111..HB |
1 | ||
| 69754-12040 |
AE111,CE110,EE111..HB |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
AE111,CE110,EE111..HB GRAY |
2 | ||
| 69759-24050 |
AE111,CE110,EE111..HB GREEN |
2 | ||
| 69759-24080 |
AE111,CE110,EE111..HB YELLOW |
2 | ||
| 69759-33030 |
AE111,CE110,EE111..HB ORANGE |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-12080 |
AE111,CE110,EE111..HB |
1 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-12080 |
AE111,CE110,EE111..HB |
1 | ||
| Common parts | ||||
| 90080-10209 | ||||
| 90105-06102 | ||||
| 90105-06125 | ||||
| 90151-80015 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90159-60542 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| 90467-08117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
