AE111L-AGMNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )HB

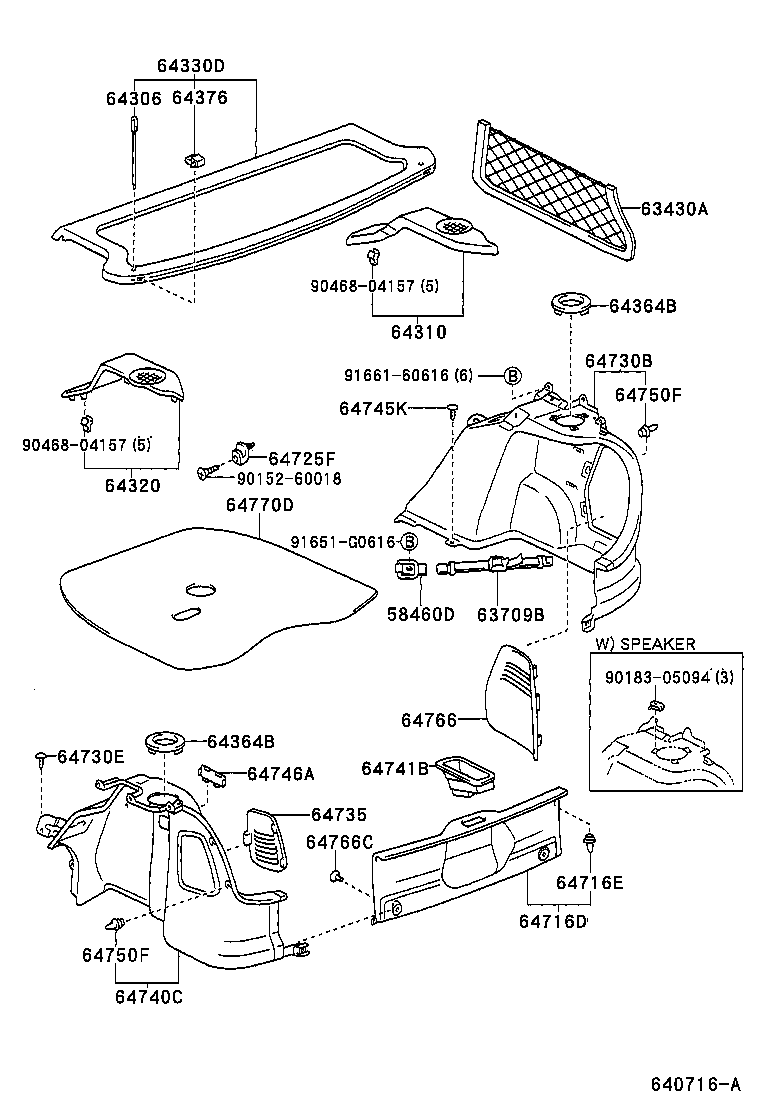

Click highlighted areas on diagram

diagram 58460D 63430A 63709B 64306 64310 64320 64330D 64364B 64364B 64376 64716D 64716E 64725F 64730B 64730E 64735 64740C 64741B 64745K 64746A 64750F 64750F 64766 64766C 64770D 9015260018 9018305094 9046804157 9046804157 91651G0616 9166160616
Part # Description Qty Price
63709B - BAND SUB-ASSY, ROOM RACK
63709-12030C0

AE111,CE110,EE111..HB..(LUNA,TERRA)

BLACK,TRIM0#,1#

 1
63709-12030C0

AE111,CE110,EE111..HB..(LUNA,TERRA)

BLACK,TRIM0#,10,12

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-12090

AE111,CE110,EE111..HB

 2
64310 - BRACKET, PACKAGE TRAY TRIM, RH
64310-12060B1

AE111,CE110,EE111..HB..(LUNA,STD,TERRA)

MD.CHARCOAL,TRIM1#

 1
64310-12060B1

AE111,CE110,EE111..HB..(LUNA,TERRA)

MD.CHARCOAL,TRIM10

 1
64310-12060B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM12

 1
64310-12060A0

AE111,CE110,EE111..HB..(LUNA,TERRA)

IVORY,TRIM0#

 1
64320 - BRACKET, PACKAGE TRAY TRIM, LH
64320-12060B1

AE111,CE110,EE111..HB..(LUNA,STD,TERRA)

MD.CHARCOAL,TRIM1#

 1
64320-12060B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM12

 1
64320-12060A0

AE111,CE110,EE111..HB..(LUNA,TERRA)

IVORY,TRIM0#

 1
64320-12060B1

AE111,CE110,EE111..HB..(LUNA,TERRA)

MD.CHARCOAL,TRIM10

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-1E020B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM12

 1
64330-1E020B1

AE111,CE110,EE111..HB..(LUNA,TERRA)

DK. CHARCOAL,TRIM10

 1
64330-1E020B1

AE111,CE110,EE111..HB..(LUNA,STD,TERRA)

DK. CHARCOAL,TRIM1#

 1
64330-1E020A0

AE111,CE110,EE111..HB..(LUNA,TERRA)

IVORY,TRIM0#

 1
64364B - COVER, REAR SPEAKER GRILLE, NO.1
64364-12040

AE111,CE110,EE111..JPP

 2
64364B - COVER, REAR SPEAKER GRILLE, NO.1
64364-12040

AE111,CE110,EE111..JPP

 2
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-12020

AE111,CE110,EE111..JPP

 2
64716D - COVER, DECK TRIM, REAR
64716-12290B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
64716-12290B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-10161

AE111,CE110,EE111..HB

 4
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-12300B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
64730-12300B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-08104P0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 2
90467-08104P0

AE111..HB..TERRA;AE111..LHD..HB..LUNA;CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 2
64735 - COVER, DECK TRIM SIDE SERVICE HOLE
64735-12060B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
64735-12060B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-12300B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
64740-12300B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
64745K - CLIP(FOR REAR COMBINATUON LAMP SERVICE COVER)
90467-05021P0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 2
90467-05021B6

AE111,CE110,EE111..HB..(LUNA,TERRA)

MD.CHARCOAL,TRIM1#

 2
90467-05021B6

AE111,CE110,EE111..HB..(LUNA,TERRA)

MD.CHARCOAL,TRIM10,12

 2
90467-05021A1

AE111,CE110,EE111..HB..(LUNA,TERRA)

IVORY,TRIM0#

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

AE111,CE110,EE111..HB

 6
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

AE111,CE110,EE111..HB

 6
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-12090B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,1#

 1
64766-12090B0

AE111,CE110,EE111..HB..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 1
64766C - CLIP(FOR QUARTER TRIM JACK COVER)
90467-05091B1

AE111,CE110,EE111..JPP..(LUNA,TERRA)

SHADOW GRAY,TRIM0#,10,12

 2
90467-05091B1

AE111,CE110,EE111..LUNA,TERRA

SHADOW GRAY,TRIM0#,1#

 2
64770D - COVER ASSY, SPARE WHEEL
64770-12230

EE111..HB..3FC..LUNA;AE111,CE110..HB..TERRA;EE111..HB..(G6,STD,TERRA);AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA

W(TEMPORARY TIRE)

 1
64770-12230

AE111,CE110,EE111..HB

W(TEMPORARY TIRE)

 1
Common parts
90152-60018
90183-05094
90468-04157
91651-G0616
91661-60616
