AE102L-ALMVKW (1992)

Toyota Corolla Hb/Lb

Production Nov 1992 - May 1995
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

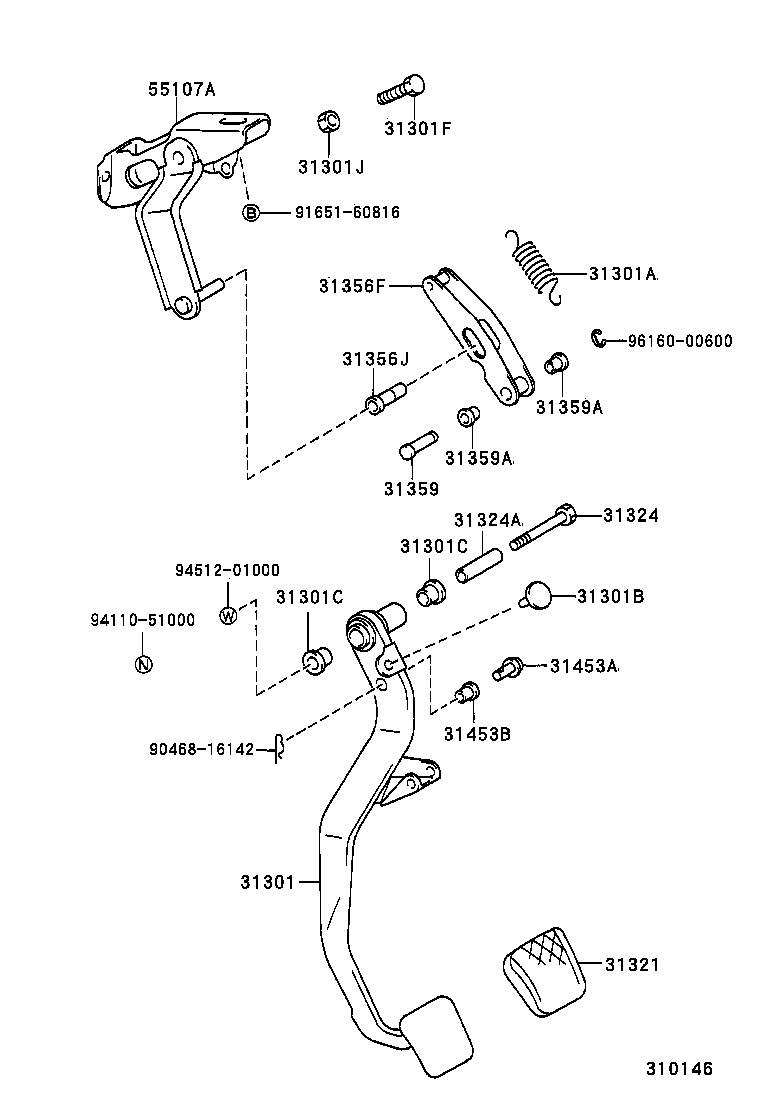

ILLUST NO. 1 OF 2(9211-9305)AE102

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31356F 31356J 31359 31359A 31359A 31453A 31453B 55107A 9046816142 9165160816 9411051000 9451201000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12400

AE10#,CE100,EE10#..LHD..5F

 1
31310-12050

AE102..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06007

AE10#,CE100,EE10#..LHD..5F

 1
90506-23045

AE102..LHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AE10#,CE100,EE10#..LHD..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE10#,CE100,EE10#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE10#,CE100,EE10#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE10#,CE100,EE10#..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

AE10#,CE100,EE10#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-12040

AE10#,CE100,EE10#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AE102..LHD

 1
90101-10015

AE10#,CE100,EE10#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE10#,CE100,EE10#..5F

 1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356-12020

AE102..LHD

 1
31356J - COLLAR(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1)
90386-08055

AE102

 1
31359A - BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)
90386-08002

AE102

 2
31359A - BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)
90386-08002

AE102

 2
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-12010

AE10#,CE100,EE10#..5F

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AE10#,CE100,EE10#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12190

AE102..LHD

 1
55107-12160

AE10#,CE100,EE10#..LHD..5F

 1
Common parts
90468-16142
91651-60816
94110-51000
94512-01000
96160-00600

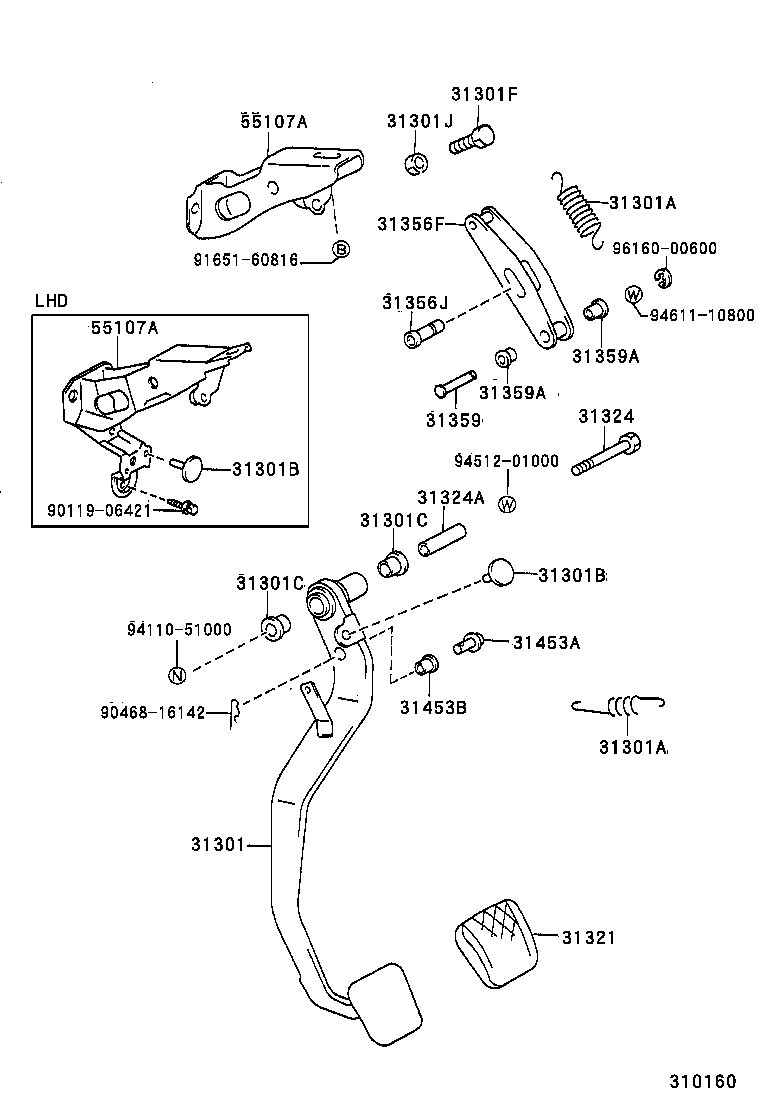

ILLUST NO. 1 OF 2(9205-9305)AE101,CE100,EE10#..5F ; (9305- )5F

Click highlighted areas on diagram

diagram 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31356F 31356J 31359 31359A 31359A 31453A 31453B 55107A 55107A 9011906421 9046816142 9165160816 9411051000 9451201000 9461110800 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12400

AE10#,CE100,EE10#..LHD..5F

 1
31310-12050

AE102..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06007

AE10#,CE100,EE10#..LHD..5F

 1
90506-23045

AE102..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06007

AE10#,CE100,EE10#..LHD..5F

 1
90506-23045

AE102..LHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AE10#,CE100,EE10#..LHD..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AE10#,CE100,EE10#..LHD..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE10#,CE100,EE10#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AE10#,CE100,EE10#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE10#,CE100,EE10#..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

AE10#,CE100,EE10#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-12040

AE10#,CE100,EE10#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AE102..LHD

 1
90101-10015

AE10#,CE100,EE10#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE10#,CE100,EE10#..5F

 1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356-12020

AE102..LHD

 1
31356J - COLLAR(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1)
90386-08055

AE102

 1
31359A - BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)
90386-08002

AE102

 2
31359A - BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)
90386-08002

AE102

 2
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-12010

AE10#,CE100,EE10#..5F

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AE10#,CE100,EE10#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12190

AE102..LHD

 1
55107-12160

AE10#,CE100,EE10#..LHD..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12190

AE102..LHD

 1
55107-12160

AE10#,CE100,EE10#..LHD..5F

 1
Common parts
90119-06421
90468-16142
91651-60816
94110-51000
94512-01000
94611-10800
96160-00600
