AE101R-ALPNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

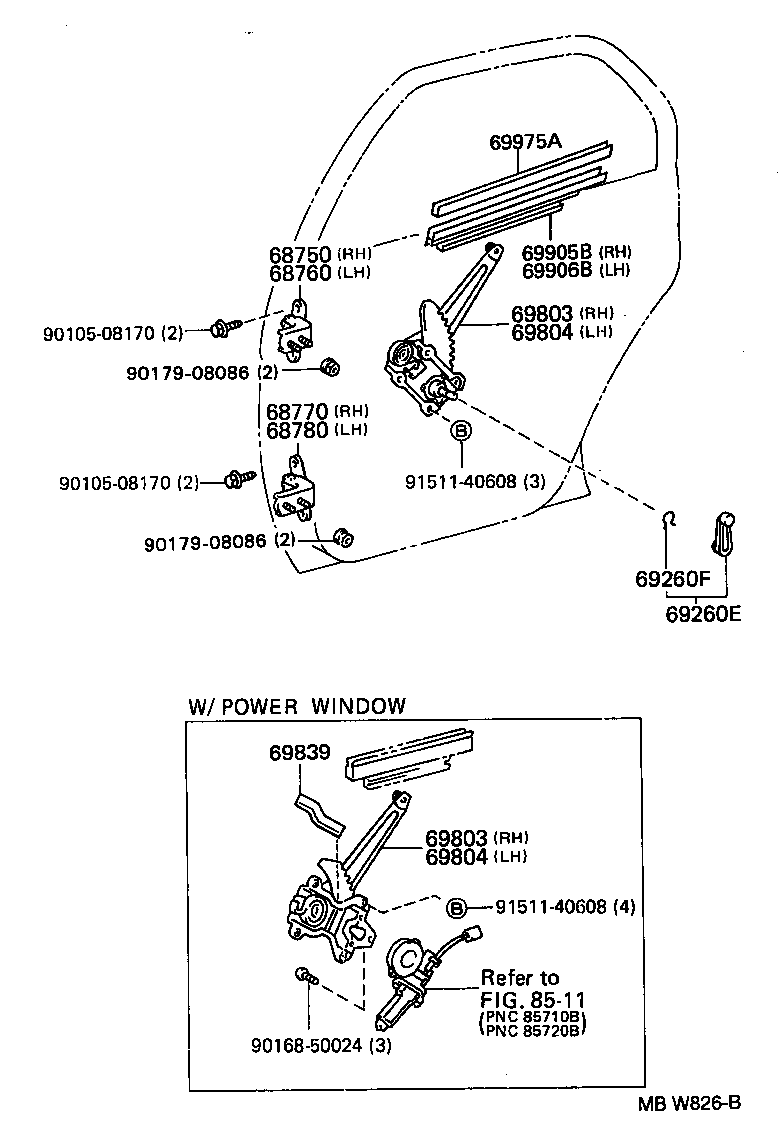

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69803 69803 69804 69804 69839 69905B 69906B 69975A 8511 9010508170 9010508170 9016850024 9017908086 9017908086 9151140608 9151140608
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-12070

AE10#,CE100,EE10#..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-12070

AE10#,CE100,EE10#..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12080

AE10#,CE100,EE10#..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12070

AE10#,CE100,EE10#..5D

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1209003

AE10#,CE100,EE10#..5D

SHADOW GRAY,TRIM1#

 2
69260-12090J0

AE101,CE100,EE10#..5D

DARK BLUE,TRIM8#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01005

AE10#,CE100,EE10#..5D

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12100

AE10#,EE101..LB

W(*PW)

 1
69830-12250

AE10#,CE100,EE10#..LB

 1
69803-12100

CE100..LB..LHD;AE10#,EE101..LB

W(*PW)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12100

AE10#,EE101..LB

W(*PW)

 1
69830-12250

AE10#,CE100,EE10#..LB

 1
69803-12100

CE100..LB..LHD;AE10#,EE101..LB

W(*PW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12100

AE10#,EE101..LB

W(*PW)

 1
69840-12250

AE10#,CE100,EE10#..LB

 1
69804-12100

CE100..LB..LHD;AE10#,EE101..LB

W(*PW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12100

AE10#,EE101..LB

W(*PW)

 1
69840-12250

AE10#,CE100,EE10#..LB

 1
69804-12100

CE100..LB..LHD;AE10#,EE101..LB

W(*PW)

 1
69839 - PAD, REAR DOOR WINDOW REGULATOR
69839-12010

AE10#..5D;EE101..LB;EE101..HB..5D..LHD

 4
69839-12010

CE100..LB..LHD;AE10#,EE101..LB

 4
69839-12010

AE10#,EE101..LB

 4
Common parts
90105-08170
90168-50024
90179-08086
91511-40608
Linked diagrams
8511
