AE101R-ALMNKW (1992)
Toyota Corolla Hb/Lb
ILLUST NO. 4 OF 9(9205- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-12050 |
AE10#,CE100,EE10# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1A160 |
AE10#..RHD |
1 | ||
| 82141-1A161 |
AE10#..RHD |
1 | ||
| 82141-1A162 |
AE10#..RHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 82715-12160 | ||||
| 82715-12260 | ||||
| 90119-06053 | ||||
| 90159-60080 | ||||
| 91611-60612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

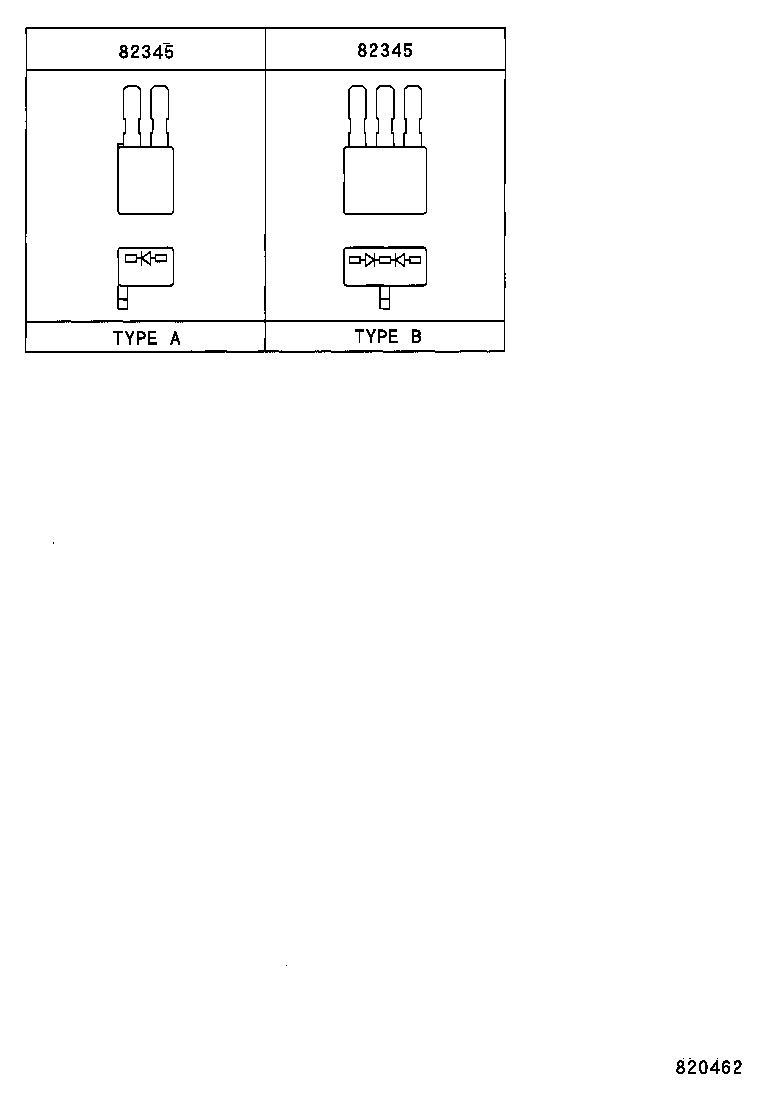

ILLUST NO. 8 OF 9(9205- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION |
1 | ||

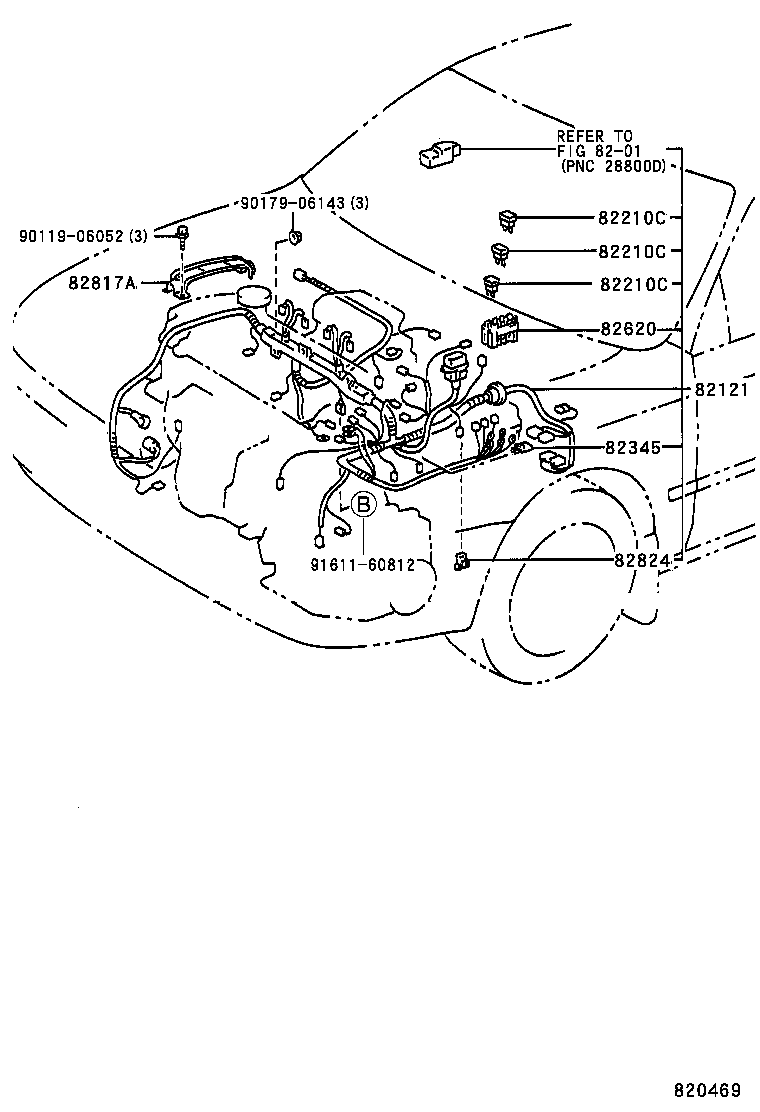

ILLUST NO. 2 OF 9(9205- )AE10#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1K051 |
AE10#..RHD..5F |
1 | ||
| 82121-1K050 |
AE101..RHD..5F |
1 | ||
| 82121-1L080 |
AE10#..RHD..5F |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08246 |
AE10#,EE10# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE10#,CE100,EE101 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#,EE10# 40A,TERM.:MALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08246 |
AE10#,EE10# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE10#,CE100,EE101 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#,EE10# 40A,TERM.:MALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08246 |
AE10#,EE10# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE10#,CE100,EE101 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#,EE10# 40A,TERM.:MALE,GRN |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12080 |
AE10#,EE101 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AE10# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 7 OF 9(9205- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10#,EE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07299 |
AE10# MANIFOLD |
1 | ||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10#,EE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07299 |
AE10# MANIFOLD |
1 | ||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10#,EE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07299 |
AE10# MANIFOLD |
1 | ||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
AE10#,EE10# FENDER-T/M |
1 | ||
| 90980-07206 |
AE10# TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07299 |
AE10# MANIFOLD |
1 | ||
| 90980-07351 |
AE10# FENDER-T/M |
1 | ||
| Common parts | ||||
| 90119-06316 | ||||
| 90119-06390 | ||||
| 91651-40816 | ||||
ILLUST NO. 9 OF 9(9205- )
REPAIR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12050 |
AE10#,EE10# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12050 |
AE10#,EE10# |
1 | ||

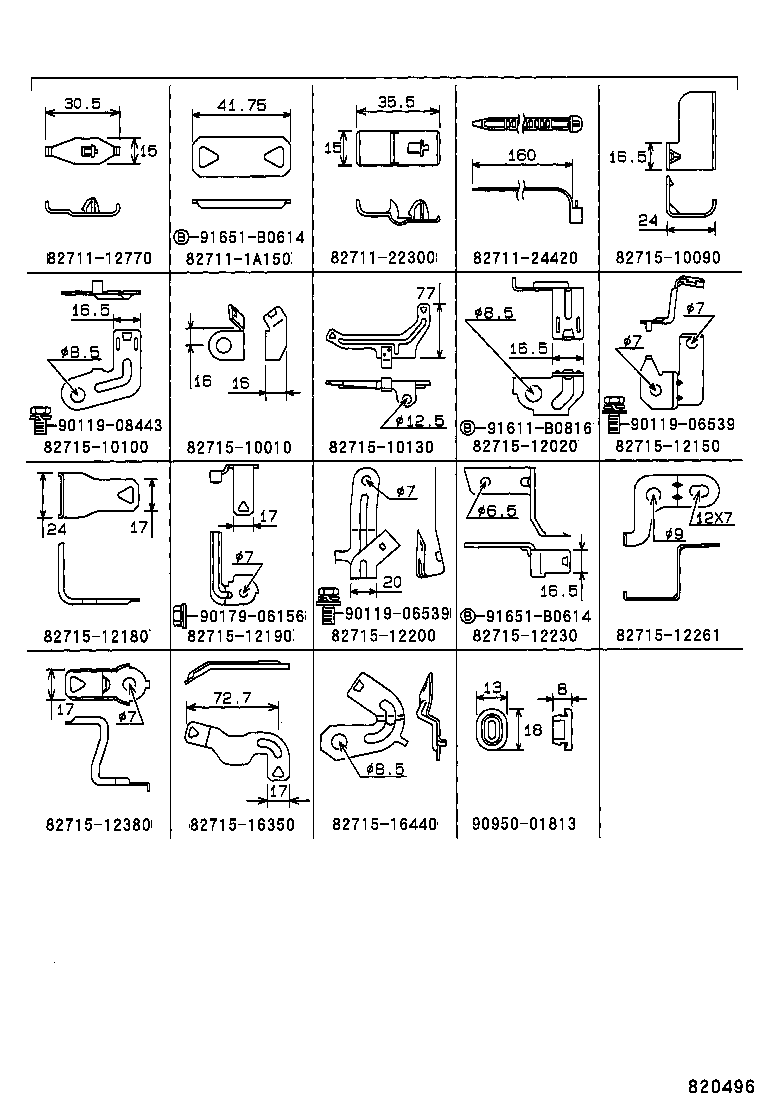

ILLUST NO. 3 OF 9(9205- )
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-1A150 | ||||
| 82711-22300 | ||||
| 82711-24420 | ||||
| 82715-10010 | ||||
| 82715-10090 | ||||
| 82715-10100 | ||||
| 82715-10130 | ||||
| 82715-12020 | ||||
| 82715-12150 | ||||
| 82715-12180 | ||||
| 82715-12190 | ||||
| 82715-12200 | ||||
| 82715-12230 | ||||
| 82715-12261 | ||||
| 82715-12380 | ||||
| 82715-16350 | ||||
| 82715-16440 | ||||
| 90119-06539 | ||||
| 90119-08443 | ||||
| 90179-06156 | ||||
| 90950-01813 | ||||
| 91611-B0816 | ||||
| 91651-B0614 | ||||

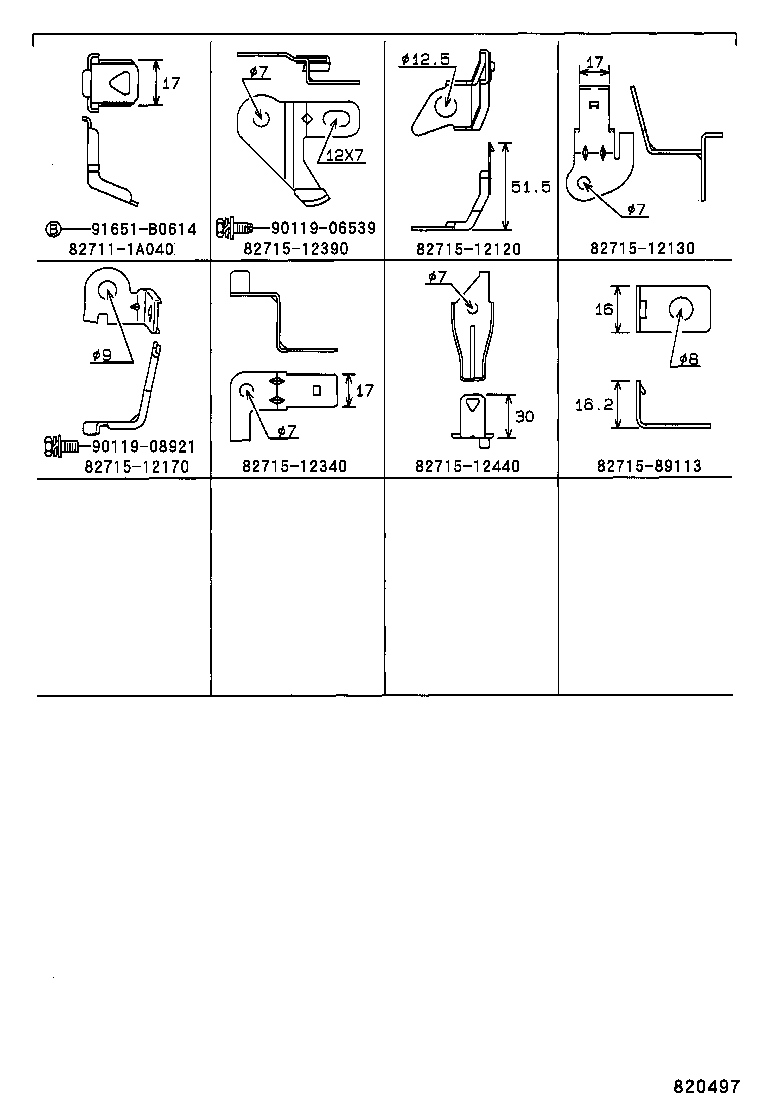

ILLUST NO. 3 OF 9(9205- )
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A040 | ||||
| 82715-12120 | ||||
| 82715-12130 | ||||
| 82715-12170 | ||||
| 82715-12340 | ||||
| 82715-12390 | ||||
| 82715-12440 | ||||
| 82715-89113 | ||||
| 90119-06539 | ||||
| 90119-08921 | ||||
| 91651-B0614 | ||||

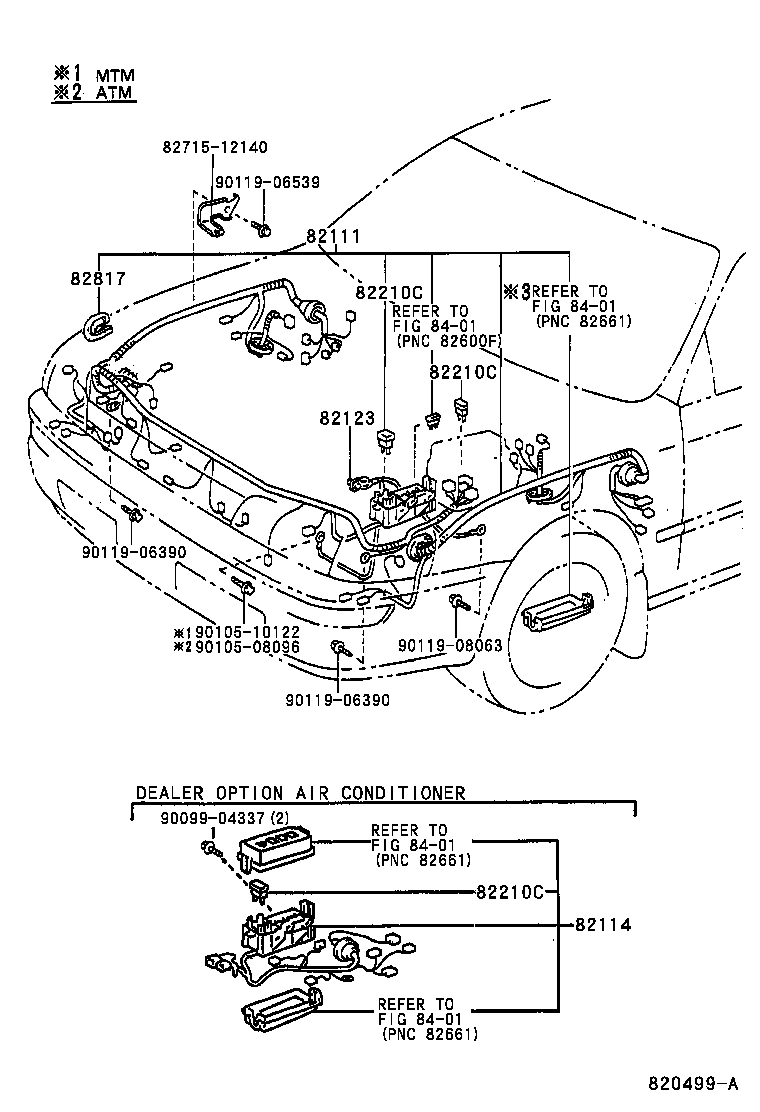

ILLUST NO. 1 OF 9(9205- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1E580 |
AE10#,EE101..RHD W(ABS) |
1 | ||
| 82111-1H060 |
AE10#,EE101..RHD W(ABS) |
1 | ||
| 82111-1E570 |
AE10#,EE101..RHD |
1 | ||
| 82111-1E571 |
AE10#,EE101..RHD |
1 | ||
| 82111-1H061 |
AE10#,EE101..RHD W(ABS) |
1 | ||
| 82111-1H062 |
AE10#,EE101..RHD W(ABS) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 88605-1H400 |
AE10#..RHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12230 |
AE10#,EE10#..4FC,5F |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08246 |
AE10#,EE10# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE10#,CE100,EE101 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#,EE10# 40A,TERM.:MALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08246 |
AE10#,EE10# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE10#,CE100,EE101 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#,EE10# 40A,TERM.:MALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08246 |
AE10#,EE10# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE10#,CE100,EE101 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#,EE10# 40A,TERM.:MALE,GRN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A090 |
AE10#,CE100,EE10# |
2 | ||
| Common parts | ||||
| 82715-12140 | ||||
| 90099-04337 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 90119-08063 | ||||
| Linked diagrams | ||||
| 8401 | ||||

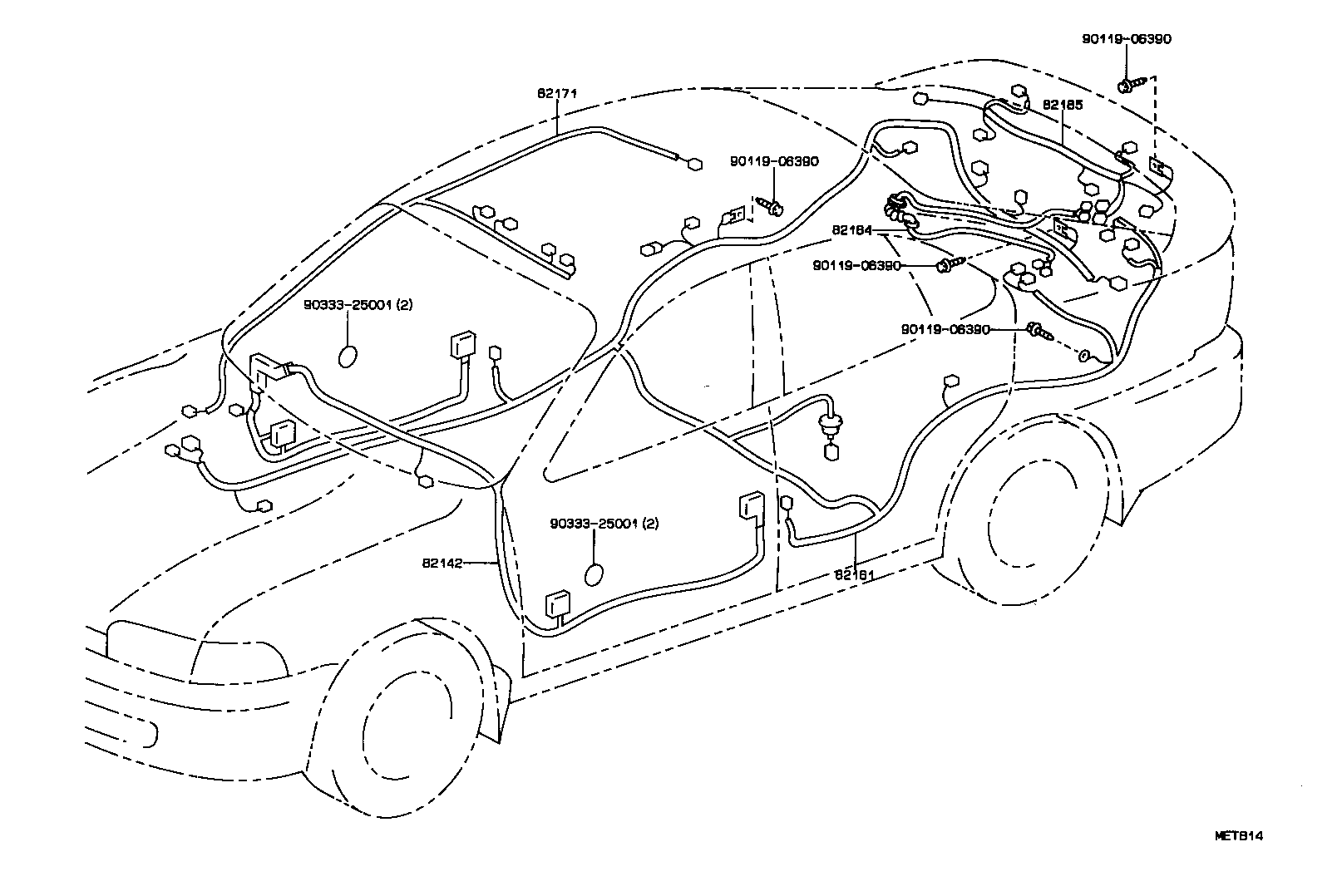

ILLUST NO. 6 OF 9(9205- )LB..RHD
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12060 |
AE10#,CE100,EE101..5D..RHD W(*EL) |
1 | ||
| 82142-12010 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82142-12061 |
AE10#..LB..RHD;CE100,EE101..5D..RHD W(*EL) |
1 | ||
| 82142-12270 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82142-12050 |
AE10#,CE100,EE101..RHD W(SUN ROOF) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1K350 |
AE10#,CE100,EE101..LB..RHD W(ABS) |
1 | ||
| 82161-1K341 |
AE10#,CE100,EE101..LB..RHD |
1 | ||
| 82161-1K351 |
AE10#,CE100,EE101..LB..RHD W(ABS) |
1 | ||
| 82161-1K340 |
AE10#,CE100,EE101..LB..RHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12460 |
AE10#,CE100,EE101..LB..RHD |
1 | ||
| 82171-12510 |
AE10#,CE100,EE101..LB..RHD W(MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12430 |
AE10#,CE100,EE10#..LB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12470 |
AE10#,CE100,EE101..LB..RHD |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90333-25001 | ||||

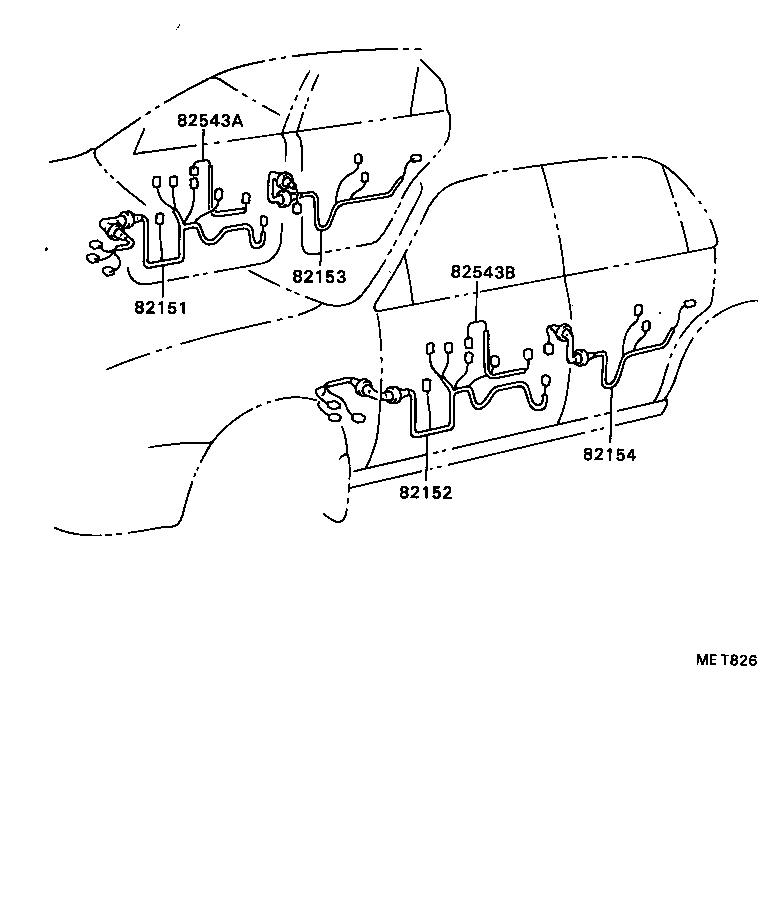

ILLUST NO. 5 OF 9(9205- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12851 |
AE10#,EE101..LB..RHD W(*PW & *EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-1A070 |
AE10#,EE101..5D..(GLI,GTI) W(*EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-12830 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82151-1A071 |
AE10#,EE101..5D..(GLI,GTI) W(*EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-12852 |
AE10#,EE101..LB..RHD W(*PW & *EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-1A050 |
AE10#,CE100,EE10#..5D W(*EL) |
1 | ||
| 82151-12832 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82151-1A051 |
AE10#,CE100,EE10#..5D W(*EL) |
1 | ||
| 82151-12831 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82151-12853 |
AE10#,EE101..LB..RHD W(*PW & *EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-12820 |
AE10#,EE101..GLI,GTI,SI W(ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-12810 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI W(DOOR SPEAKER) |
1 | ||
| 82151-1A052 |
AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D W(*EL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-1A070 |
AE10#,EE101..5D..(GLI,GTI) W(*EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-12781 |
AE10#,EE101..LB..RHD W(*PW & *EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-1A050 |
AE10#,CE100,EE10#..5D W(*EL) OR W(*EL & DOOR SPEAKER) |
1 | ||
| 82151-1A071 |
AE10#,EE101..5D..(GLI,GTI) W(*EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-12740 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82151-1A051 |
AE10#,CE100,EE10#..5D W(*EL) OR W(*EL & DOOR SPEAKER) |
1 | ||
| 82151-12820 |
AE10#,EE101..GLI,GTI,SI W(ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-12741 |
AE10#,EE101..LB..RHD W(*PW & *EL) |
1 | ||
| 82151-12810 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI W(DOOR SPEAKER) |
1 | ||
| 82152-12782 |
AE10#,EE101..LB..RHD W(*PW & *EL & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-1A052 |
AE101..LB;AE101..HB..5D..LHD;AE102,CE100,EE10#..5D W(*EL) OR W(*EL & DOOR SPEAKER) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12210 |
AE10#..5D;EE101..LB;CE100,EE101..HB..5D..LHD W(*PW & *EL) |
1 | ||
| 82153-12220 |
AE10#..5D;EE101..LB;EE101..HB..5D..LHD W(*EL) |
1 | ||
| 82153-12220 |
AE10#..5D;EE101..LB;CE100,EE101..HB..5D..LHD W(*EL) |
1 | ||
| 82153-12210 |
CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(*PW & *EL) |
1 | ||
| 82153-12210 |
AE10#..5D;EE101..LB;EE101..HB..5D..LHD W(*PW & *EL) |
1 | ||
| 82153-12220 |
CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(*EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12210 |
AE10#..5D;EE101..LB;CE100,EE101..HB..5D..LHD W(*PW & *EL) |
1 | ||
| 82154-12220 |
AE10#..5D;EE101..LB;EE101..HB..5D..LHD W(*EL) |
1 | ||
| 82154-12220 |
AE10#..5D;EE101..LB;CE100,EE101..HB..5D..LHD W(*EL) |
1 | ||
| 82154-12210 |
AE10#..5D;EE101..LB;EE101..HB..5D..LHD W(*PW & *EL) |
1 | ||
| 82154-12210 |
CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(*PW & *EL) |
1 | ||
| 82154-12220 |
CE100..5D..LHD;AE10#,EE101..LB;AE101,EE101..HB..5D..LHD W(*EL) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
