AE101R-ALMNKW (1992)
Toyota Corolla Hb/Lb

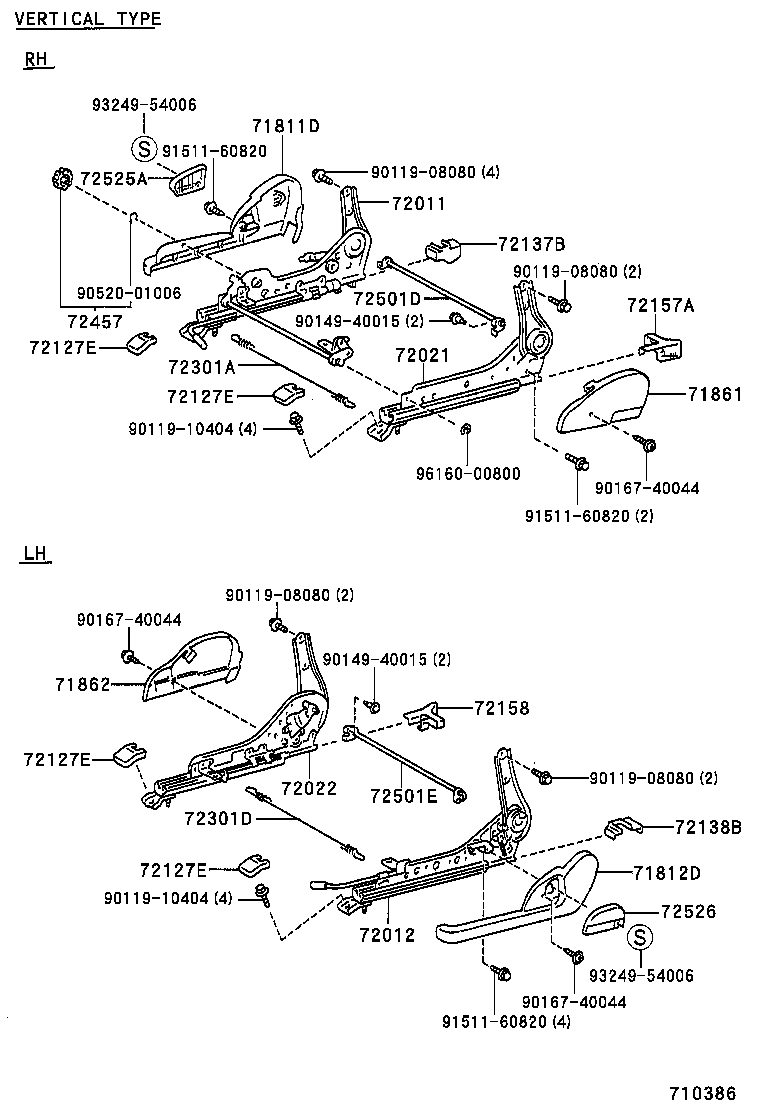

ILLUST NO. 2 OF 2(9205- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12390J0 |
AE101,EE101..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71811-12390B0 |
AE10#,EE101..RHD..(GLI,GTI,SI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12270B0 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12270J0 |
CE100..5D;CE100..3D..LHD;AE101,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12230J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 71861-12230B0 |
AE10#,EE100;CE100,EE101..3D;CE100,EE101..LB;CE100,EE101..HB..5D..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12220B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12220J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12230 |
AE10#,EE101..RHD..(GLI,GTI,SI) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12300 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12270 |
AE10#,EE101..RHD..(GLI,GTI,SI) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12350 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE101,CE100,EE10#..GLI,XL,XLI BLACK,TRIM1#,8# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010W3 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
3 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72137-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72138-12040P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72158-12030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12140 |
AE10#,CE100,EE10#..3D..LHD;AE10#,EE101..RHD..(GLI,GTI,SI) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
CE100..5D;CE100..3D..LHD;AE10#,EE101..5D..RHD;AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B1 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020B1 |
EE101..GLI;AE10#,EE100;CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020J0 |
EE101..GLI;AE101,EE100..GLI,XL,XLI;CE100,EE101..LHD..(XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 72457-22020J0 |
AE101,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-12080 |
AE10#,CE100,EE10# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-12060 |
AE10#,CE100,EE10# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12110J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72525-12110B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12050J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(9205- )GLI ; (9605- )GLI,XL,XLI ; (9611-9704)RHD..5F..XLI ; (9611-9704)5D..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1L040B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L040J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71071-1L130B0 |
AE101,CE100,EE101..RHD 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L041J1 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71071-1L041B1 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1E730B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E730J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71072-1E731B1 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E810B0 |
AE101,CE100,EE101..RHD 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E731J1 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K520B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K590B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K590J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H600B0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H530J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71074-1H530B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1L250J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71410-1L250B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L251J1 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71410-1L251B1 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1H130J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71420-1H130B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H131B1 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H131J1 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K850B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K850J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K660J0 |
AE101,EE101..5D..RHD..GLI DARK BLUE,TRIM8# |
1 | ||
| 71440-1K660B0 |
AE101,EE101..5D..RHD..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12261 |
AE101,EE101..RHD..GLI |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-12301 |
EE101..LHD..(STD,XLI);AE101,EE101..RHD..(GLI,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12810 |
AE101,EE101..GLI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12810 |
AE101,EE101..GLI |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#,EE101..RHD..(GLI,GTI) |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12170 |
AE10#,EE101..RHD..(GLI,GTI) RH |
1 | ||
| 71554-12130 |
AE10#,EE101..RHD..(GLI,GTI) LH |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12430 |
AE101,EE101..RHD..(GLI,SI) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12280 |
AE101,EE101..RHD;EE101..LHD..(STD,XLI);AE101,CE100,EE100..STD,XL,XLI |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A590C0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,BLACK,TRIM1# |
1 | ||
| 71910-1A480B0 |
AE101,EE101..LB..GLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A480J0 |
AE101,EE101..LB..GLI DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A590C0 |
AE101,CE100,EE101 95 SPRING CAMPAIGN,BLACK,TRIM1# |
1 | ||
| 71910-1A480B0 |
AE101,EE101..LB..GLI SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A480J0 |
AE101,EE101..LB..GLI DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12090 |
AE10#,EE101..RHD..(GLI,GTI) |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-12040 |
AE10#,EE101..RHD..(GLI,GTI) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B0 |
AE10#,EE101..GLI,GTI SHADOW GRAY,TRIM1# |
1 | ||
| 72791-12010J0 |
AE101,EE101..GLI DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-60618 | ||||
| 93540-14014 | ||||
