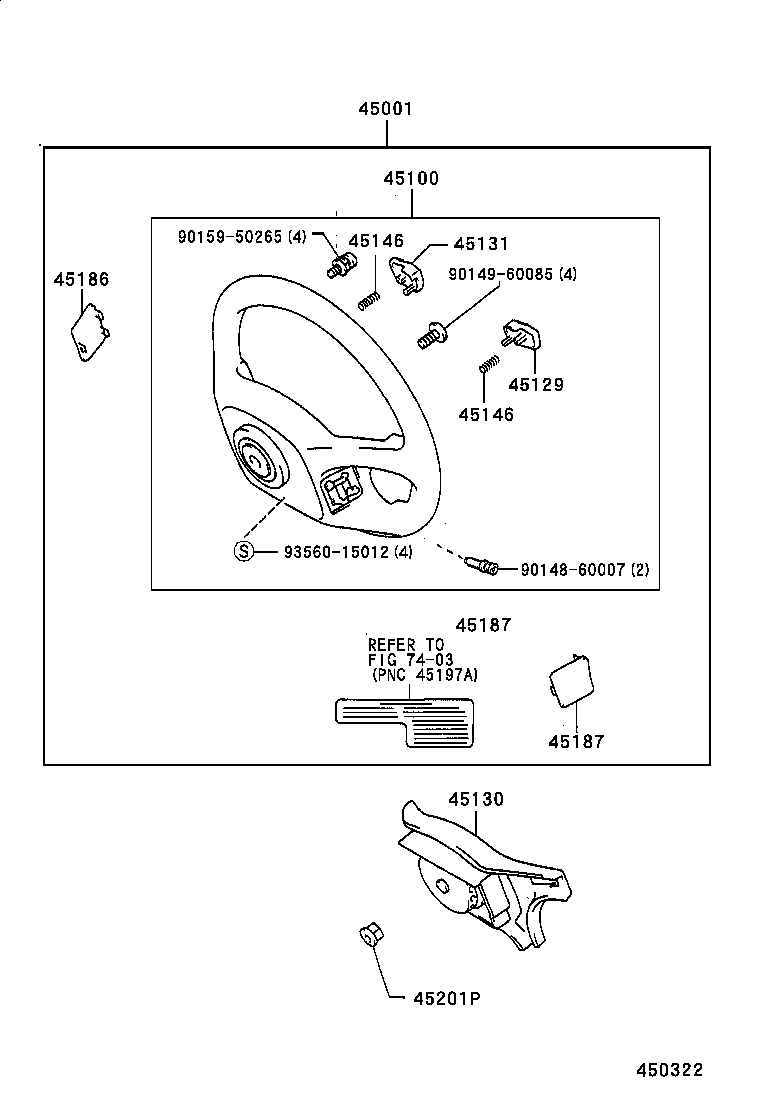

AE101R-ALMNKW (1992)
Toyota Corolla Hb/Lb
(9205- )
3-SPOKE,URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230B0 |
AE10#,EE101..GLI,GTI,SI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2B230J0 |
AE101,EE101..GLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-12621W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 3-SPOKE,URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45100-12620P0 |
AE101,CE100,EE10# 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230B0 |
AE10#,CE100,EE10# 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12620W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 3-SPOKE,URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45100-12621P0 |
AE101,CE100,EE10# 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B231J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM86 |
1 | ||
| 45100-2B231B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12140 |
AE101,CE100,EE10# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12722P0 |
AE10#,CE100,EE10# W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722P0 |
AE10#,EE101..GLI,GTI,SI W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12740B0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12723W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45130-12723P0 |
AE10#,CE100,EE10# W(MECHANICAL TYPE *80),GRAY,TRIM1# |
1 | ||
| 45130-12740J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45130-12722W3 |
AE101,EE101..GLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45130-12741J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45130-12681W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45130-12724P0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45130-12741B0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45130-12681P0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12724W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM86 |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-09112 |
AE101,CE100,EE10# |
1 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-12230 |
AE101,CE100,EE10# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
AE101,CE100,EE10# |
2 | ||
| 45146-20230 |
AE101,EE101..GLI,SI W(MECHANICAL TYPE *80) |
2 | ||
| 45146-20230 |
AE101,CE100,EE10# W(MECHANICAL TYPE *80) |
2 | ||
| 45158A - SOCKET, HORN BUTTON JOINT | ||||
| 45158-12050 |
AE101,CE100,EE10# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-12120J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45180-12120B0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE100,EE10# |
1 | ||
| 90179-12071 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90168-45006 | ||||
| 93540-14014 | ||||
(9205- )
W(MECHANICAL TYPE *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45001 - AIR BAG KIT, STTERING WHEEL | ||||
| 45001-20010B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230B0 |
AE10#,EE101..GLI,GTI,SI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2B230J0 |
AE101,EE101..GLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-12621W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 3-SPOKE,URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45100-12620P0 |
AE101,CE100,EE10# 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230B0 |
AE10#,CE100,EE10# 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12620W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 3-SPOKE,URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45100-12621P0 |
AE101,CE100,EE10# 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B231J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DARK BLUE,TRIM86 |
1 | ||
| 45100-2B231B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI 4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45129-33010J0 |
CE100..LHD;EE101..GLI,STD;EE101..LHD..XLI;AE101,EE100..GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45129-33010J0 |
AE101,EE101..GLI DARK BLUE,TRIM8# |
1 | ||
| 45129-33010B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45129-33010J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45129-33010B0 |
AE10#,EE101..GLI,GTI,SI SHADOW GRAY,TRIM1# |
1 | ||
| 45129-33010J0 |
AE101,CE100,EE101..GLI,STD DARK BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12722P0 |
AE10#,CE100,EE10# W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722P0 |
AE10#,EE101..GLI,GTI,SI W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12740B0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12723W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45130-12723P0 |
AE10#,CE100,EE10# W(MECHANICAL TYPE *80),GRAY,TRIM1# |
1 | ||
| 45130-12740J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45130-12722W3 |
AE101,EE101..GLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45130-12741J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45130-12681W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45130-12724P0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45130-12741B0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM8# |
1 | ||
| 45130-12681P0 |
AE101,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12724W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI W(MECHANICAL TYPE *80),DARK BLUE,TRIM86 |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010B0 |
AE10#,EE101..GLI,GTI,SI SHADOW GRAY,TRIM1# |
1 | ||
| 45131-33010J0 |
AE101,EE101..GLI DARK BLUE,TRIM8# |
1 | ||
| 45131-33010B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45131-33010B0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45131-33010J0 |
AE101,CE100,EE101..GLI,STD DARK BLUE,TRIM8# |
1 | ||
| 45131-33010J0 |
CE100..LHD;EE101..GLI,STD;EE101..LHD..XLI;AE101,EE100..GLI,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45131-33010J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
AE101,CE100,EE10# |
2 | ||
| 45146-20230 |
AE101,EE101..GLI,SI W(MECHANICAL TYPE *80) |
2 | ||
| 45146-20230 |
AE101,CE100,EE10# W(MECHANICAL TYPE *80) |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
AE101,CE100,EE10# |
2 | ||
| 45146-20230 |
AE101,EE101..GLI,SI W(MECHANICAL TYPE *80) |
2 | ||
| 45146-20230 |
AE101,CE100,EE10# W(MECHANICAL TYPE *80) |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20020W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45186-20020P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45186-20020W3 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM86 |
1 | ||
| 45186-20020W3 |
AE101,EE101..GLI DARK BLUE,TRIM8# |
1 | ||
| 45186-20020P0 |
AE10#,EE101..GLI,GTI,SI SHADOW GRAY,TRIM1# |
1 | ||
| 45186-20020P0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030P0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45187-20030P0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI SHADOW GRAY,TRIM1#,86 |
1 | ||
| 45187-20030J0 |
AE101,EE101..GLI DARK BLUE,TRIM8# |
1 | ||
| 45187-20030P0 |
AE10#,EE101..GLI,GTI,SI SHADOW GRAY,TRIM1# |
1 | ||
| 45187-20030J0 |
AE101,CE100,EE10#..GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE100,EE10# |
1 | ||
| 90179-12071 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
| 90149-60085 | ||||
| 90159-50265 | ||||
| 93560-15012 | ||||
