AE101R-AGMXKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

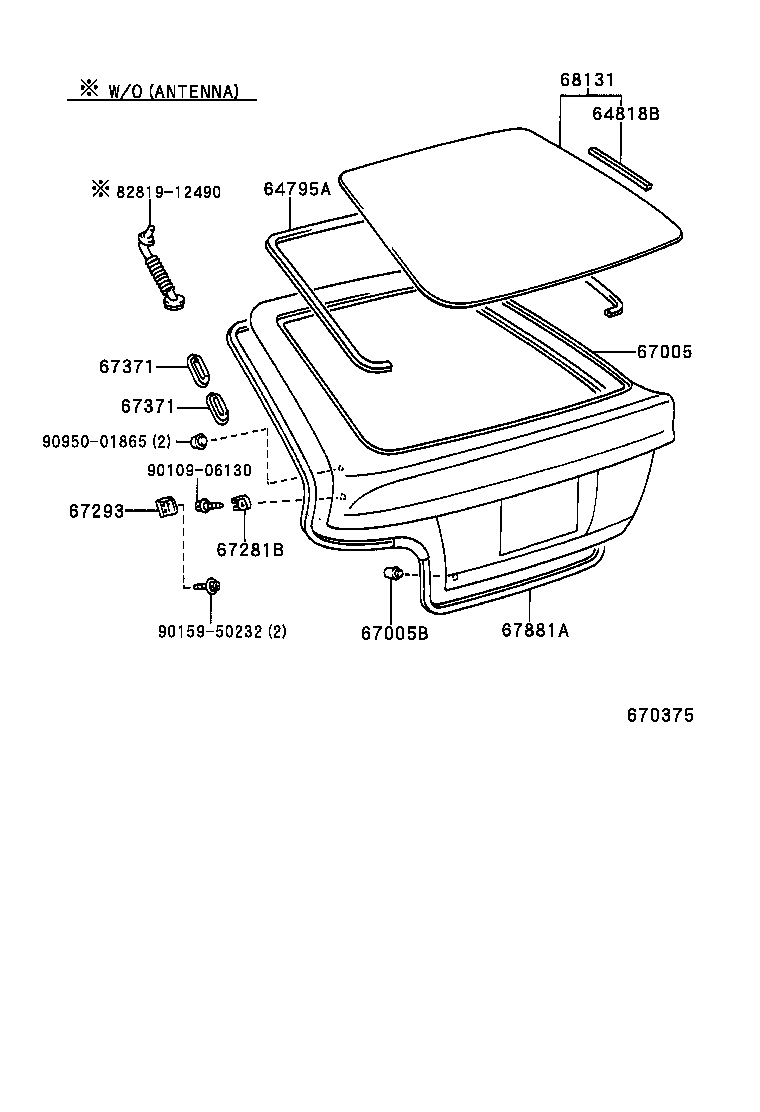

ILLUST NO. 2 OF 2(9205- )HB

Click highlighted areas on diagram

diagram 64795A 64818B 67005 67005B 67281B 67293 67371 67371 67881A 68131 8281912490 9010906130 9015950232 9095001865
Part # Description Qty Price
64795A - TRIM, BACK WINDOW OPENING
64795-12040

AE10#,CE100,EE10#..HB

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-16010

AE101,CE100,EE101

 2
64818-16010

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

W(REAR SPOILER)

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1A770

AE101,CE100,EE101..HB..RHD

 1
67005-1A790

AE101,CE100,EE101..HB..RHD

W(*RS)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09043

AE10#,CE100,EE10#..HB

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-12050

AE10#,CE100,EE10#..HB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-12061

AE10#,CE100,EE10#..HB

 2
67371 - DUCT, BACK DOOR VENTILATOR
67371-12010

AE10#,CE100,EE10#..HB

 4
67371 - DUCT, BACK DOOR VENTILATOR
67371-12010

AE10#,CE100,EE10#..HB

 4
67881A - WEATHERSTRIP, BACK DOOR
67881-12240

AE10#,CE100,EE10#..HB

 1
68131 - GLASS, BACK DOOR
68131-1A370

AE101,CE100,EE101..GLI,SI,XL,XLI

*EHTT,T=3.5,CLEAR,W(REAR SPOILER)

 1
68131-1A440

AE101,CE100,EE101..GLI,SI,XL,XLI

*EHTT,T=3.5

 1
68131-1A370

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

*EHTT,T=3.5,CLEAR

 1
Common parts
82819-12490
90109-06130
90159-50232
90950-01865

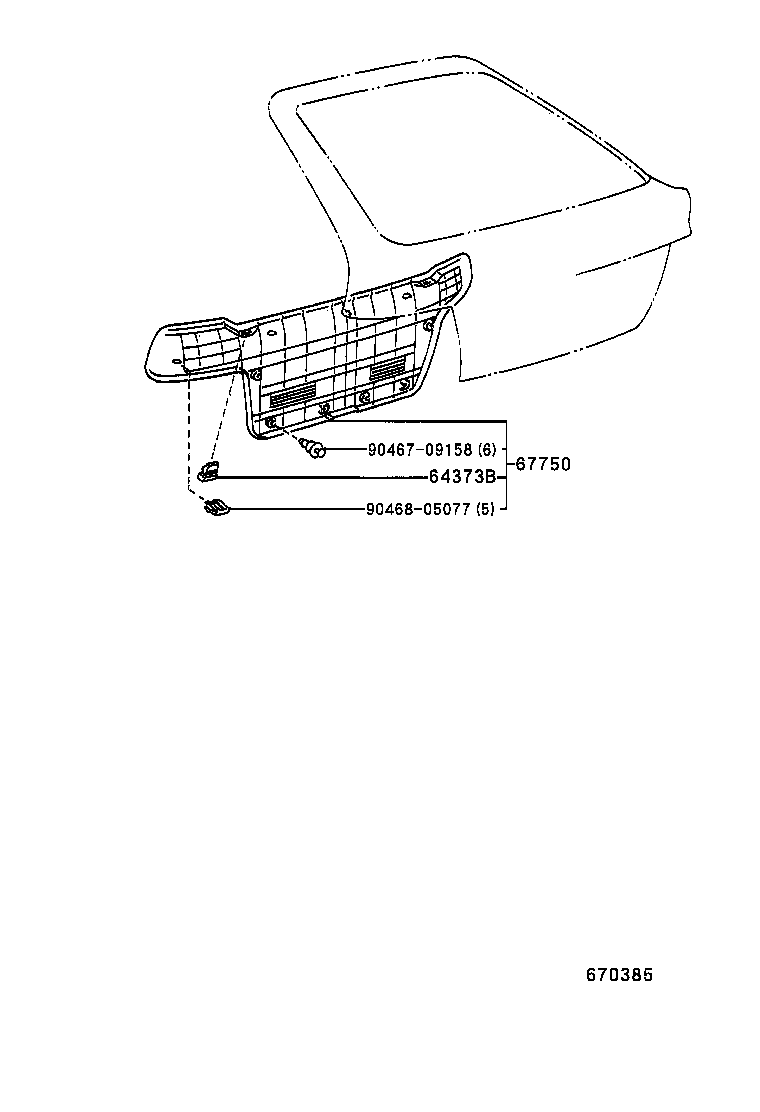

ILLUST NO. 1 OF 2(9205- )HB

Click highlighted areas on diagram

diagram 64373B 67750 9046709158 9046805077
Part # Description Qty Price
64373B - STOPPER, PACKAGE TRAY TRIM
64373-12070

AE10#,CE100,EE10#

 2
67750 - BOARD ASSY, BACK DOOR TRIM
67750-12050B0

AE101,CE100,EE101..GLI,SI,XL,XLI

W(REAR SPOILER),SHADOW GRAY,TRIM1#

 1
67750-12060B0

AE101,CE100,EE101

SHADOW GRAY,TRIM1#

 1
67750-12050B0

AE10#,CE100,EE10#..HB

SHADOW GRAY,TRIM1#

 1
Common parts
90467-09158
90468-05077
