AE101L-ALPNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )LB

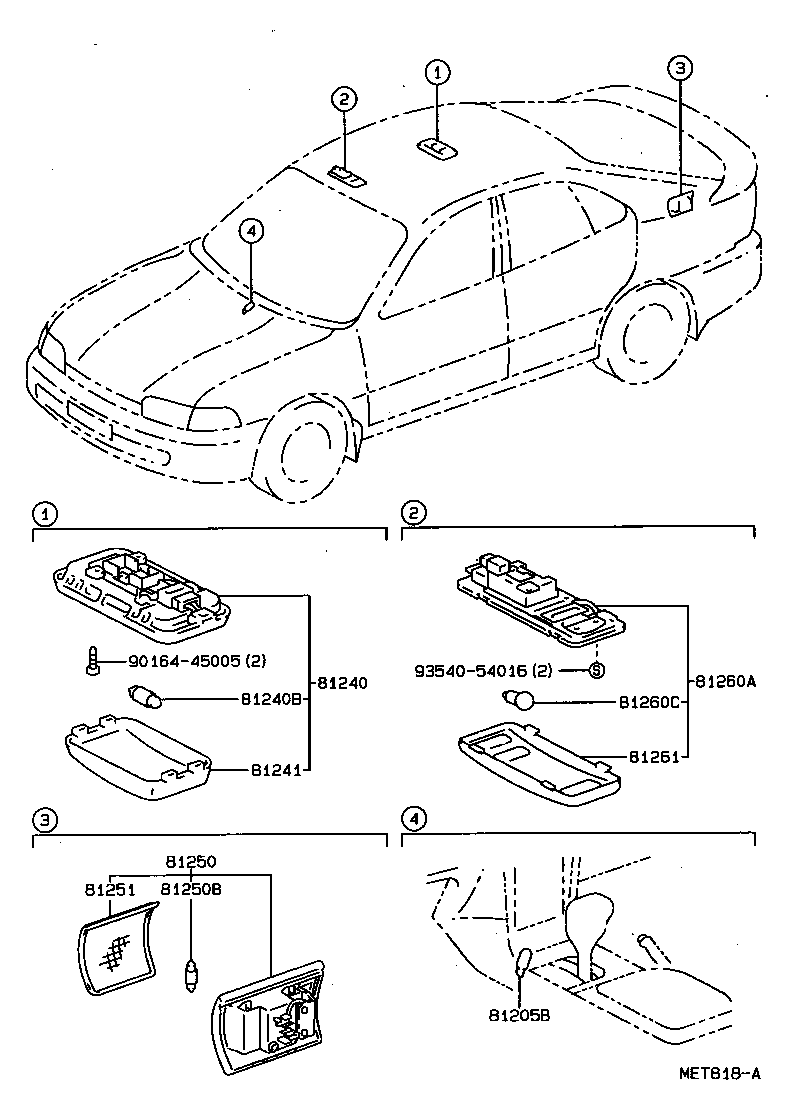

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81241 81250 81250B 81251 81260A 81260C 81261 9016445005 9354054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

AE10#,CE100,EE10#

12V 1.2W W/O SOCKET

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12040B0

AE10#,CE100,EE10#

LIGHT GRAY,TRIM1#

 1
81240-12040J0

AE101,CE100,EE10#..GLI,STD,XL,XLI

LIGHT BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AE10#,CE100,EE10#

12V 10W

 1
90981-14011

AE10#,CE100,EE10#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE10#,CE100,EE10#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-12040B0

AE10#,CE100,EE10#

SHADOW GRAY,TRIM1#

 1
81250-12040J0

AE101,CE100,EE10#..GLI,STD,XL,XLI

DARK BLUE,TRIM8#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AE10#,CE100,EE10#

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12040

AE10#,CE100,EE10#

 1
81260A - LAMP ASSY, MAP
81260-20160W5

AE101,CE100,EE10#..GLI,XL,XLI

LIGHT BLUE,TRIM8#

 1
81260-20160S3

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

SHADOW GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-2016003

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

SHADOW GRAY,TRIM1#

 1
81261-20160J0

AE101,CE100,EE10#..GLI,XL,XLI

LIGHT BLUE,TRIM8#

 1
81261-20160B0

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

LIGHT GRAY,TRIM1#

 1
Common parts
90164-45005
93540-54016
