AE101L-ALMNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )LB

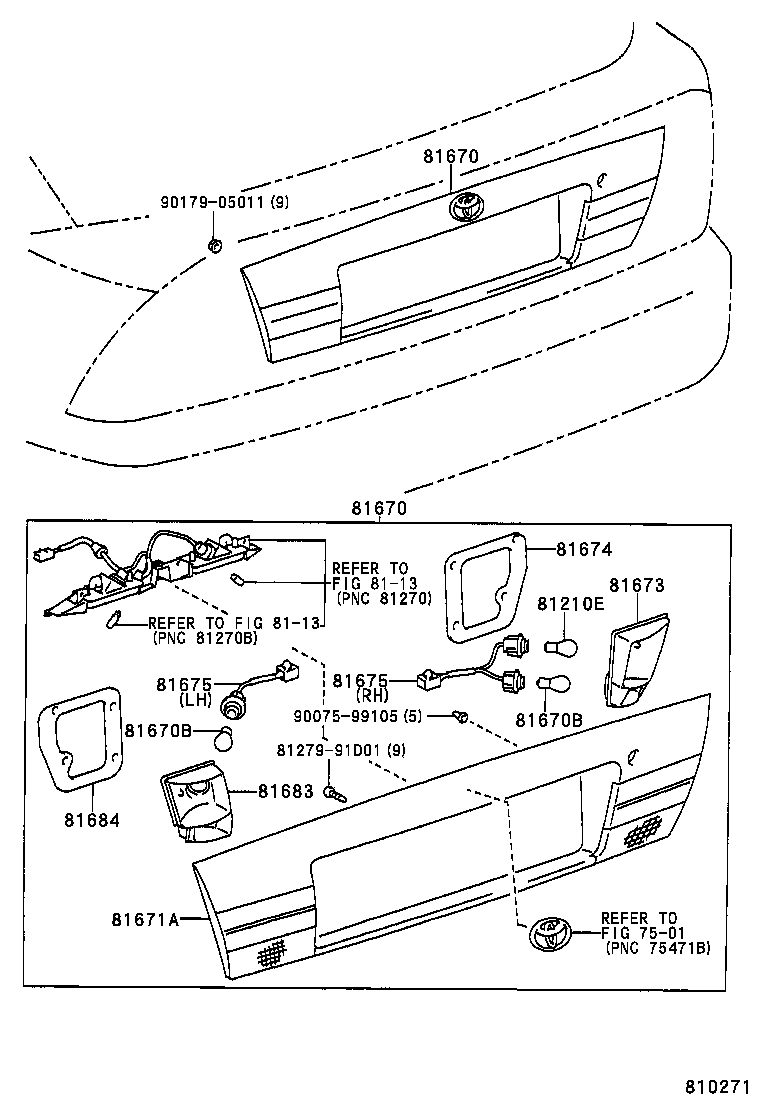

Click highlighted areas on diagram

diagram 7501 8113 8113 81210E 8127991D01 81670 81670 81670B 81670B 81671A 81673 81674 81675 81675 81683 81684 9007599105 9017905011
Part # Description Qty Price
81210E - BULB, REAR FOG LAMP
99132-11210

AE10#,CE100,EE10#..LB

12V 21W

 1
81670 - LAMP ASSY, BACK-UP, RH
81670-12060

AE10#,CE100,EE10#..LB..LHD

 1
81670 - LAMP ASSY, BACK-UP, RH
81670-12060

AE10#,CE100,EE10#..LB..LHD

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11210

AE10#,CE100,EE10#..LB

12V 21W

 2
81670B - BULB(FOR BACK-UP LAMP)
99132-11210

AE10#,CE100,EE10#..LB

12V 21W

 2
81671A - LENS & BODY, BACK-UP LAMP
81671-12060

AE10#,CE100,EE10#..LB..LHD

 1
81673 - BODY, BACK-UP LAMP, RH
81673-12060

AE10#,CE100,EE10#..LB..LHD

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81672-12060

AE10#,CE100,EE10#..LB

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81678-12060

AE10#,CE100,EE10#..LB

LH

 1
81675-12060

AE10#,CE100,EE10#..LB

RH

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81678-12060

AE10#,CE100,EE10#..LB

LH

 1
81675-12060

AE10#,CE100,EE10#..LB

RH

 1
81683 - BODY, BACK UP LAMP, LH
81676-12060

AE10#,CE100,EE10#..LB..LHD

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-12060

AE10#,CE100,EE10#..LB

 1
Common parts
81279-91D01
90075-99105
90179-05011
Linked diagrams
7501
8113
