AE101L-ALMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9505)LB

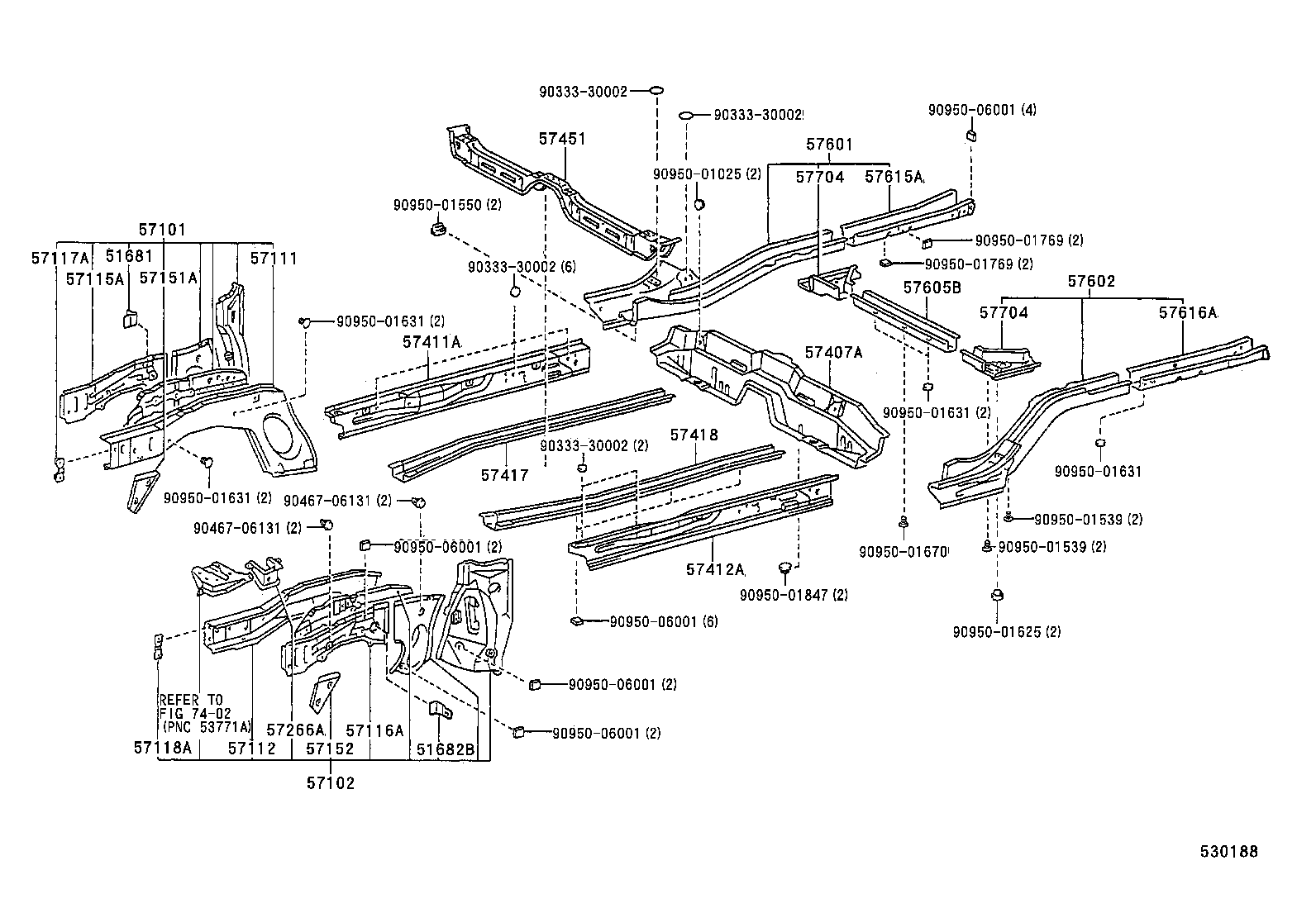

Click highlighted areas on diagram

diagram 51681 51682B 57101 57102 57111 57112 57115A 57116A 57117A 57118A 57151A 57152 57266A 57407A 57411A 57412A 57417 57418 57451 57601 57602 57605B 57615A 57616A 57704 57704 7402 9033330002 9033330002 9033330002 9033330002 9046706131 9046706131 9095001025 9095001539 9095001539 9095001550 9095001625 9095001631 9095001631 9095001631 9095001631 9095001670 9095001769 9095001769 9095001847 9095006001 9095006001 9095006001 9095006001 9095006001
Part # Description Qty Price
51681 - BRACKET, FLEXIBLE HOSE
51681-12050

AE10#,CE100,EE10#

 1
51682B - BRACKET, FLEXIBLE HOSE, LH
51682-12060

AE10#,CE100,EE10#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12490

AE10#..LHD

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12450

AE10#,EE10#..LHD

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12200

AE10#,CE100,EE10#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-12140

AE10#,CE100,EE10#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12060

AE10#,CE100,EE10#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12060

AE10#,CE100,EE10#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-12110

AE10#,CE100,EE10#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57117-12110

AE10#,CE100,EE10#

 1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-12100

AE10#,CE100,EE10#

 1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-12070

AE10#,CE100,EE10#

 1
57266A - BRACKET, ENGINE MOUNTING, LH
57208-12100

AE10#,EE10#

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-12040

AE10#,CE100,EE10#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12460

AE10#,CE100,EE10#..5D

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12460

AE10#,CE100,EE10#..5D

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12100

AE10#,CE100,EE10#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12060

AE10#,CE100,EE10#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12130

AE10#,CE100,EE10#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-1A900

AE10#,CE100,EE101..LB

 1
57601-12931

AE10#,CE100,EE10#..LB

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-12930

AE101,CE100,EE101..LB

 1
57602-12939

AE10#..LB

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-12150

AE10#,CE100,EE10#..LB

 1
57605-12130

AE101,CE100,EE10#..LB

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-12901

AE10#,CE100,EE10#..LB

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-12903

AE10#..LB

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57696-12030

AE10#,CE100,EE10#

LH

 1
57695-12030

AE10#,CE100,EE10#

RH

 1
57704-12080

AE10#,CE100,EE10#

LH

 1
57703-12060

AE10#,CE100,EE10#

RH

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57696-12030

AE10#,CE100,EE10#

LH

 1
57695-12030

AE10#,CE100,EE10#

RH

 1
57704-12080

AE10#,CE100,EE10#

LH

 1
57703-12060

AE10#,CE100,EE10#

RH

 1
Common parts
90333-30002
90467-06131
90950-01025
90950-01539
90950-01550
90950-01625
90950-01631
90950-01670
90950-01769
90950-01847
90950-06001
Linked diagrams
7402
