AE101L-ALMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9605)4AFE,7AFE ; (9605- )4AFE..5F

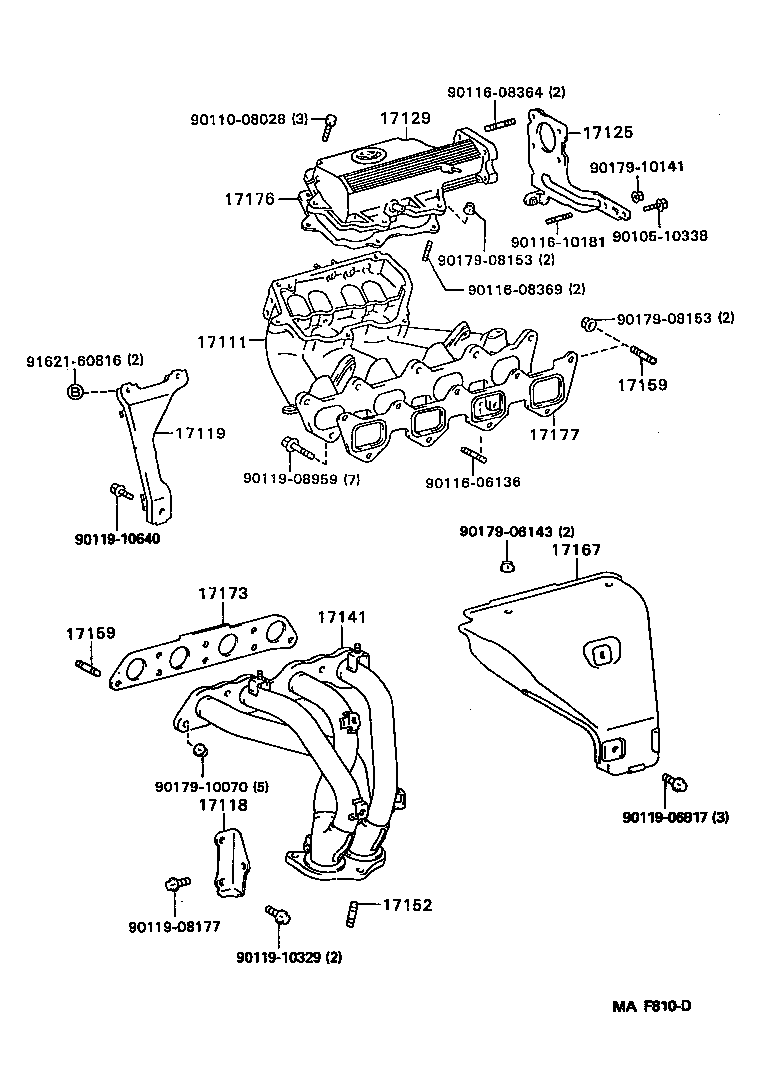

Click highlighted areas on diagram

diagram 17111 17118 17119 17125 17129 17141 17152 17159 17159 17167 17173 17176 17177 9010510338 9011008028 9011606136 9011608364 9011608369 9011610181 9011906817 9011908177 9011908959 9011910329 9011910640 9017906143 9017908153 9017908153 9017910070 9017910141 9162160816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-16190

4AFE..AE101

 1
17101-16190

4AFE,7AFE..AE10#

 1
17118 - STAY, MANIFOLD
17118-16140

4AFE..AE101

 1
17119 - STAY, MANIFOLD, NO.2
17012-15010

4AFE..AE101

 1
17125 - STAY, SURGE TANK, NO.1
17125-15020

4AFE,7AFE..AE10#

 1
17125-16080

4AFE,7AFE..AE10#

 1
17129 - TANK, INTAKE AIR SURGE
17109-15010

4AFE,7AFE..AE10#

 1
17109-16030

4AFE,7AFE..AE10#

 1
17141 - MANIFOLD, EXHAUST
17141-16330

4AFE,7AFE..AE10#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

4AFE,7AFE..AE10#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825

4AFE,7AFE..AE10#

INTAKE MANIFOLD

 2
92112-61028

4AFE,7AFE..AE10#

EXHAUST MANIFOLD

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825

4AFE,7AFE..AE10#

INTAKE MANIFOLD

 2
92112-61028

4AFE,7AFE..AE10#

EXHAUST MANIFOLD

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16170

4AFE,7AFE..AE10#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040

4AFE,7AFE..AE10#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-15010

4AFE,7AFE..AE10#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030

4AFE,7AFE..AE10#

 1
Common parts
90105-10338
90110-08028
90116-06136
90116-08364
90116-08369
90116-10181
90119-06817
90119-08177
90119-08959
90119-10329
90119-10640
90179-06143
90179-08153
90179-10070
90179-10141
91621-60816
