AE101L-AHPDKW (1992)

Toyota Corolla Hb/Lb

Production Nov 1992 - Apr 1997
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

Click highlighted areas on diagram

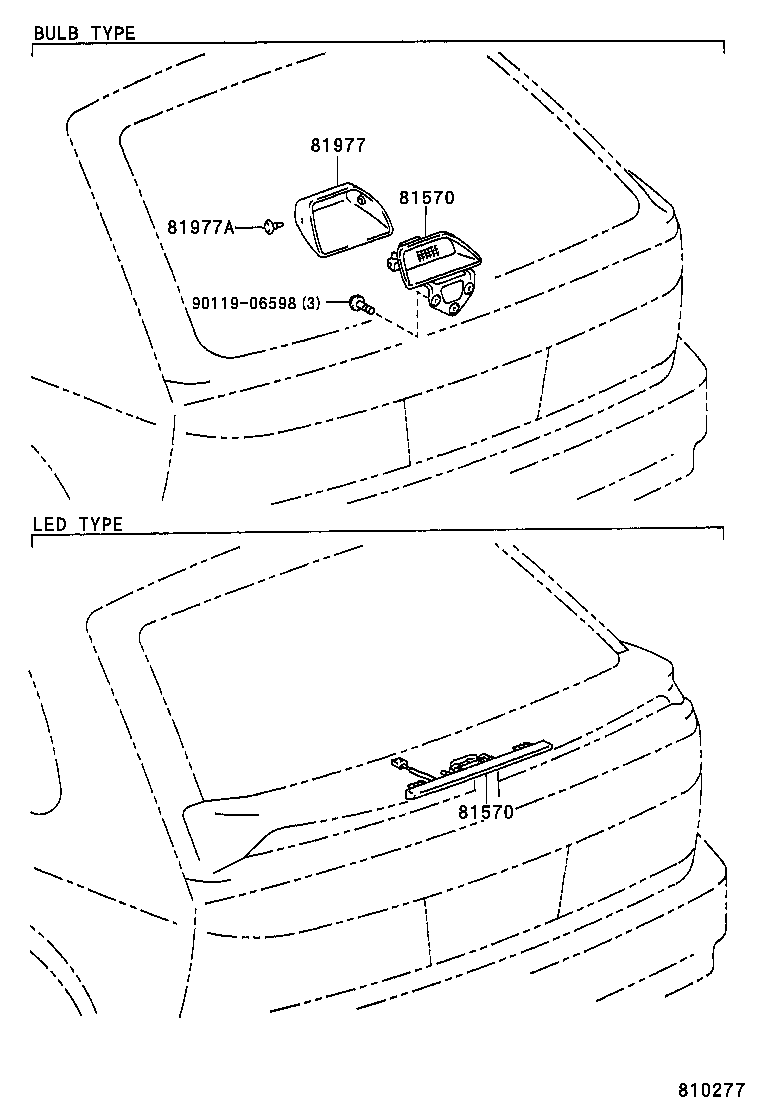

diagram 81570 81570 81977 81977A 9011906598
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-12232

AE101,CE100,EE101

 1
81570-12251

AE101,CE100,EE101..GLI,SI,XL,XLI

W(REAR SPOILER)

 1
81570 - LAMP ASSY, CENTER STOP
81570-12232

AE101,CE100,EE101

 1
81570-12251

AE101,CE100,EE101..GLI,SI,XL,XLI

W(REAR SPOILER)

 1
81977 - COVER, CENTER STOP LAMP
81977-12150J0

AE101,CE100,EE101..GLI,STD,XL,XLI

DARK BLUE,TRIM8#

 1
81977-12150B0

AE101,CE100,EE101

SHADOW GRAY,TRIM1#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-07139B0

AE101,CE100,EE101

SHADOW GRAY,TRIM1#

 2
90467-07139J0

AE101,CE100,EE101..GLI,STD,XL,XLI

DARK BLUE,TRIM8#

 2
Common parts
90119-06598
