AE92L-ACPXUK (1987)

Toyota Corolla Cp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)CBR

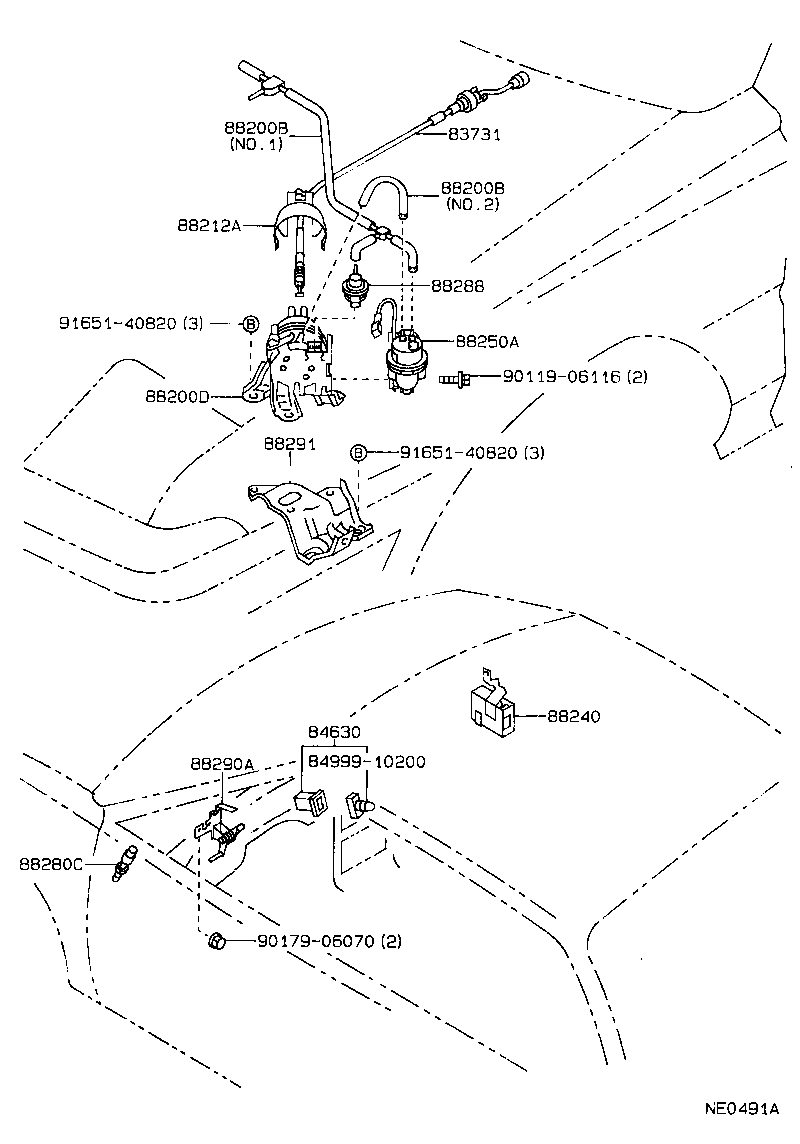

Click highlighted areas on diagram

diagram 83731 84630 8499910200 88200B 88200B 88200D 88212A 88240 88250A 88280C 88288 88290A 88291 9011906116 9017906070 9165140820 9165140820
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-12020

AE92..CBR

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-12050

AE92

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-12090

AE92..CBR

NO.1

 1
90999-92002

AE92..CBR

*H,L=300,MARK=#*,NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-12090

AE92..CBR

NO.1

 1
90999-92002

AE92..CBR

*H,L=300,MARK=#*,NO.2

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-12080

AE92..CBR

 1
88200-12081

AE92..CBR

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-12070

AE92

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-12150

AE92

 1
88250A - PUMP ASSY, CRUISE CONTROL
88251-12100

AE92..CBR

 1
88288 - SWITCH, VACUUM SPEED CONTROL
88288-12010

AE92

 1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-12020

AE92

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-12090

AE92..CBR

 1
Common parts
84999-10200
90119-06116
90179-06070
91651-40820
