AE92L-ACPXUK (1987)
Toyota Corolla Cp
ILLUST NO. 2 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80003 |
AE92 MATSUSHITA |
1 | ||
| 84112-80004 |
AE92 TOKAIRIKA |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12110 |
AE92 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12260 |
AE92 TOKAIRIKA |
1 | ||
| 84140-12250 |
AE92 MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A260 |
AE92..CBR W(INTERMITTENT WIPER) |
1 | ||
| 84310-1A220 |
AE92 W(CRUISE CONTROL) |
1 | ||
| 84310-1A240 |
AE92..CBR |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE92 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12160 |
AE92..ATM |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12800 |
AE92..DX,SR5 W(INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-12790 |
AE92..DX,SR5 W(INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12780 |
AE92..DX,SR5 TOKAIRIKA |
1 | ||
| 84652-12810 |
AE92 W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84652-12820 |
AE92 W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84652-12770 |
AE92..DX,SR5 MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20100 |
AE92 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE92 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12210 |
AE92 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10090 |
AE92 12V 1.8W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE92 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12030 |
AE92 |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 4(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE92..CBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE92 10A |
3 | ||
| 90982-09005 |
AE92 7.5A |
1 | ||
| 90982-07011 |
AE92 30A,GREEN |
1 | ||
| 90982-09003 |
AE92 15A |
1 | ||
| 90982-09004 |
AE92 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE92 10A |
3 | ||
| 90982-09005 |
AE92 7.5A |
1 | ||
| 90982-07011 |
AE92 30A,GREEN |
1 | ||
| 90982-09003 |
AE92 15A |
1 | ||
| 90982-09004 |
AE92 20A,YELLOW |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12020 |
AE92 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92 30A |
3 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE92 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AE92 NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE92 MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE92 NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE92 HEAD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
AE92..GTS,SR5 MARUKO |
1 | ||
| 90987-02004 |
AE92..GTS,SR5 NIPPONDENSO |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-20012 |
AE92..GTS,SR5 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12050 |
AE92..GTS,SR5 |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12030 |
AE92..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A040 |
AE92..CBR |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
ILLUST NO. 4 OF 4(8708-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80072 |
AE92..CBR |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
AE92 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE92 |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-12010 |
AE92..GTS,SR5 RH |
1 | ||
| 84535-12020 |
AE92..GTS,SR5 LH |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-12010 |
AE92..GTS,SR5 RH |
1 | ||
| 84535-12020 |
AE92..GTS,SR5 LH |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE92 |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
AE92 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 84810-2006012 |
AE92..GTS,SR5 RED,TRIM3# |
1 | ||
| 84810-2006014 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
1 | ||
| 84810-2006005 |
AE92..SR5 DARK BEIGE,TRIM4# |
1 | ||
| 84810-20060J0 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1220004 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
1 | ||
| 84820-1220005 |
AE92..SR5 DARK BEIGE,TRIM4# |
1 | ||
| 84820-1220003 |
AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1220002 |
AE92..GTS,SR5 RED,TRIM3# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AE92..GTS,SR5 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601014 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
2 | ||
| 84930-16010J0 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
2 | ||
| 84930-1601005 |
AE92..SR5 DARK BEIGE,TRIM4# |
2 | ||
| 84930-1601002 |
AE92..GTS,SR5 RED,TRIM3# |
2 | ||
| 84930-1601003 |
AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601014 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
2 | ||
| 84930-16010J0 |
AE92..GTS,SR5 DARK BLUE,TRIM8# |
2 | ||
| 84930-1601005 |
AE92..SR5 DARK BEIGE,TRIM4# |
2 | ||
| 84930-1601002 |
AE92..GTS,SR5 RED,TRIM3# |
2 | ||
| 84930-1601003 |
AE92..GTS,SR5 SHADOW GRAY,TRIM1# |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12020 |
AE92 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12060 |
AE92..GTS,SR5 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19255 |
AE92..CBR |
1 | ||
| Common parts | ||||
| 90119-06338 | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06005 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 94120-41000 | ||||

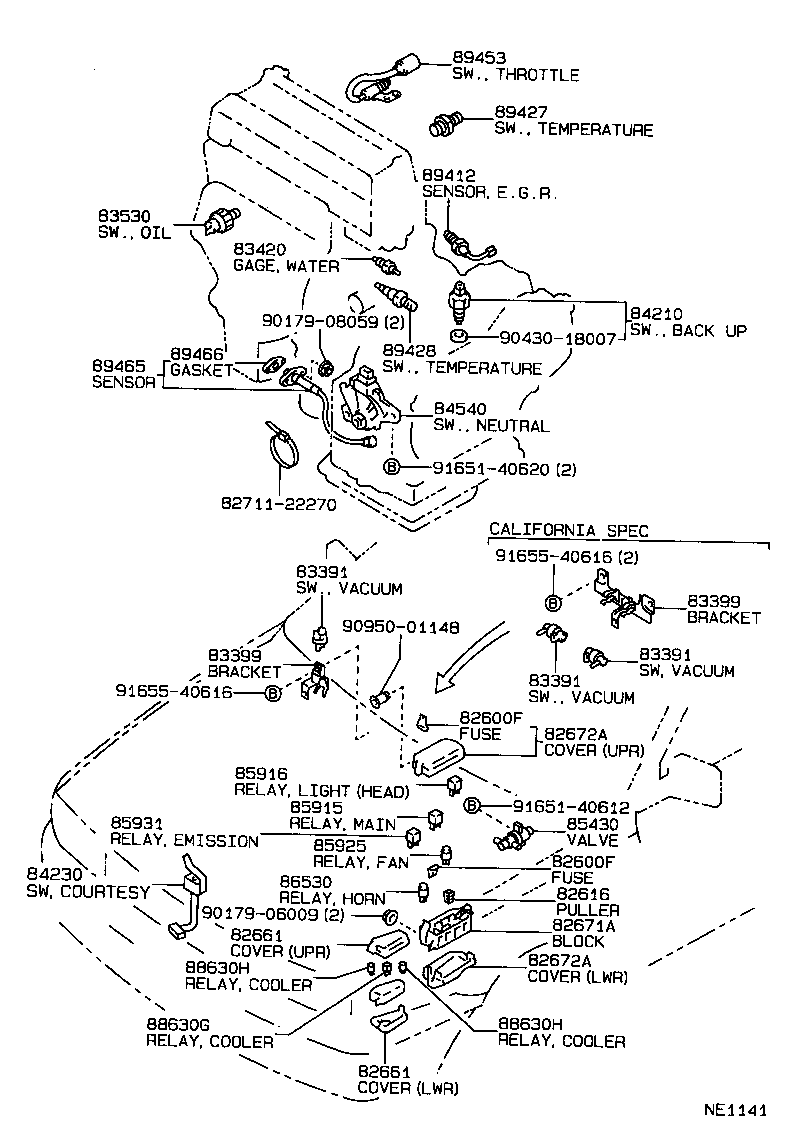

ILLUST NO. 1 OF 4(8708-8908)CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE92 10A |
3 | ||
| 90982-09005 |
AE92 7.5A |
1 | ||
| 90982-07011 |
AE92 30A,GREEN |
1 | ||
| 90982-09003 |
AE92 15A |
1 | ||
| 90982-09004 |
AE92 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE92 10A |
3 | ||
| 90982-09005 |
AE92 7.5A |
1 | ||
| 90982-07011 |
AE92 30A,GREEN |
1 | ||
| 90982-09003 |
AE92 15A |
1 | ||
| 90982-09004 |
AE92 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE92 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE92 UPR |
1 | ||
| 82661-12160 |
AE92 LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE92 UPR |
1 | ||
| 82661-12160 |
AE92 LWR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12100 |
AE92..CBR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12060 |
AE92..CBR UPR |
1 | ||
| 82672-12070 |
AE92 LWR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12060 |
AE92..CBR UPR |
1 | ||
| 82672-12070 |
AE92 LWR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE92..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE92..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE92..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
AE92..CBR |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
AE92..CBR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE92..DX,SR5 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
AE92..DX,SR5 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
AE92..ATM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09011 |
AE92..CBR |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE92 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE92 MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE92 NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE92 HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE92 |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 90987-02006 |
AE92..CBR |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE92 MARUKO |
1 | ||
| 90987-02004 |
AE92 NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE92 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE92 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE92 |
2 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AE92..CBR |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE92 |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12040 |
AE92..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19255 |
AE92..CBR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AE92..CBR |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90950-01148 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
