AE92L-ACPXUK (1987)

Toyota Corolla Cp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CND

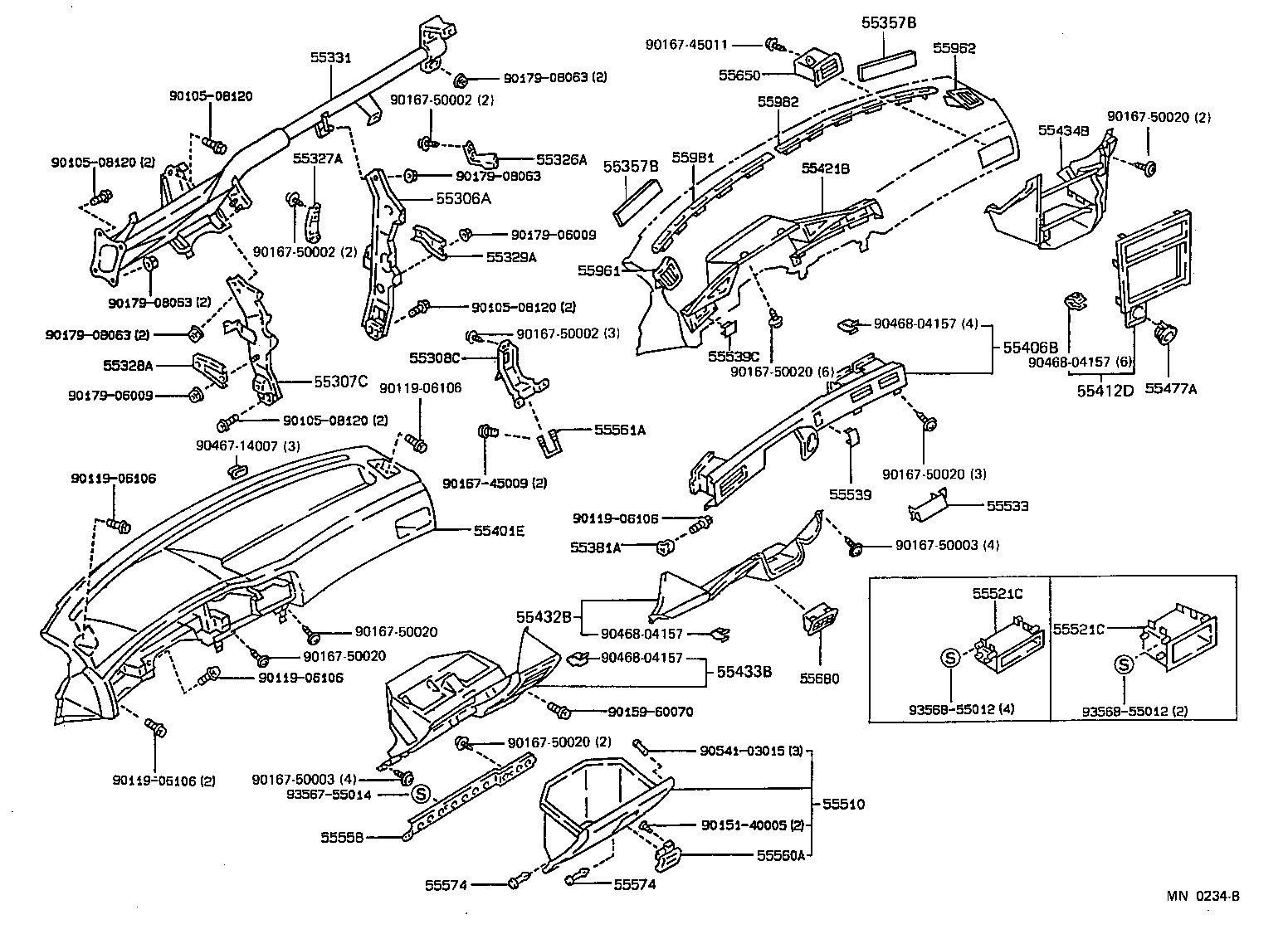

Click highlighted areas on diagram

diagram 55306A 55307C 55308C 55326A 55327A 55328A 55329A 55331 55357B 55357B 55381A 55401E 55406B 55412D 55421B 55432B 55433B 55434B 55477A 55510 55521C 55521C 55533 55539 55539C 55558 55560A 55561A 55574 55574 55650 55680 55961 55962 55981 55982 9010508120 9010508120 9010508120 9010508120 9011906106 9011906106 9011906106 9011906106 9011906106 9015140005 9015960070 9016745009 9016745011 9016750002 9016750002 9016750002 9016750003 9016750003 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9017906009 9017906009 9017908063 9017908063 9017908063 9017908063 9046714007 9046804157 9046804157 9046804157 9046804157 9054103015 9356755014 9356855012 9356855012
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-12090

AE92

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-12140

AE92

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-12160

AE92

 1
55326A - STAY, INSTRUMENT PANEL, NO.1
55326-12080

AE92

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-12090

AE92

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-12050

AE92

 1
55329A - BRACKET, INSTRUMENT PANEL METER
55329-12040

AE92

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-12190

AE92

 1
55381A - BRACKET, FINISH PANEL MOUNTING
55381-12040

AE92

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-1228002

AE92

RED,TRIM3#

 1
55401-1228004

AE92

DARK BLUE,TRIM8#

 1
55401-1228105

AE92..CBR

DARK BEIGE,TRIM4#

 1
55401-1228005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55401-1228003

AE92

SHADOW GRAY,TRIM1#

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-12300

AE92

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-1242004

AE92

DARK BLUE,TRIM8#

 1
55412-1242005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55412-1242002

AE92

RED,TRIM3#

 1
55412-1242003

AE92

SHADOW GRAY,TRIM1#

 1
55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-12150

AE92

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1229002

AE92

RED,TRIM3#

 1
55432-1229005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55432-1229003

AE92

SHADOW GRAY,TRIM1#

 1
55432-1229004

AE92

DARK BLUE,TRIM8#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-1208004

AE92

DARK BLUE,TRIM8#

 1
55433-1208003

AE92

SHADOW GRAY,TRIM1#

 1
55433-1208005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55433-1208002

AE92

RED,TRIM3#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-1207004

AE92

DARK BLUE,TRIM8#

 1
55434-1207003

AE92

SHADOW GRAY,TRIM1#

 1
55434-1207002

AE92

RED,TRIM3#

 1
55434-1207005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-12090

AE92

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1228003

AE92

SHADOW GRAY,TRIM1#

 1
55550-1228004

AE92

DARK BLUE,TRIM8#

 1
55550-1228002

AE92

RED,TRIM3#

 1
55550-1228005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55521C - COVER, STEREO OPENING
55521-16030

AE92

W(1DIN SIZE COVER)

 1
55521-16040

AE92

1/1 DIN,W(2DIN SIZE COVER)

 1
55521C - COVER, STEREO OPENING
55521-16030

AE92

W(1DIN SIZE COVER)

 1
55521-16040

AE92

1/1 DIN,W(2DIN SIZE COVER)

 1
55533 - COVER, AUTO CLOCK HOLE
55533-12110

AE92..DX,SR5

 1
55539 - COVER, SPARE SWITCH HOLE
55539-12100

AE92

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-12080

AE92

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-1605014

AE92

DARK BLUE,TRIM8#

 1
55560-1605005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55560-1605012

AE92

RED,TRIM3#

 1
55560-1605003

AE92

SHADOW GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-12050

AE92

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE92

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE92

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1219005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55650-1219002

AE92..CBR;AE92..(GTS,SR5)..EFI

RED,TRIM3#

 1
55650-1219004

AE92

DARK BLUE,TRIM8#

 1
55650-1219003

AE92

SHADOW GRAY,TRIM1#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-1403014

AE92

DARK BLUE,TRIM8#

 1
55680-1403012

AE92..CBR;AE92..(GTS,SR5)..EFI

RED,TRIM3#

 1
55680-1403013

AE92

SHADOW GRAY,TRIM1#

 1
55680-1403005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-1217002

AE92..CBR;AE92..(GTS,SR5)..EFI

RED,TRIM3#

 1
55961-1217005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55961-1217004

AE92

DARK BLUE,TRIM8#

 1
55961-1217003

AE92

SHADOW GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-1215005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55962-1215004

AE92

DARK BLUE,TRIM8#

 1
55962-1215002

AE92..CBR;AE92..(GTS,SR5)..EFI

RED,TRIM3#

 1
55962-1215003

AE92

SHADOW GRAY,TRIM1#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-1202005

AE92..CBR

DARK BEIGE,TRIM4#

 1
55981-1202004

AE92

DARK BLUE,TRIM8#

 1
55981-1202002

AE92..CBR;AE92..(GTS,SR5)..EFI

RED,TRIM3#

 1
55981-1202003

AE92

SHADOW GRAY,TRIM1#

 1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-1202004

AE92

DARK BLUE,TRIM8#

 1
55982-1202003

AE92

SHADOW GRAY,TRIM1#

 1
55982-1202002

AE92..CBR;AE92..(GTS,SR5)..EFI

RED,TRIM3#

 1
55982-1202005

AE92..CBR

DARK BEIGE,TRIM4#

 1
Common parts
90105-08120
90119-06106
90151-40005
90159-60070
90167-45009
90167-45011
90167-50002
90167-50003
90167-50020
90179-06009
90179-08063
90467-14007
90468-04157
90541-03015
93567-55014
93568-55012
