AE92L-ACPXUK (1987)

Toyota Corolla Cp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )4FC

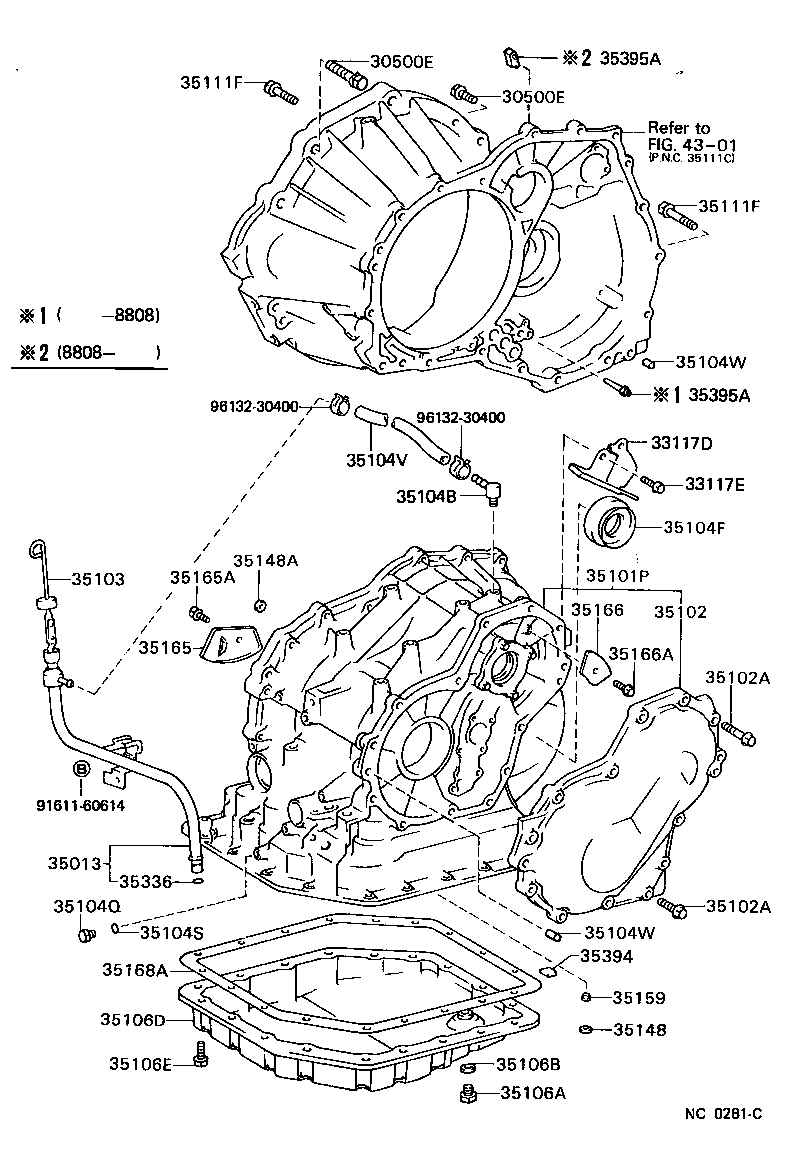

Click highlighted areas on diagram

A240L

diagram 30500E 30500E 33117D 33117E 35013 35101P 35102 35102A 35102A 35103 35104B 35104F 35104Q 35104S 35104V 35104W 35104W 35106A 35106B 35106D 35106E 35111F 35111F 35148 35148A 35159 35165 35165A 35166 35166A 35168A 35336 35394 35395A 35395A 4301 9161160614 9613230400 9613230400
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

AE92..ATM

*12-1.25PX55-30

 1
91611-61025

AE92..ATM

*10-1.25PX25-25

 1
90105-10077

AE92..ATM

*10-1.25PX43-26

 1
91619-61245

AE92..ATM

*12-1.25PX45-30

 2
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

AE92..ATM

*12-1.25PX55-30

 1
91611-61025

AE92..ATM

*10-1.25PX25-25

 1
90105-10077

AE92..ATM

*10-1.25PX43-26

 1
91619-61245

AE92..ATM

*12-1.25PX45-30

 2
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-12030

AE92..4FC

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

AE92..ATM

 2
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12230

AE92..4FC

 1
35101P - CASE & COVER SUB-ASSY, TRANSAXLE
35101-12021

AE92..4FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-20050

AE92..4FC

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08065

AE92..4FC

*8-1.25PX45-35

 10
90105-08068

AE92..4FC

*8-1.25PX35-30

 3
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08065

AE92..4FC

*8-1.25PX45-35

 10
90105-08068

AE92..4FC

*8-1.25PX35-30

 3
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-12120

AE92..4FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03101

AE92..4FC

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34010

AE92..4FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

AE92..4FC

 1
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

AE92..4FC

 1
35104V - HOSE (FOR BREATHER PLUG)
90447-11011

AE92..4FC

 1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-11001

AE92..4FC

RR COVER SIDE

 2
90250-10007

AE92..4FC

HOUSING SIDE

 2
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-11001

AE92..4FC

RR COVER SIDE

 2
90250-10007

AE92..4FC

HOUSING SIDE

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

AE92..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

AE92..4FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-12050

AE92..4FC

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

AE92..4FC

 18
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08068

AE92..4FC

*8-1.25PX35-30

 5
90105-08065

AE92..4FC

*8-1.25PX45-35

 10
90105-08071

AE92..4FC

*8-1.25PX30-25

 2
90105-08066

AE92..4FC

*8-1.25PX72-30

 1
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08068

AE92..4FC

*8-1.25PX35-30

 5
90105-08065

AE92..4FC

*8-1.25PX45-35

 10
90105-08071

AE92..4FC

*8-1.25PX30-25

 2
90105-08066

AE92..4FC

*8-1.25PX72-30

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AE92..ATM

 1
35148A - GASKET, GOVERNOR APPLY, NO.2
35148-12010

AE92..4FC

 3
35159 - GASKET, BRAKE DRUM
35159-20010

AE92..4FC

 1
35165 - PLATE, TRANSMISSION CASE, NO.1
35165-12010

AE92..4FC

 1
35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1)
90105-06049

AE92..4FC

 1
35166 - PLATE, TRANSMISSION CASE, NO.3
35166-12010

AE92..4FC

 1
35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3)
90105-06049

AE92..4FC

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-12020

AE92..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AE92..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AE92..4FC

 2
35395A - STRAINER, GOVERNOR OIL
35395-20010

AE92..4FC

 1
35395A - STRAINER, GOVERNOR OIL
35395-20010

AE92..4FC

 1
Common parts
91611-60614
96132-30400
Linked diagrams
4301
