AE92L-ACPXUK (1987)
Toyota Corolla Cp

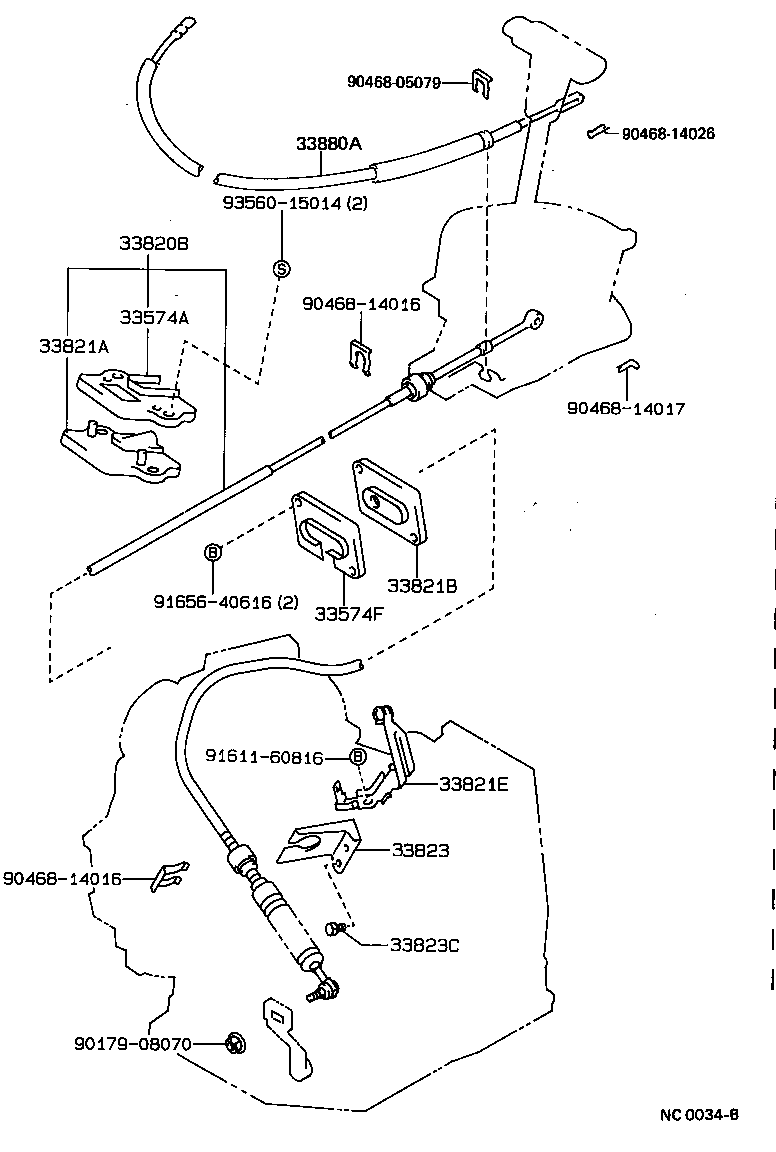

ILLUST NO. 2 OF 2(8708- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE92..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12030 |
AE92..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12150 |
AE92..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01395 |
AE92..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01391 |
AE92..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01397 |
AE92..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12060 |
AE92..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-61022 |
AE92..4FC |
2 | ||
| Common parts | ||||
| 90179-08070 | ||||
| 90468-05079 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14026 | ||||
| 91611-60816 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||

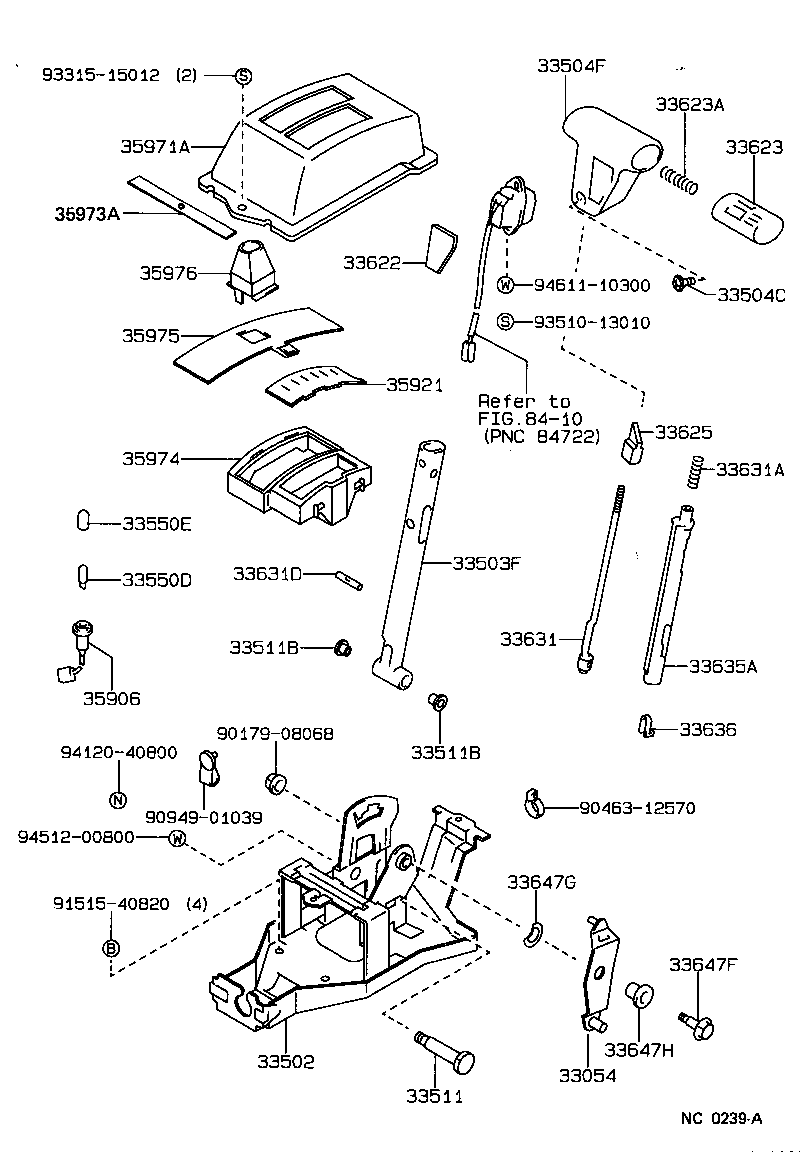

ILLUST NO. 1 OF 2(8708-8908)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12050 |
AE92..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12310 |
AE92..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12320 |
AE92..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AE92..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3205015 |
AE92..4FC DARK BEIGE,TRIM4# |
1 | ||
| 33542-3205003 |
AE92..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33542-32050J0 |
AE92..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-3205034 |
AE92..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-3205032 |
AE92..4FC MAROON,TRIM3# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE92..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
AE92..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
AE92..ATM |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
AE92..ATM 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09004 |
AE92..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-16020J0 |
AE92..4FC DARK BLUE,TRIM8# |
1 | ||
| 33622-1602044 |
AE92..4FC DARK BLUE,TRIM8# |
1 | ||
| 33622-1602032 |
AE92..4FC MAROON,TRIM3# |
1 | ||
| 33622-1602025 |
AE92..4FC DARK BEIGE,TRIM4# |
1 | ||
| 33622-1602013 |
AE92..4FC GRAY,TRIM1# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-14040J0 |
AE92..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623-1404005 |
AE92..4FC DARK BEIGE,TRIM4# |
1 | ||
| 33623-1404014 |
AE92..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623-1404012 |
AE92..4FC MAROON,TRIM3# |
1 | ||
| 33623-1404013 |
AE92..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE92..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AE92..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
AE92..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE92..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
AE92..ATM |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-12020 |
AE92..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
AE92..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 90119-08606 |
AE92..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
AE92..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12029 |
AE92..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-10030 |
AE92..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12290 |
AE92..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1215003 |
AE92..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 35971-1215002 |
AE92..4FC MAROON |
1 | ||
| 35971-1215005 |
AE92..ATM DARK BEIGE,TRIM4# |
1 | ||
| 35971-12150J0 |
AE92..ATM DARK BLUE,TRIM8# |
1 | ||
| 35971-1215012 |
AE92..ATM MAROON,TRIM3# |
1 | ||
| 35971-12150E0 |
AE92..ATM DARK BEIGE,TRIM4# |
1 | ||
| 35971-1215004 |
AE92..ATM DARK BLUE,TRIM8# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12120 |
AE92..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12160 |
AE92..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12030 |
AE92..4FC |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 90463-12570 | ||||
| 90949-01039 | ||||
| 91515-40820 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8410 | ||||
