AE92L-ACPXUK (1987)

Toyota Corolla Cp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)4AF

Click highlighted areas on diagram

diagram 17303 17341A 17341A 17341A 17341A 9044531019 9044531020 9162140612
Part # Description Qty Price
17303 - PIPE SUB-ASSY, AIR
17303-16080

4AF..AE92

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

4AF..AE92

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

4AF..AE92

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

4AF..AE92

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

4AF..AE92

 2
Common parts
90445-31019
90445-31020
91621-40612

(8708-8908)4AF

Click highlighted areas on diagram

CALIFORNIA SPEC

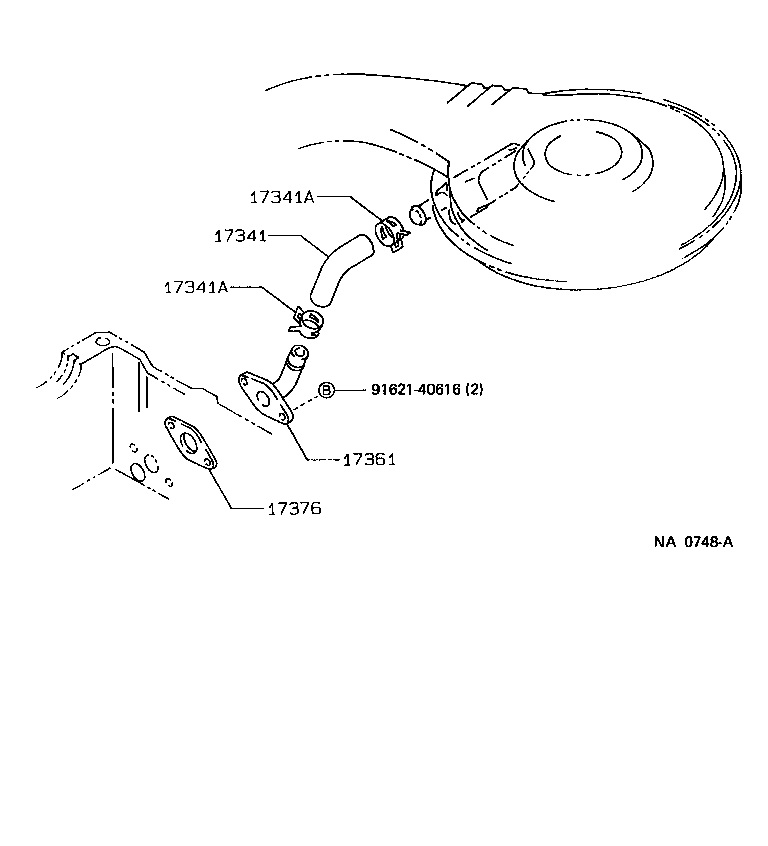

diagram 17341 17341A 17341A 17361 17376 9162140616
Part # Description Qty Price
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

4AF..AE92

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

4AF..AE92

 2
Common parts
91621-40616
