AE92L-ACMXUK (1987)

Toyota Corolla Cp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)4AF

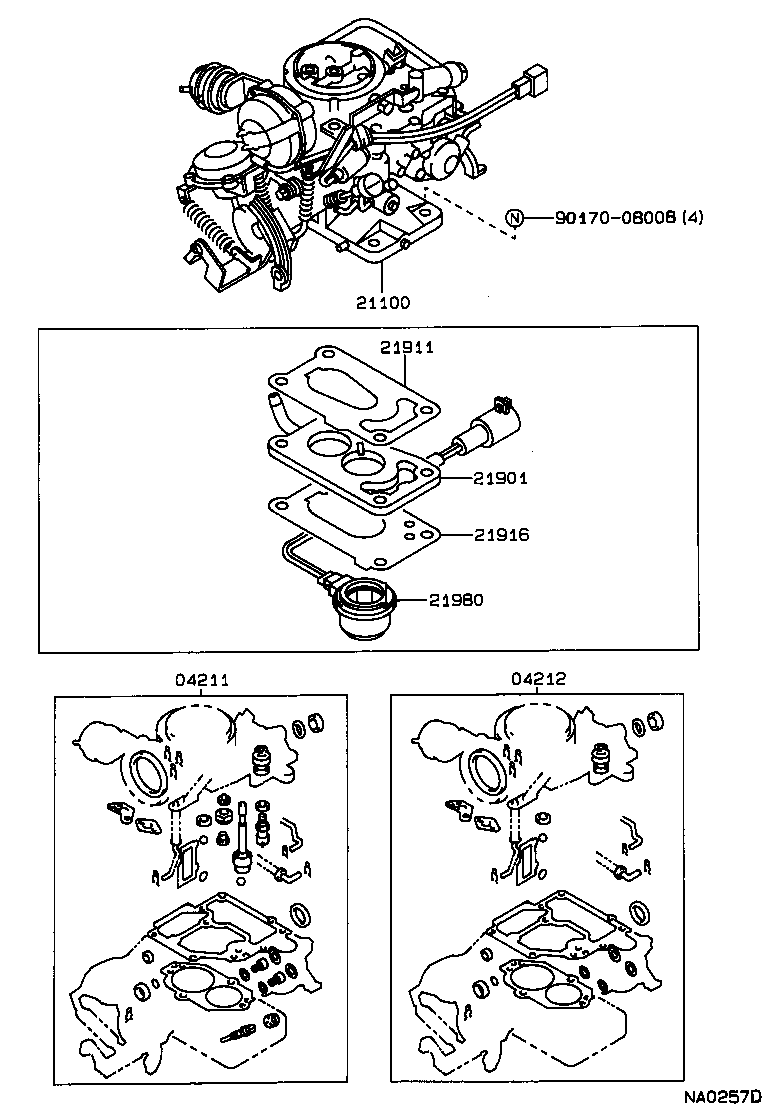

Click highlighted areas on diagram

diagram 04211 04212 21100 21901 21911 21916 21980 9017008008
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-16180

4AF..AE92

 1
04212 - GASKET KIT, CARBURETOR
04212-16080

4AF..AE92

 1
21100 - CARBURETOR ASSY
21100-16340

4AF..AE92..5F

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-16010

4AF..AE92

 1
21911 - GASKET, CARBURETOR
21911-16010

4AF..AE92

 1
21916 - GASKET, CARBURETOR, NO.2
21916-15040

4AF..AE92

 1
21980 - HEATER ASSY, COLD MIXTURE
21980-16010

4AF..AE92

 1
Common parts
90170-08008
