AE92L-ACMXKK (1989)

Toyota Corolla Cp

Production Aug 1989 - Jun 1991
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )CND

Click highlighted areas on diagram

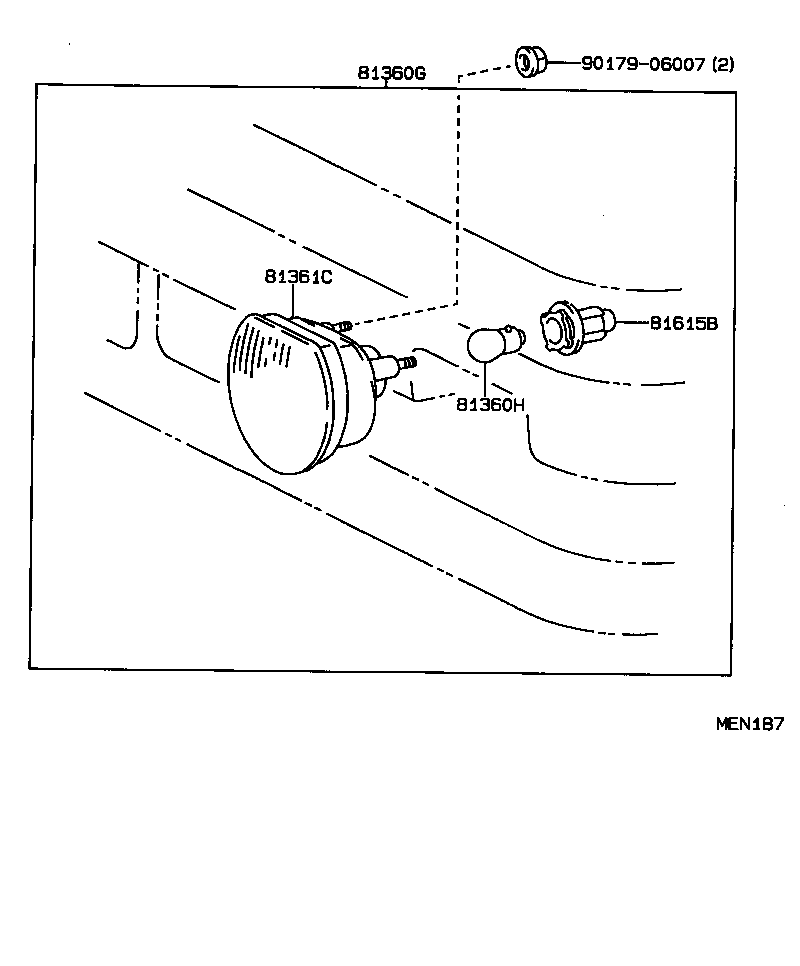

diagram 81360G 81360H 81361C 81615B 9017906007
Part # Description Qty Price
81360G - LAMP ASSY, SPOT
81360-12010

AE92..CND

 2
81360H - BULB, SPOT LAMP
99132-11270

AE92..CND

 2
81361C - LENS & BODY, SPOT LAMP
81361-12010

AE92..CND

 2
81615B - SOCKET, SPOT LAMP
81615-87705

AE92..CND

 2
Common parts
90179-06007
