AE92L-ACMDKA (1989)
Toyota Corolla Cp
Production
Aug 1989
-
Jun 1991
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8908- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 96816-50420 |
AE92..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12190 |
AE92..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-12080 |
AE92..EFI |
1 | ||
| 31482-12060 |
AE92..5F..(DX,SR5) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-12080 |
AE92..EFI |
1 | ||
| 31482-12060 |
AE92..5F..(DX,SR5) |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12050 |
AE92..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12110 |
AE92..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12130 |
AE92..EFI |
1 | ||
| Common parts | ||||
| 90461-08652 | ||||
| 90468-08032 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||

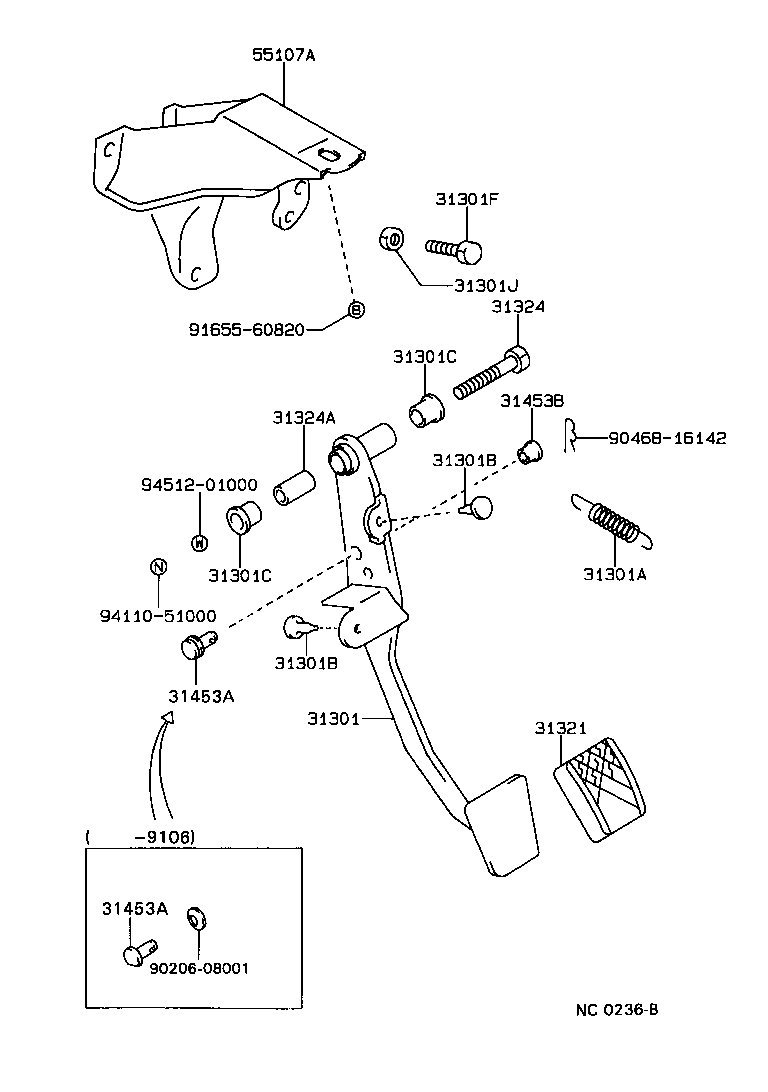

ILLUST NO. 1 OF 2(8708- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12351 |
AE92..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14052 |
AE92..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AE92..5F CLUTCH START SWITCH |
1 | ||
| 90541-06036 |
AE92..5F PEDAL STOPPER |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AE92..5F CLUTCH START SWITCH |
1 | ||
| 90541-06036 |
AE92..5F PEDAL STOPPER |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AE92..5F |
2 | ||
| 90386-13015 |
AE92..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AE92..5F |
2 | ||
| 90386-13015 |
AE92..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AE92..5F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
AE92..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12040 |
AE92..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
AE92..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AE92..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE92..5F L=23.5 |
1 | ||
| 90240-08006 |
AE92..5F L=23.5 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE92..5F L=23.5 |
1 | ||
| 90240-08006 |
AE92..5F L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE92..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12141 |
AE92..5F |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
