AE92L-ACMDKA (1989)

Toyota Corolla Cp

Production Aug 1989 - Jun 1991
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )DX,SR5

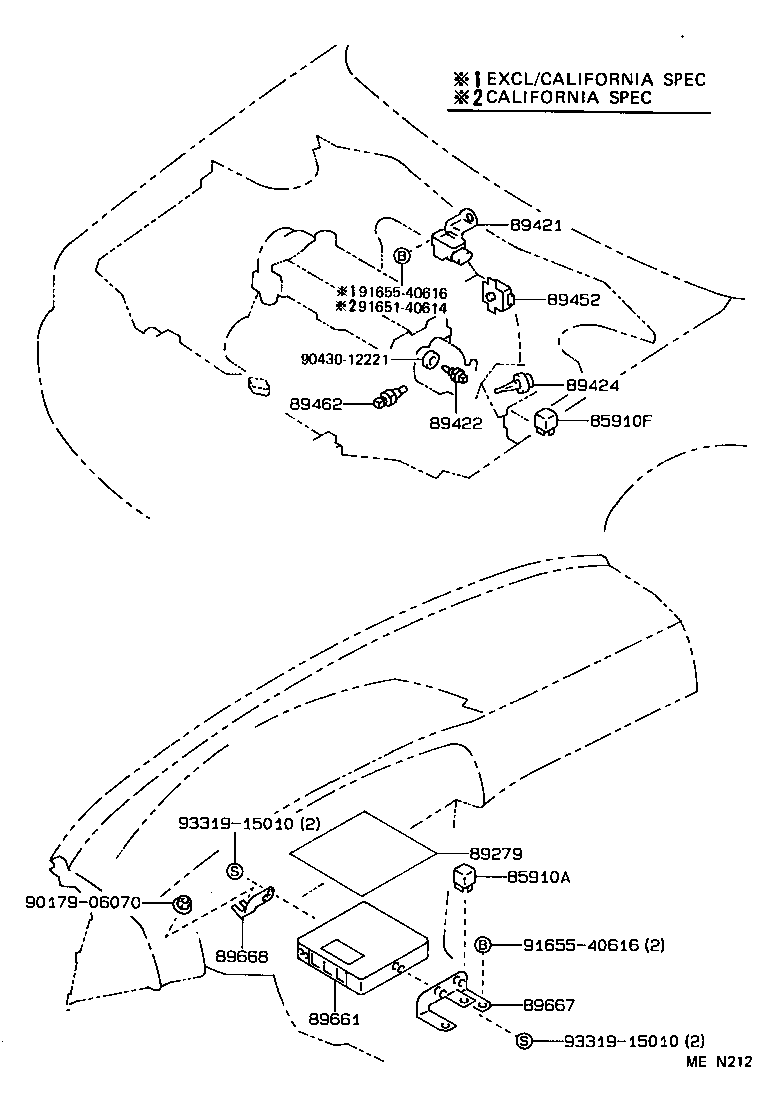

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89421 89422 89424 89452 89462 89661 89667 89668 9017906070 9043012221 9165140614 9165540616 9165540616 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

AE92..DX,SR5

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02006

AE92..EFI

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12020

AE92..EFI

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12040

AE92..DX,SR5

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-12010

AE92..EFI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE92..DX,SR5

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12040

AE92..EFI

 1
89452-32020

AE92..5F..(DX,SR5)

 1
89462 - SWITCH, START INJECTOR TIME
89462-12010

AE92..EFI

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12240

AE92..USA..EFI

CALIFORNIA SPEC

 1
89661-12210

AE92..EFI

 1
89661-12510

AE92..(3FC,5F)..(DX,SR5)..USA

CALIFORNIA SPEC

 1
89661-12491

AE92..(3FC,5F)..(DX,SR5)

 1
89661-12490

AE92..(3FC,5F)..(DX,SR5)

 1
89661-12511

AE92..(3FC,5F)..(DX,SR5)..USA

CALIFORNIA SPEC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12020

AE92..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12040

AE92..EFI

 1
89668-12040

AE92..DX,SR5

 1
Common parts
90179-06070
90430-12221
91651-40614
91655-40616
93319-15010
