AE92L-ACMDKA (1989)
Toyota Corolla Cp
Production
Aug 1989
-
Jun 1991
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

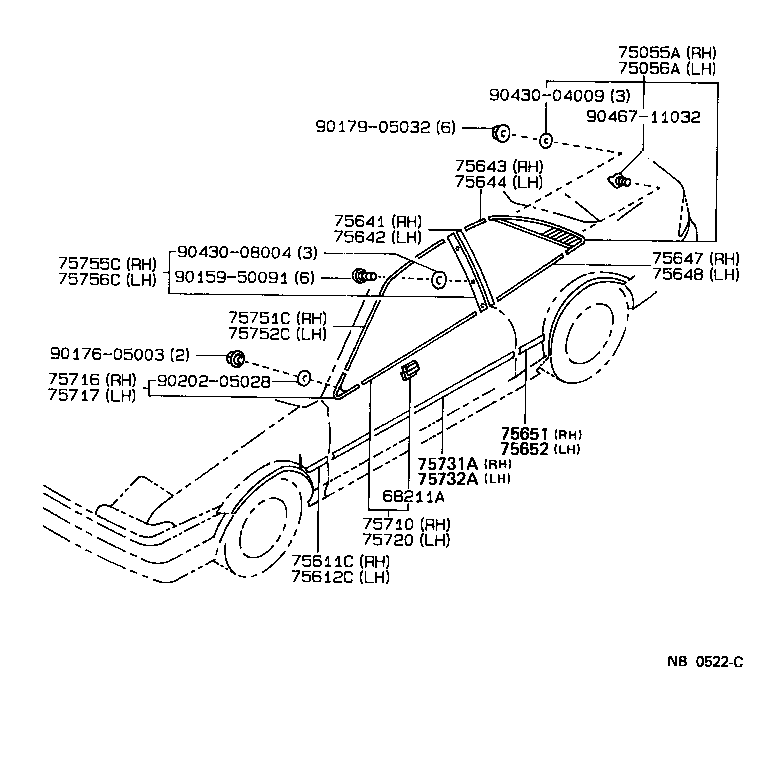

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68211A - CLIP, DOOR BELT MOULDING | ||||
| 68211-12150 |
AE92 |
10 | ||
| 75055A - GARNISH SUB-ASSY, QUARTER, OUTER RH | ||||
| 75055-12100 |
AE92 |
1 | ||
| 75056A - GARNISH SUB-ASSY, QUARTER, OUTER LH | ||||
| 75056-12100 |
AE92 |
1 | ||
| 75611C - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-12340 |
AE92..DX,SR5 |
1 | ||
| 75612C - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-12300 |
AE92..DX,SR5 |
1 | ||
| 75641 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH | ||||
| 75641-12150 |
AE92 |
1 | ||
| 75642 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH | ||||
| 75642-12150 |
AE92 |
1 | ||
| 75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH | ||||
| 75643-12060 |
AE92 |
1 | ||
| 75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH | ||||
| 75644-12060 |
AE92 |
1 | ||
| 75647 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH | ||||
| 75647-12060 |
AE92 |
1 | ||
| 75648 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH | ||||
| 75648-12060 |
AE92 |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-12740 |
AE92..DX,SR5 |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-12740 |
AE92..DX,SR5 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-12450 |
AE92 |
1 | ||
| 75716 - COVER, FRONT DOOR BELT MOULDING END, FRONT RH | ||||
| 75716-12070 |
AE92 |
1 | ||
| 75717 - COVER, FRONT DOOR BELT MOULDING END, FRONT LH | ||||
| 75717-12080 |
AE92 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-12450 |
AE92 |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-1A060 |
AE92..DX,SR5 |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-12790 |
AE92..DX,SR5 |
1 | ||
| 75751C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH | ||||
| 75751-12160 |
AE92 |
1 | ||
| 75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH | ||||
| 75752-12160 |
AE92 |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-12080 |
AE92 |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-12100 |
AE92 |
1 | ||
| Common parts | ||||
| 90159-50091 | ||||
| 90176-05003 | ||||
| 90179-05032 | ||||
| 90202-05028 | ||||
| 90430-04009 | ||||
| 90430-08004 | ||||
| 90467-11032 | ||||
