AE92L-ACMDKA (1989)

Toyota Corolla Cp

Production Aug 1989 - Jun 1991
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

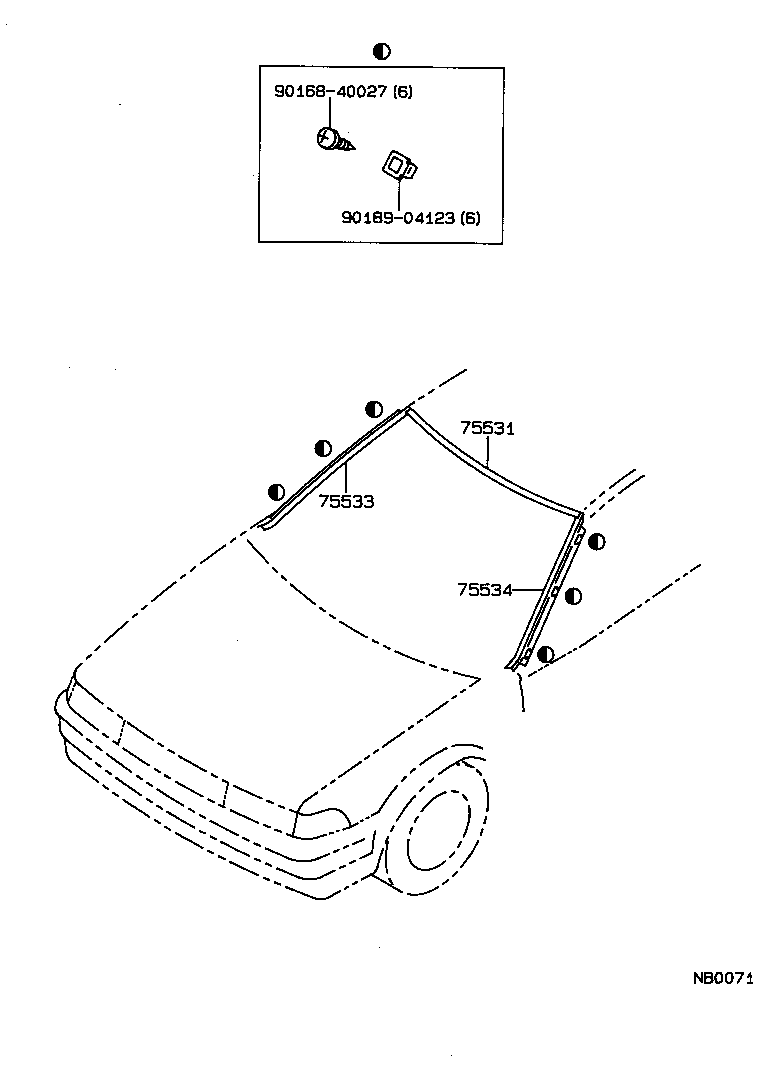

Click highlighted areas on diagram

diagram 75531 75533 75534 9016840027 9018904123
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12330

AE92

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12330

AE92

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12260

AE92

 1
Common parts
90168-40027
90189-04123
