AE92L-ACMDKA (1989)

Toyota Corolla Cp

Production Aug 1989 - Jun 1991
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

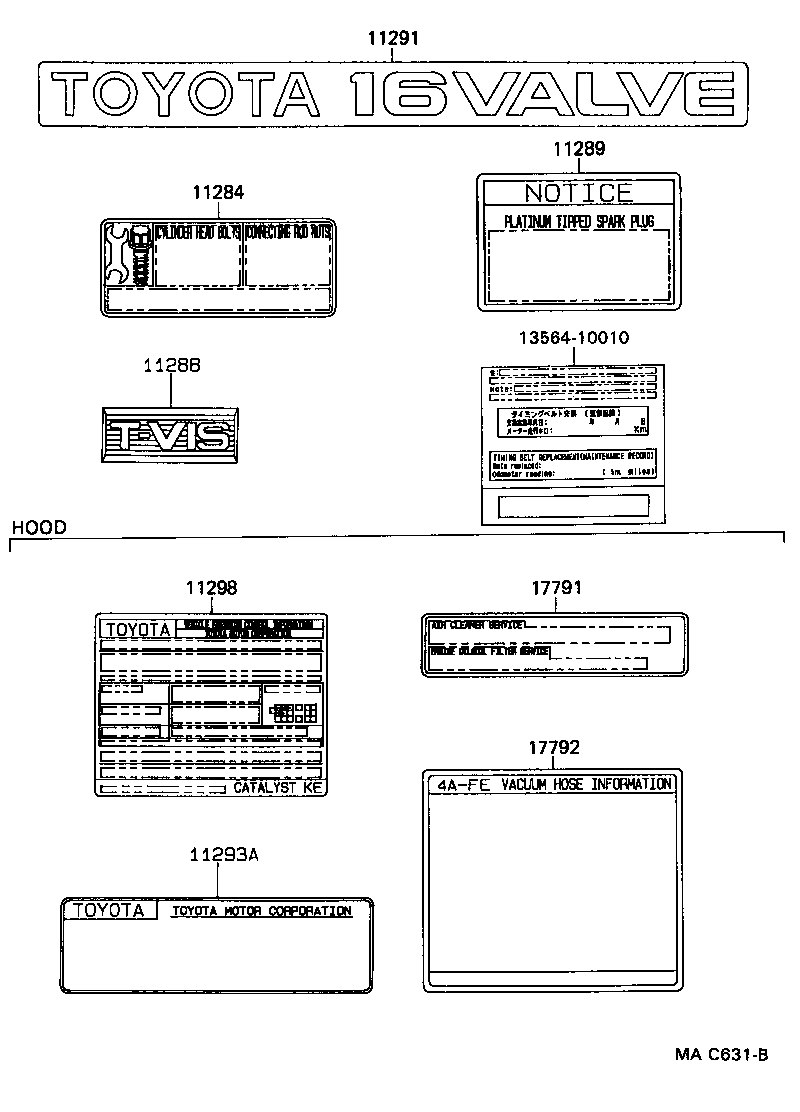

Click highlighted areas on diagram

diagram 11284 11288 11289 11291 11293A 11298 1356410010 17791 17792
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-15120

4AF..AE92

 1
11291-16060

4AFE..AE92

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-16510

4AF..AE92..USA

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

 1
11298-16500

4AF..AE92

 1
11298-16840

4AFE..AE92

 1
11298-1A160

4AFE..AE92

 1
11298-16850

4AFE..AE92..USA

CALIFORNIA PACKAGE

 1
11298-1A170

4AFE..AE92..USA

CALIFORNIA PACKAGE

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-16230

4AF..AE92

 1
17792-16250

4AF..AE92..USA

EX. EMISSION CONTROL(FOR USA CALIFORNIA) & W(POWER STEERING)

 1
17792-16530

4AFE..AE92..USA

CALIFORNIA PACKAGE

 1
17792-16540

4AFE..AE92..USA

CALIFORNIA PACKAGE & W(POWER STEERING)

 1
17792-16240

4AF..AE92..USA

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

 1
17792-16520

4AFE..AE92

 1
Common parts
13564-10010
