AE92L-ACMDKA (1989)

Toyota Corolla Cp

Production Aug 1989 - Jun 1991
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8908- )4AFE

Click highlighted areas on diagram

diagram 17303B 17341B 17341D 17341E 17341E 17342B 17630 17630 17650 23262 23265 23271C 25707 8271130070 9017906143 9017906143 9017906143 9033903005 9033905018 9033905018 9033907016 9044704128 9044708056 9046212090 9046711009 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162160612 9331615016 9331915008 9613541100
Part # Description Qty Price

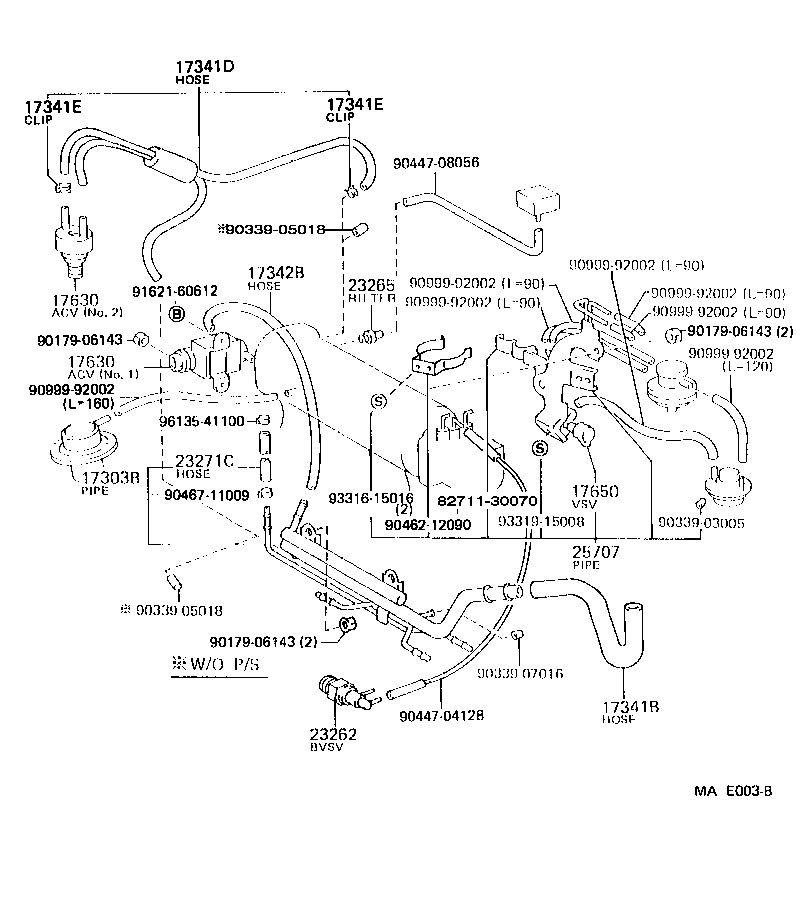

17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16131

4AFE..AE92

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-15170

4AFE..AE92

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17302-16010

4AFE..AE92

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AFE..AE92

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AFE..AE92

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-10029

4AFE..AE92

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

4AF..AE92

 1
17630-16070

4AFE..AE92

NO.1

 1
17630-15060

4AFE..AE92

W(POWER STEERING)

 1
17630-15060

4AFE..AE92..(3FC,5F)..USA

NO.2

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

4AF..AE92

 1
17630-16070

4AFE..AE92

NO.1

 1
17630-15060

4AFE..AE92

W(POWER STEERING)

 1
17630-15060

4AFE..AE92..(3FC,5F)..USA

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12053

4AF..AE92

 1
90910-12091

4AFE..AE92..USA

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

4AFE..AE92

 1
90925-05017

4AF..AE92

 1
23265 - FILTER, GAS, NO.1
90917-11023

4AF..AE92

 1
90917-11022

4AFE..AE92

 1
23271C - HOSE, FUEL
95333-06020

4AFE..AE92

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16090

4AF..AE92..USA

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

 1
25707-16190

4AFE..AE92..USA

 1
25707-16070

4AF..AE92

 1
Common parts
82711-30070
90179-06143
90339-03005
90339-05018
90339-07016
90447-04128
90447-08056
90462-12090
90467-11009
90999-92002
91621-60612
93316-15016
93319-15008
96135-41100
