AE92L-ACMDKA (1989)

Toyota Corolla Cp

Production Aug 1989 - Jun 1991
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

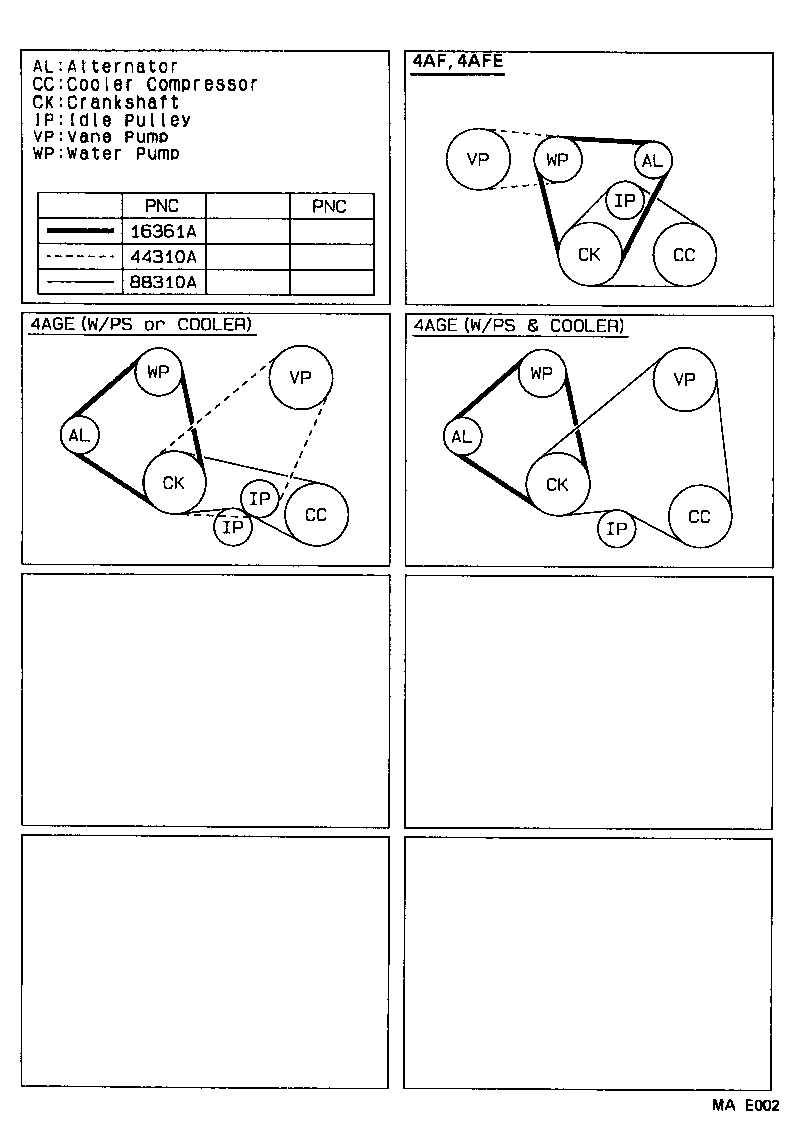

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-00970

4AF..AE92;4AFE..AE92..USA

 1
99365-20970

4AFE..AE92..USA

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50630

AE92..DX,SR5

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02188

AE92..USA..EFI

W(POWER STEERING)

 1
90916-02184

AE92..USA..EFI

W(AIR CONDITIONER)

 1
