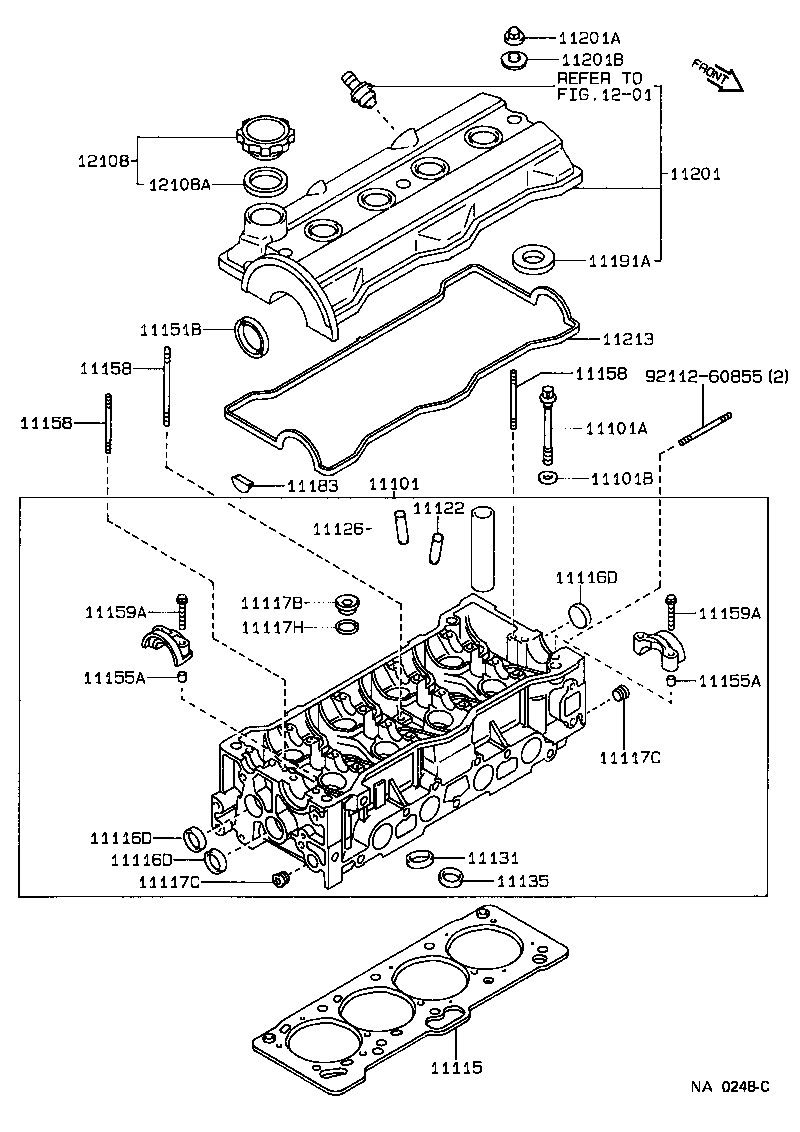

AE92L-ACMDKA (1989)
Toyota Corolla Cp
(8708- )4AF#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-19245 |
4AF..AE92 |
1 | ||
| 11101-19265 |
4AFE..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
1 | ||
| 11101-19255 |
4AFE..AE92 |
1 | ||
| 11101-19235 |
4AF..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90109-10058 |
4AF#,4AGE..AE92 INTAKE |
5 | ||
| 90109-10059 |
4AF#,4AGE..AE92 EXHAUST |
5 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
4AF#,4AGE..AE92 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-16081 |
4AF..AE92 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42800 |
4AF#..AE92 |
3 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42800 |
4AF#..AE92 |
3 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42800 |
4AF#..AE92 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
4AF#..AE92 |
2 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90344-53005 |
4AF..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
2 | ||
| 90344-53005 |
4AF..AE92;4AFE..AE92..USA EX.EMISSION CONTROL(FOR USA CALIFORNIA) |
1 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90344-53005 |
4AF..AE92..USA EX. EMISSION CONTROL(FOR USA CALIFORNIA) |
2 | ||
| 90344-53005 |
4AF..AE92;4AFE..AE92..USA EX.EMISSION CONTROL(FOR USA CALIFORNIA) |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
4AF#..AE92 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-15030 |
4AF#..AE92 STD |
8 | ||
| 11123-15030 |
4AF#..AE92 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-15030 |
4AF#..AE92 O/S 0.05 |
8 | ||
| 11122-15030 |
4AF#..AE92 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-15040 |
4AF#..AE92 STD |
8 | ||
| 11132-15040 |
4AF#..AE92 O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-15030 |
4AF#..AE92 STD |
8 | ||
| 11136-15030 |
4AF#..AE92 O/S 0.03 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35025 |
4AFE..AE92 NOK |
1 | ||
| 90311-35022 |
4AFE..AE92 NOK |
1 | ||
| 90311-35013 |
4AF#..AE92 ARS |
1 | ||
| 90311-35008 |
4AFE..AE92 NOK |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
4AF#..AE92 |
6 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
4AF#..AE92 |
6 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06073 |
4AF#..AE92 L=108,L=108 |
1 | ||
| 90116-06074 |
4AF#..AE92 L=80,L=80 |
2 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06073 |
4AF#..AE92 L=108,L=108 |
1 | ||
| 90116-06074 |
4AF#..AE92 L=80,L=80 |
2 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06073 |
4AF#..AE92 L=108,L=108 |
1 | ||
| 90116-06074 |
4AF#..AE92 L=80,L=80 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
4AF#..AE92 |
22 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
4AF#..AE92 |
22 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-15020 |
4AF#..AE92 |
1 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-15010 |
4AF#..AE92 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-15900 |
4AF..AE92 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-06008 |
4AF#..AE92 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08020 |
4AF#..AE92 |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-15050 |
4AF#..AE92 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-62010 |
4AF..AE92 |
1 | ||
| 12180-13030 |
4AFE,4AGE..AE92 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
4AF#,4AGE..AE92 |
1 | ||
| Common parts | ||||
| 92112-60855 | ||||
| Linked diagrams | ||||
| 1201 | ||||
