AE86R-ESMXS (1983)
Toyota Corolla Coupe
(8305- )

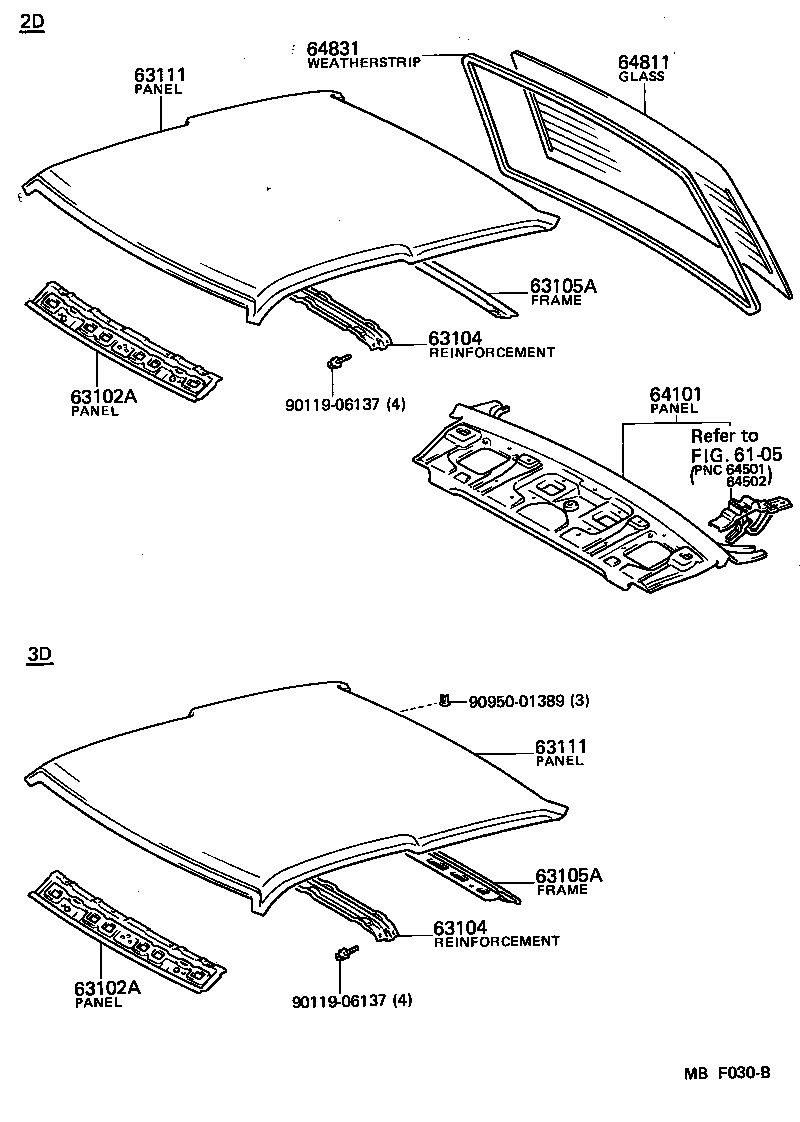

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12010 |
AE86 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12010 |
AE86 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-12090 |
AE86 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-12090 |
AE86 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63133-12130 |
AE86..2D |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63133-12130 |
AE86..2D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12210 |
AE86..2D W/O SUN ROOF |
1 | ||
| 63111-12220 |
AE86..2D W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12210 |
AE86..2D W/O SUN ROOF |
1 | ||
| 63111-12220 |
AE86..2D W/SUN ROOF |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12240 |
AE86..2D |
1 | ||
| 64101-12230 |
AE86..2D |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-12310 |
AE86..2D *EHTT,T=4.0 |
1 | ||
| 64811-12610 |
AE86..2D..GEN *TT,T=4.0 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-12270 |
AE86..2D |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90950-01389 | ||||
| Linked diagrams | ||||
| 6105 | ||||
(8305- )

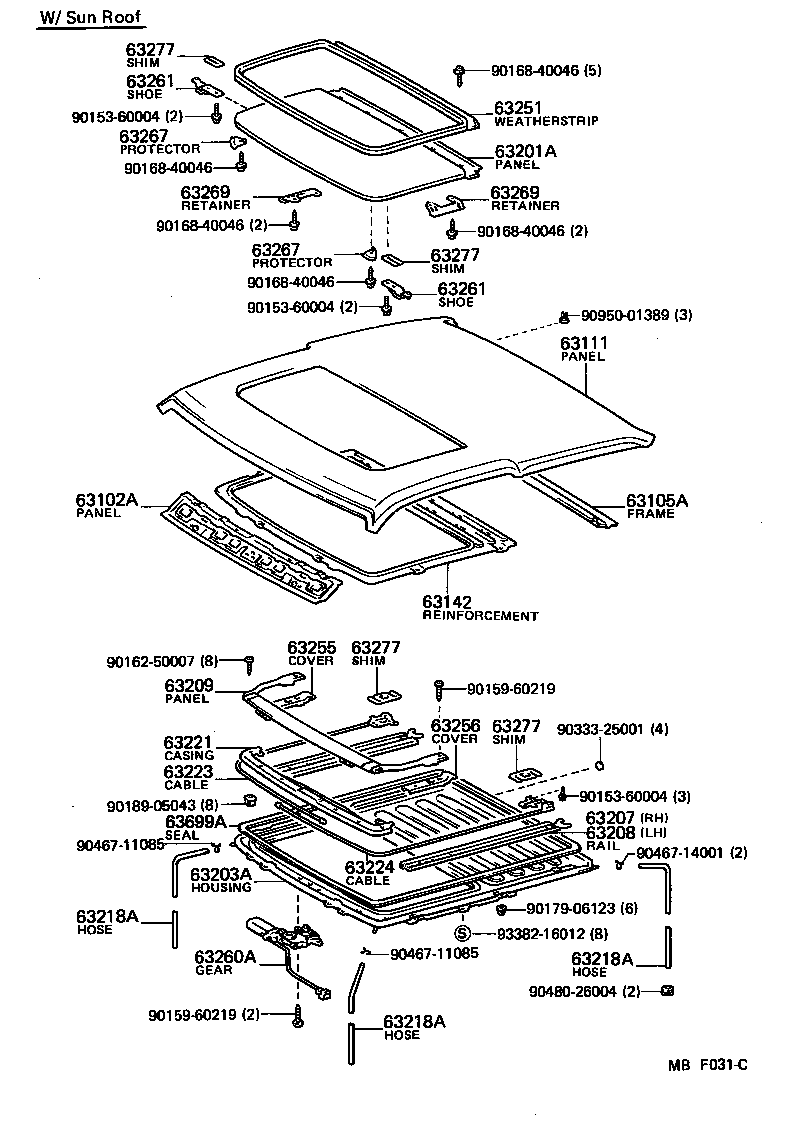

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12010 |
AE86 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63133-12130 |
AE86..2D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12210 |
AE86..2D W/O SUN ROOF |
1 | ||
| 63111-12220 |
AE86..2D W/SUN ROOF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12010 |
AE86 |
1 | ||
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-12090 |
AE86 |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-12091 |
AE86 |
1 | ||
| 63203-12090 |
AE86 |
1 | ||
| 63203-12050 |
AE86..GEN |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-12020 |
AE86..GEN |
1 | ||
| 63207-12040 |
AE86 |
1 | ||
| 63207-12041 |
AE86 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-12040 |
AE86 |
1 | ||
| 63208-12020 |
AE86..GEN |
1 | ||
| 63208-12041 |
AE86 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12020 |
AE86 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12040 |
AE86..2D RR |
2 | ||
| 63249-12030 |
AE86 FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12040 |
AE86..2D RR |
2 | ||
| 63249-12030 |
AE86 FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12040 |
AE86..2D RR |
2 | ||
| 63249-12030 |
AE86 FR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12020 |
AE86..GEN |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-12020 |
AE86 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-12010 |
AE86 |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-12030 |
AE86 |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-12020 |
AE86..GEN |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-12020 |
AE86..GEN |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20010 |
AE86..GEN |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-20010 |
AE86..GEN |
2 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-20010 |
AE86..GEN |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63268-20010 |
AE86 LH |
1 | ||
| 63267-20010 |
AE86 RH |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63268-20010 |
AE86 LH |
1 | ||
| 63267-20010 |
AE86 RH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63279-20010 |
AE86 LH |
1 | ||
| 63269-20010 |
AE86 RH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63279-20010 |
AE86 LH |
1 | ||
| 63269-20010 |
AE86 RH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
AE86 91.5X55 |
1 | ||
| 63277-14020 |
AE86 48X28 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
AE86 91.5X55 |
1 | ||
| 63277-14020 |
AE86 48X28 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
AE86 91.5X55 |
1 | ||
| 63277-14020 |
AE86 48X28 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
AE86 91.5X55 |
1 | ||
| 63277-14020 |
AE86 48X28 |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12020 |
AE86 |
1 | ||
| Common parts | ||||
| 90153-60004 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06123 | ||||
| 90189-05043 | ||||
| 90333-25001 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 90480-26004 | ||||
| 90950-01389 | ||||
| 93382-16012 | ||||
