AE86R-ESMXS (1983)
Toyota Corolla Coupe
Production
May 1983
-
Apr 1987
Engine
4A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

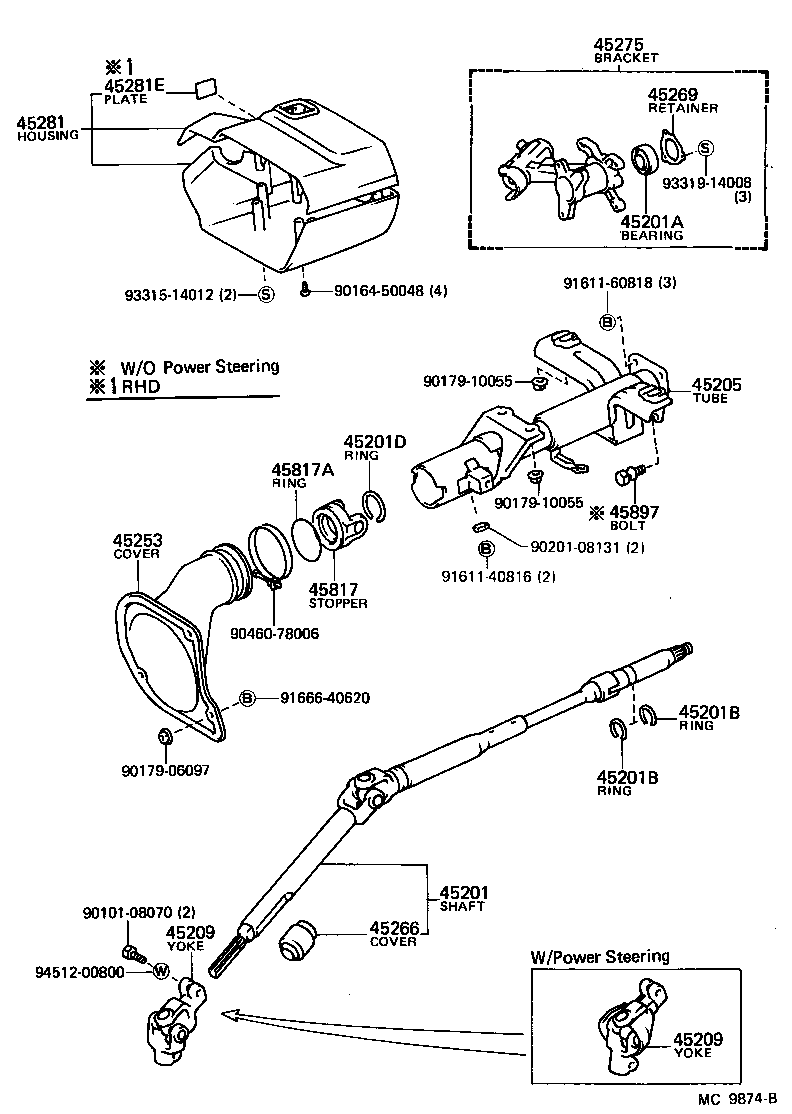

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12280 |
AE86..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE86 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE86 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE86 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE86 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE86 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE86 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12230 |
AE86 W/TILT STEERING |
1 | ||
| 45870-12220 |
AE86 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE86 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE86 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12140 |
AE86..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AE86 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE86 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE86..RHD |
1 | ||
| 45280-12092 |
AE86..RHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-12929 |
AE86..RHD |
1 | ||
| 45286-1293001 |
AE86..RHD W/TILT STEERING,B ACK,BLACK,TRIM2# |
1 | ||
| 45286-12930 |
AE86..RHD W/TILT STEERING |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE86..RHD |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE86 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE86 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE86 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78006 | ||||
| 91611-40816 | ||||
| 91611-60818 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||

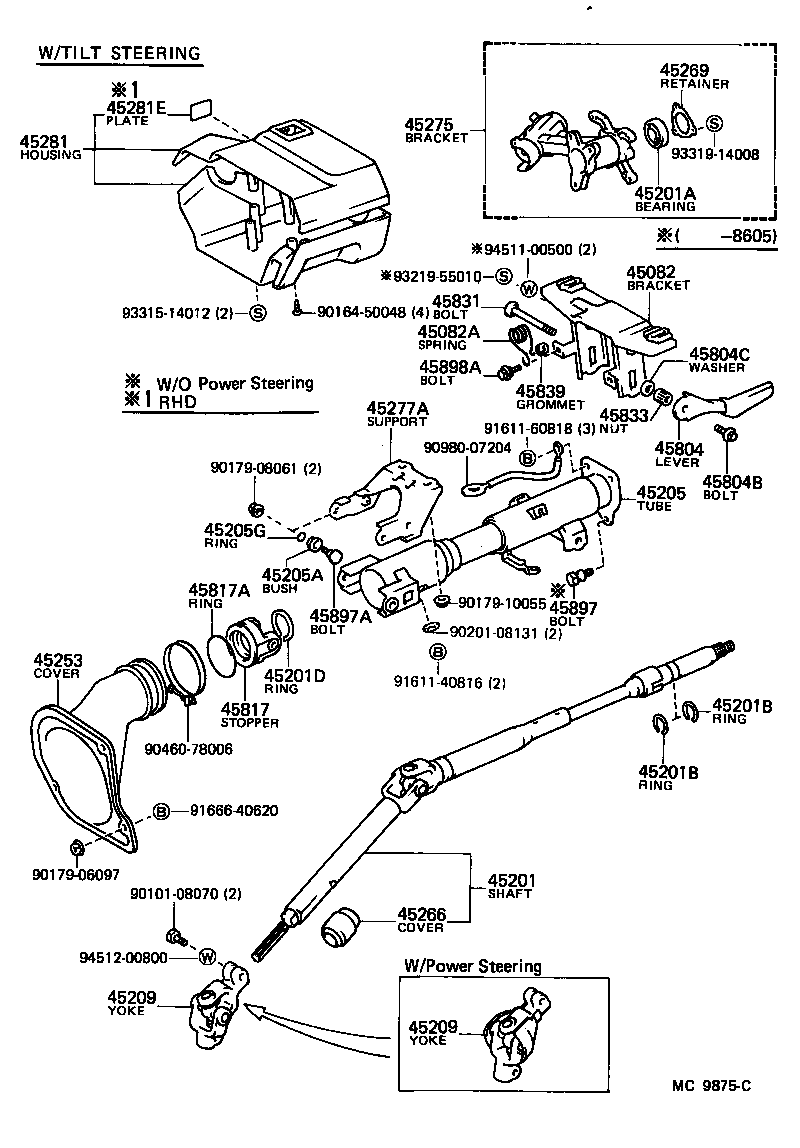

(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-12020 |
AE86..RHD |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-29015 |
AE86 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12280 |
AE86..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE86 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE86 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE86 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE86 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE86 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE86 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12230 |
AE86 W/TILT STEERING |
1 | ||
| 45870-12220 |
AE86 |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
AE86 |
4 | ||
| 45205G - RING, O(FOR STEERING COLUMN TUBE) | ||||
| 90301-11005 |
AE86 |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE86 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE86 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12140 |
AE86..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AE86 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE86 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE86..RHD |
1 | ||
| 45280-12092 |
AE86..RHD |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-12020 |
AE86 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-12929 |
AE86..RHD |
1 | ||
| 45286-1293001 |
AE86..RHD W/TILT STEERING,B ACK,BLACK,TRIM2# |
1 | ||
| 45286-12930 |
AE86..RHD W/TILT STEERING |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE86..RHD |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-12010 |
AE86 |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-08060 |
AE86 |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-08029 |
AE86 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE86 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE86 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-20010 |
AE86 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20010 |
AE86 |
1 | ||
| 45839 - GROMMET, RETURN SPRING | ||||
| 45839-20010 |
AE86 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE86 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-26010 |
AE86 |
2 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-20020 |
AE86 |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-08061 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78006 | ||||
| 90980-07204 | ||||
| 91611-40816 | ||||
| 91611-60818 | ||||
| 91666-40620 | ||||
| 93219-55010 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
