AE86R-ECMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 55915 55931 55937 8302 8401 8401 87284 8858512020 8889912250 9048013015 9356614512 9356654512 9356755016
Part # Description Qty Price

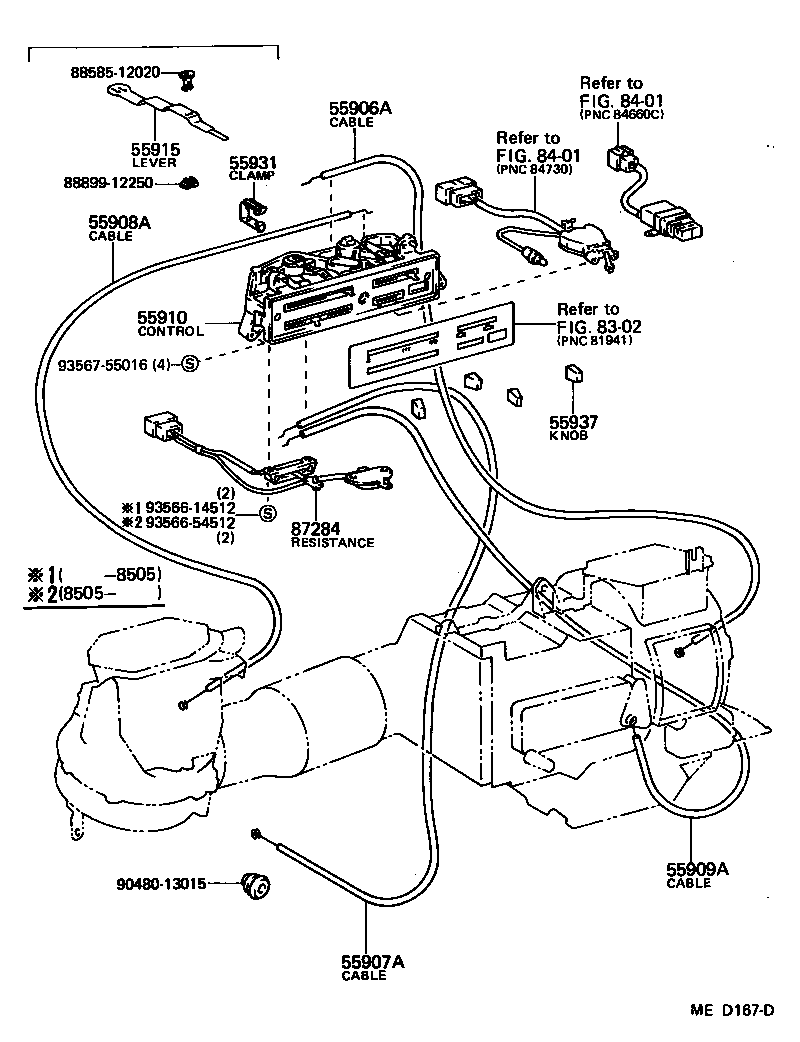

55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12210

AE86

 1
55906-12170

AE86..RHD

 1
55906-12170

AE86

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12220

AE86..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12180

AE86..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12160

AE86..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12420

AE86..GEN

W/O HEATER OR *BV

 1
55910-12390

AE86..RHD

W/HEATER

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

AE86..ARL,GEN,ME

 4
Common parts
88585-12020
88899-12250
90480-13015
93566-14512
93566-54512
93567-55016
Linked diagrams
8302
8401

(8305- )RHD

Click highlighted areas on diagram

diagram 87211 87211A 87211B 87211C 87214 87214A 87215 8857812160 8857812170 9018305103 9354015016 9354055014 9356654514 9356755016 9356755016 9356755016 9356855014 9356855014
Part # Description Qty Price

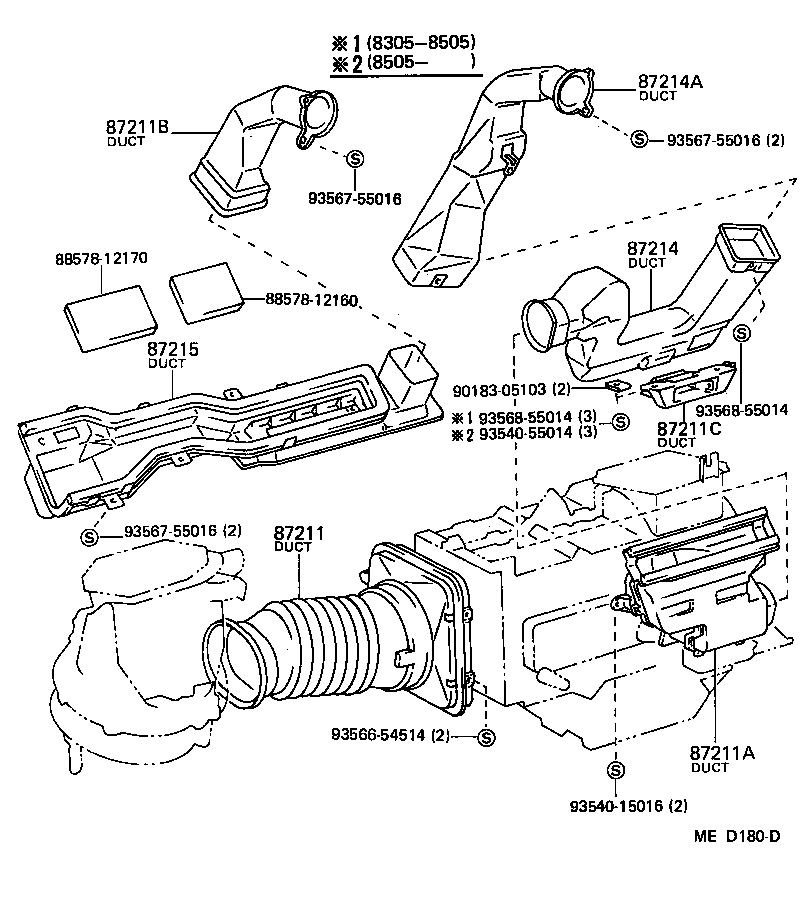

87211 - DUCT, AIR, NO.1
87201-12020

AE86..RHD

 1
87211A - DUCT, AIR, NO.2
87201-12060

AE86..RHD

 1
87211B - DUCT, AIR, NO.3
55845-12090

AE86..RHD

 1
87211C - DUCT, AIR, NO.4
55690-12010

AE86..ARL,GEN,ME

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-12110

AE86..RHD..(ARL,GEN)

W/COOLER

 1
55085-12090

AE86..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-12110

AE86..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12090

AE86..RHD

 1
Common parts
88578-12160
88578-12170
90183-05103
93540-15016
93540-55014
93566-54514
93567-55016
93568-55014
