AE86R-ECMXS (1983)
Toyota Corolla Coupe
(8305- )5F

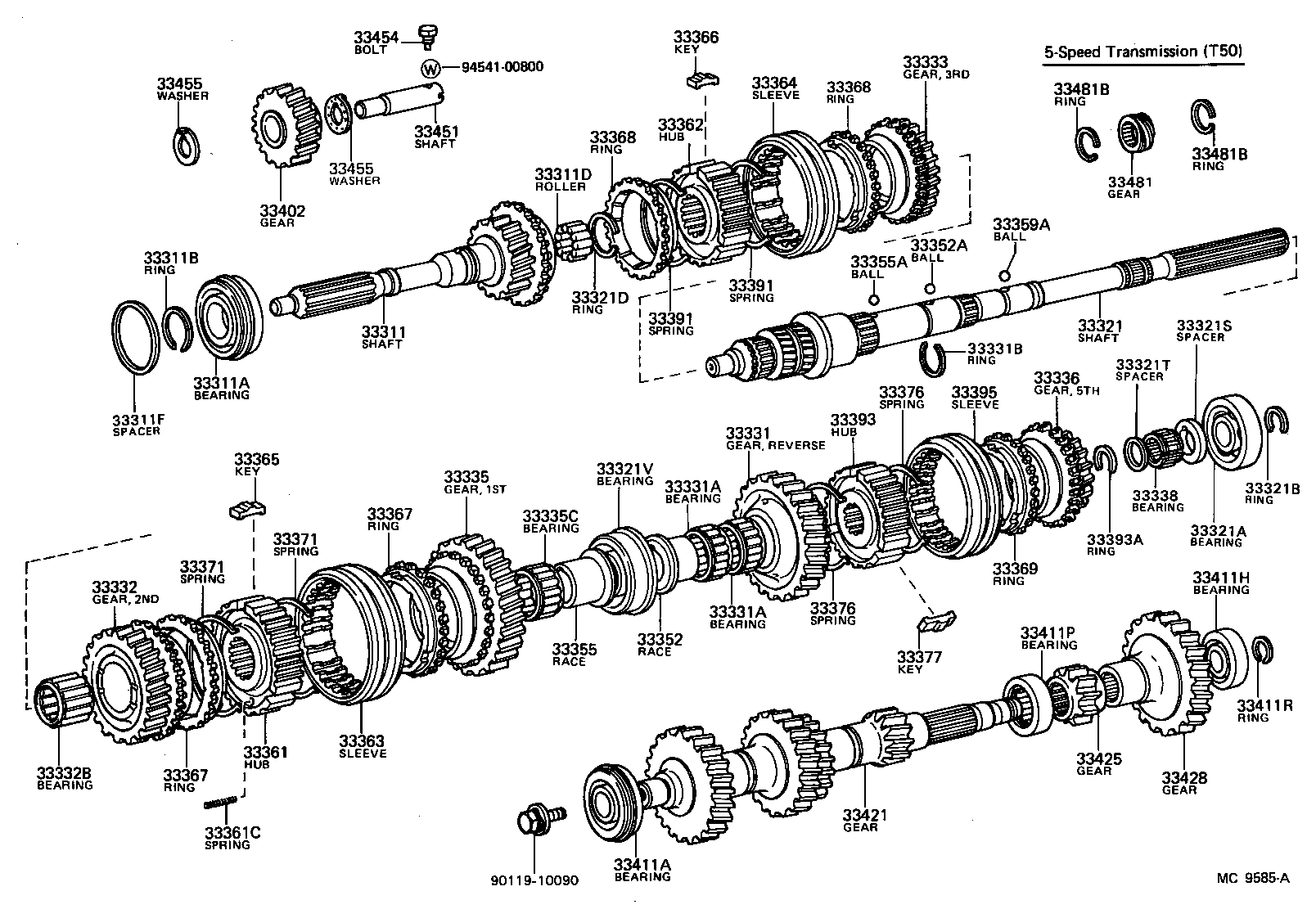

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-12010 |
AE86..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30020 |
AE86..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-28068 |
AE86..5F T=2.45-2.50 |
1 | ||
| 90520-28067 |
AE86..5F T=2.35-2.40 |
1 | ||
| 90520-28207 |
AE86..5F T=2.45-2.50,T=2.55-2.60 |
1 | ||
| 90520-28206 |
AE86..5F T=2.50-2.55 |
1 | ||
| 90520-28205 |
AE86..5F T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
AE86..5F |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-61003 |
AE86..5F T=2.045 |
1 | ||
| 90560-61002 |
AE86..5F T=1.935 |
1 | ||
| 90560-61001 |
AE86..5F T=1.825 |
1 | ||
| 90560-61006 |
AE86..5F T=2.375 |
1 | ||
| 90560-61004 |
AE86..5F T=2.155 |
1 | ||
| 90560-61005 |
AE86..5F T=2.265 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-12100 |
AE86..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25018 |
AE86..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-23029 |
AE86..5F T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-23026 |
AE86..5F T=2.35-2.40,T=2.35-2.40 |
1 | ||
| 90520-23028 |
AE86..5F T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 90520-23031 |
AE86..5F T=2.60-2.65,T=2.60-2.65 |
1 | ||
| 90520-23027 |
AE86..5F T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-23032 |
AE86..5F T=2.65-2.70,T=2.65-2.70 |
1 | ||
| 90520-23030 |
AE86..5F T=2.55-2.60,T=2.55-2.60 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30202 |
AE86..5F T=2.05-2.10,T=2.05-2.10 |
1 | ||
| 90520-30203 |
AE86..5F T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-30201 |
AE86..5F T=2.00-2.05,T=2.00-2.05 |
1 | ||
| 90520-30200 |
AE86..5F T=1.95-2.00,T=1.95-2.00 |
1 | ||
| 90520-30204 |
AE86..5F T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 33321S - SPACER (FOR GEAR STOPPER) | ||||
| 90561-25001 |
AE86..5F |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-27003 |
AE86..5F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90369-30027 |
AE86..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-14013 |
AE86..5F |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37002 |
AE86..5F |
2 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37002 |
AE86..5F |
2 | ||
| 33331B - RING, SET (FOR REVERSE GEAR) | ||||
| 90520-27004 |
AE86..5F T=2.75-2.80 |
1 | ||
| 90520-27003 |
AE86..5F T=2.70-2.75 |
1 | ||
| 90520-27006 |
AE86..5F T=2.85-2.90 |
1 | ||
| 90520-27010 |
AE86..5F T=3.05-3.10 |
1 | ||
| 90520-27009 |
AE86..5F T=3.00-3.05 |
1 | ||
| 90520-27007 |
AE86..5F T=2.90-2.95 |
1 | ||
| 90520-27005 |
AE86..5F T=2.80-2.85 |
1 | ||
| 90520-27011 |
AE86..5F T=3.10-3.15 |
1 | ||
| 90520-27008 |
AE86..5F T=2.95-3.00 |
1 | ||
| 90520-27012 |
AE86..5F T=3.15-3.20 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12020 |
AE86..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-37004 |
AE86..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12040 |
AE86..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-14011 |
AE86..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37004 |
AE86..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-14031 |
AE86..5F |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-27003 |
AE86..5F |
1 | ||
| 33352 - RACE, REVERSE GEAR BEARING INNER | ||||
| 33344-14012 |
AE86..5F |
1 | ||
| 33352A - KEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AE86..5F |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33345-14011 |
AE86..5F |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AE86..5F |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AE86..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-14010 |
AE86..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-14010 |
AE86..5F |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-14013 |
AE86..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-14010 |
AE86..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-14011 |
AE86..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-14010 |
AE86..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
AE86..5F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
AE86..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
AE86..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
AE86..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
AE86..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
AE86..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
AE86..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14040 |
AE86..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14040 |
AE86..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-14011 |
AE86..5F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
AE86..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
AE86..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-14020 |
AE86..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24013 |
AE86..5F T=2.80-2.85,T=2.80-2.85 |
1 | ||
| 90520-24010 |
AE86..5F T=2.65-2.70,T=2.65-2.70 |
1 | ||
| 90520-24009 |
AE86..5F T=2.60-2.65,T=2.60-2.65 |
1 | ||
| 90520-24016 |
AE86..5F T=2.95-3.00,T=2.95-3.00 |
1 | ||
| 90520-24018 |
AE86..5F T=3.05-3.10,T=3.05-3.10 |
1 | ||
| 90520-24017 |
AE86..5F T=3.00-3.05,T=3.00-3.05 |
1 | ||
| 90520-24012 |
AE86..5F T=2.75-2.80,T=2.75-2.80 |
1 | ||
| 90520-24014 |
AE86..5F T=2.85-2.90,T=2.85-2.90 |
1 | ||
| 90520-24022 |
AE86..5F T=3.25-3.30,T=3.25-3.30 |
1 | ||
| 90520-24021 |
AE86..5F T=3.20-3.25,T=3.20-3.25 |
1 | ||
| 90520-24020 |
AE86..5F T=3.15-3.20,T=3.15-3.20 |
1 | ||
| 90520-24011 |
AE86..5F T=2.70-2.75,T=2.70-2.75 |
1 | ||
| 90520-24023 |
AE86..5F T=3.30-3.35,T=3.30-3.35 |
1 | ||
| 90520-24015 |
AE86..5F T=2.90-2.95,T=2.90-2.95 |
1 | ||
| 90520-24019 |
AE86..5F T=3.10-3.15,T=3.10-3.15 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14013 |
AE86..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-14011 |
AE86..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-20004 |
AE86..5F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-20001 |
AE86..5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-30015 |
AE86..5F |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18266 |
AE86..5F T=1.60-1.65,T=1.60-1.65 |
1 | ||
| 90520-18264 |
AE86..5F T=2.00-2.05 |
1 | ||
| 90520-18265 |
AE86..5F T=1.80-1.85 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-14080 |
AE86..5F |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-14010 |
AE86..5F |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-14030 |
AE86..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-14010 |
AE86..5F |
1 | ||
| 33454 - BOLT, SHAFT RETAINING | ||||
| 33454-12010 |
AE86..5F |
1 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
AE86..5F |
2 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
AE86..5F |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-14040 |
AE86..EUG;AE86..5F..SR;AE86..GT..(GEN,ME) N=6 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-23025 |
AE86..5F |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-23025 |
AE86..5F |
2 | ||
| Common parts | ||||
| 90119-10090 | ||||
| 94541-00800 | ||||
