AE86R-ECMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4A

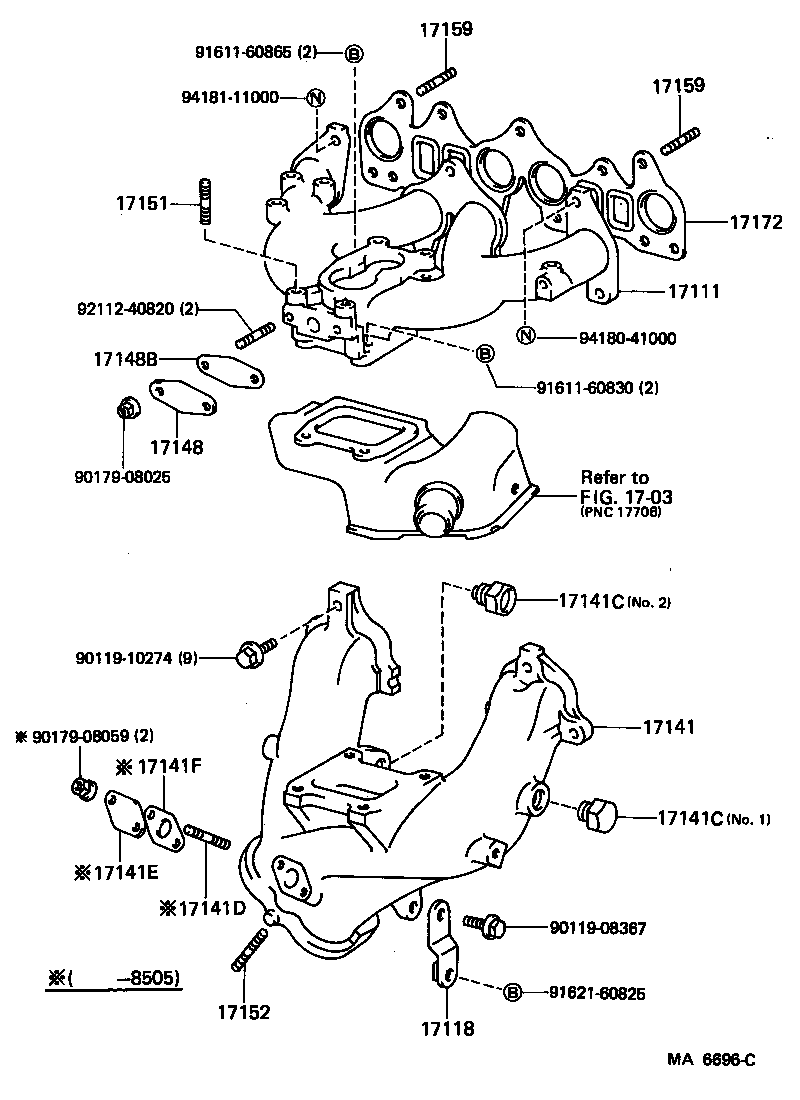

Click highlighted areas on diagram

diagram 1703 17111 17118 17141 17141C 17141C 17141D 17141E 17141F 17148 17148B 17151 17152 17159 17159 17172 9011908367 9011910274 9017908025 9017908059 9161160830 9161160865 9162160825 9211240820 9418041000 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-16010

4A,4AC..AE86

 1
17118 - STAY, MANIFOLD
17118-15030

4A,4AC..AE86

 1
17141 - MANIFOLD, EXHAUST
17141-16061

4A..AE86

 1
17141-16060

4A..AE86

 1
17141C - PLUG, W/HEAD STRAIGHT SCREW
90341-20086

4A..AE86

NO.1

 1
90341-24004

4A..AE86

NO.2

 1
17141C - PLUG, W/HEAD STRAIGHT SCREW
90341-20086

4A..AE86

NO.1

 1
90341-24004

4A..AE86

NO.2

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

4A..AE86

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-16010

4A..AE86

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-32010

4A..AE86

 1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
25617-14010

4A..AE86

 1
17148B - GASKET, EGR INLET
25629-15011

4A..AE86

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

4A..AE86

 4
92112-40832

4A,4AC..AE86

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4A,4AC,4AG#..AE86

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4A,4AC..AE86

L=44,S=12 & 20

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4A,4AC..AE86

L=44,S=12 & 20

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-14010

4A,4AC..AE86

 1
Common parts
90119-08367
90119-10274
90179-08025
90179-08059
91611-60830
91611-60865
91621-60825
92112-40820
94180-41000
94181-11000
Linked diagrams
1703
