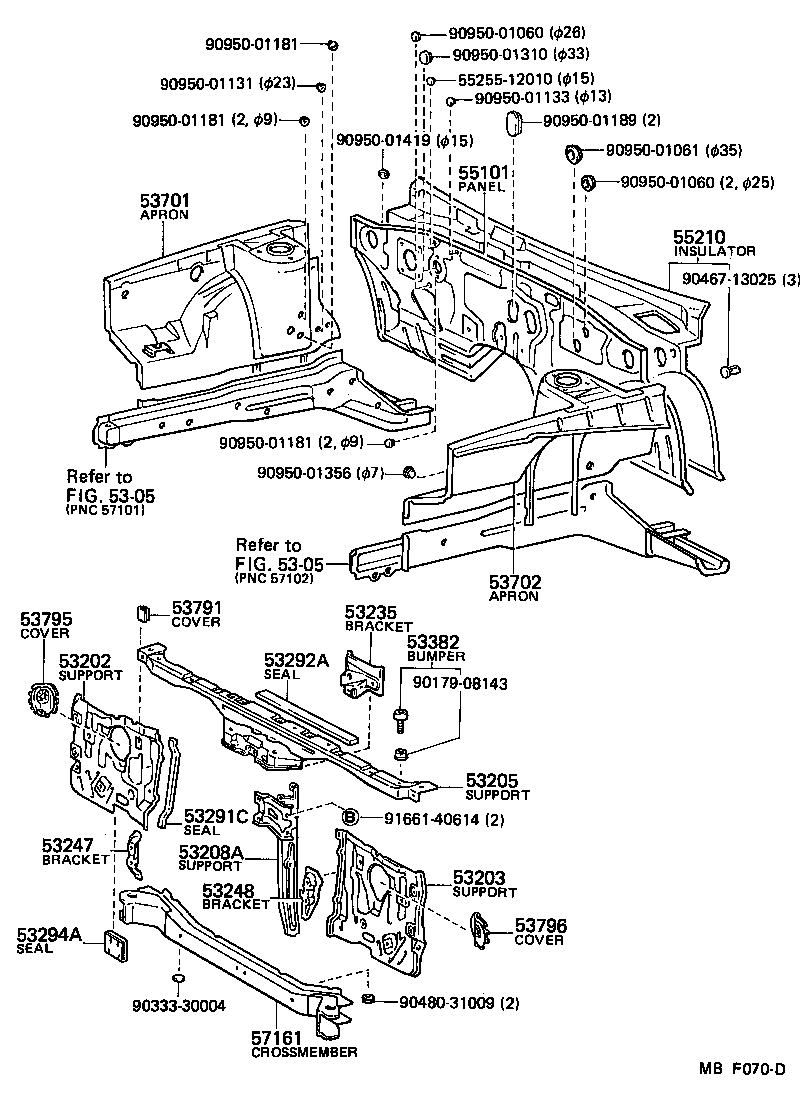

Toyota Corolla coupe AE86 FRONT FENDER APRON & DASH PANEL

Part #	Description	Period	Qty
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-12210	AE86	05/1983 - 08/1983	1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-12190	AE86	05/1983 - 08/1983	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-12904	AE86	08/1983 - 05/1985	1
53216-12903	AE86	05/1983 - 08/1983	1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-12220	AE86..ARL,GEN	05/1983 - 05/1985	1
53247 - BRACKET, HEADLAMP MOUNTING, INNER RH
53271-12030	AE86..ARL,EUR,GEN	05/1983 - 04/1987	1
53248 - BRACKET, HEADLAMP MOUNTING, INNER LH
53272-12020	AE86..ARL,EUR,GEN	05/1983 - 04/1987	1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-12090	AE86..ARL,GEN,ME;AE86..LHD..GT..EUR	05/1983 - 07/1987	2
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-12010	AE86..ARL,GEN,ME;AE86..LHD..GT..EUR	05/1983 - 07/1987	1
53294A - SEAL, COOL AIR INTAKE PIPE
53294-12040	AE86..ARL,GEN,ME	05/1983 - 07/1987	2
53382 - BUMPER, HOOD, FRONT
53382-12050	AE86	05/1983 - 07/1987	2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-12917	AE86..SR	05/1983 - 04/1987	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-12923	AE86..SR	05/1983 - 05/1985	1
53791 - COVER, COOL AIR INTAKE HOLE
53791-12040	AE86..ARL,GEN,ME;AE86..LHD..GT..EUR	05/1983 - 07/1987	1
53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH
53795-12020	AE86..ARL,GEN,ME;AE86..LHD..GT..EUR	05/1983 - 07/1987	1
53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH
53796-12010	AE86..ARL,GEN,ME;AE86..LHD..GT..EUR	05/1983 - 07/1987	1
55101 - PANEL SUB-ASSY, DASH
55101-12908	AE86..RHD	05/1983 - 04/1987	1
55210 - INSULATOR ASSY, DASH PANEL
55210-12200	AE86..RHD	05/1983 - 04/1987	1
57161 - CROSSMEMBER, FRONT
57161-12904	AE86	05/1983 - 08/1983	1
Common parts
55255-12010
90179-08143
90333-30004
90467-13025
90480-31009
90950-01060
90950-01061
90950-01131
90950-01133
90950-01181
90950-01189
90950-01310
90950-01356
90950-01419
91661-40614
Linked diagrams
5305

AE86R-ECMXCQ (1983)

(8305- )
