8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE86L-ESPXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987

Engine 4A

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8305- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty

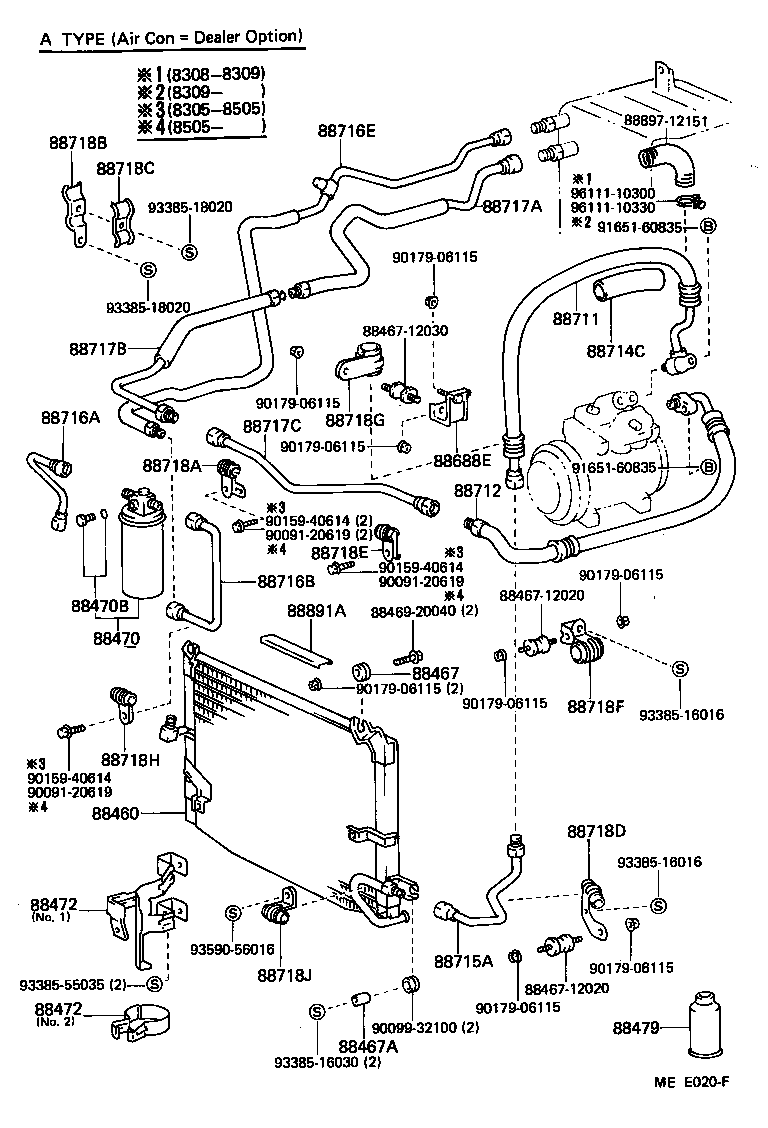

88460 - CONDENSER ASSY, COOLER
88460-12220	AE86..ARL,GEN,ME A TYPE	05/1983 - 05/1985	1
88460-12210	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88460-12221	AE86..GEN A TYPE	05/1985 - 04/1987	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20040	AE86..ARL,GEN,ME	05/1983 - 07/1987	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-14050	AE86..ARL,GEN,ME	05/1983 - 07/1987	2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12010	AE86..ARL,GEN,ME NO.2	05/1983 - 07/1987	1
88473-12020	AE86..LHD..(GEN,ME) NO.1	05/1983 - 05/1985	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12010	AE86..ARL,GEN,ME NO.2	05/1983 - 07/1987	1
88473-12020	AE86..LHD..(GEN,ME) NO.1	05/1983 - 05/1985	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AE86..ARL,GEN,ME 400G	05/1983 - 07/1987	2
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-12190	AE86..ARL,GEN,ME A TYPE	05/1983 - 07/1987	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12280	AE86..LHD..SR..GEN	05/1983 - 10/1983	1
88711-12310	AE86..LHD..SR..GEN	10/1983 - 05/1985	1
88711-12311	AE86..SR	05/1985 - 04/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12430	AE86..LHD..(GEN,ME)	05/1983 - 05/1985	1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-14020	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88714-12090	AE86..ARL,GEN,ME A TYPE	05/1983 - 05/1985	2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12250	AE86..LHD..(GEN,ME)	05/1983 - 05/1985	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12690	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12710	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12700	AE86..LHD..(GEN,ME)	05/1983 - 03/1987	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12200	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88717-12201	AE86..LHD..(GEN,ME) B TYPE	05/1985 - 04/1987	1
88717-12280	AE86..LHD..(GEN,ME) A TYPE	05/1983 - 04/1987	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12290	AE86..LHD..(GEN,ME) A TYPE	05/1983 - 05/1985	1
88717-12210	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88717-12291	AE86..LHD..GEN A TYPE	05/1985 - 04/1987	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-12211	AE86..LHD..GEN A TYPE	05/1985 - 04/1987	1
88717-12210	AE86..LHD..(GEN,ME) A TYPE	05/1983 - 05/1985	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-12680	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-12670	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-12710	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-12760	AE86..ARL,GEN,ME A TYPE	05/1983 - 07/1987	1
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-14480	AE86..LHD..GEN A TYPE	05/1985 - 04/1987	1
88718-14480	AE86..LHD..(GEN,ME) A TYPE	08/1983 - 05/1985	1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-12690	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-12700	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)
88718-12280	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88718-12720	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88891A - PACKING A (FOR COOLER)
88578-12120	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
Common parts
88467-12020
88467-12030
88469-20040
88897-12151
90091-20619
90099-32100
90159-40614
90179-06115
91651-60835
93385-16016
93385-16030
93385-18020
93385-55035
93590-56016
96111-10300
96111-10330

(8505- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty

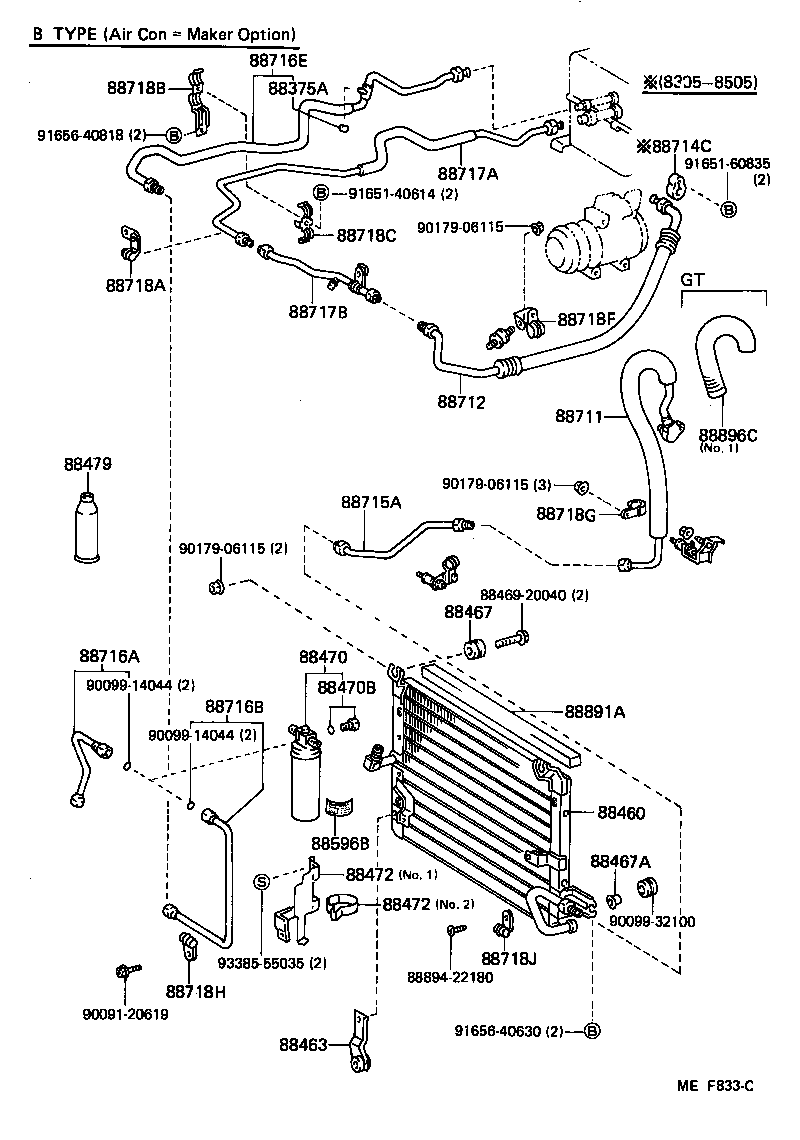

88460 - CONDENSER ASSY, COOLER
88460-12220	AE86..ARL,GEN,ME A TYPE	05/1983 - 05/1985	1
88460-12210	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88460-12221	AE86..GEN A TYPE	05/1985 - 04/1987	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-12300	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20040	AE86..ARL,GEN,ME	05/1983 - 07/1987	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-14050	AE86..ARL,GEN,ME	05/1983 - 07/1987	2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12010	AE86..ARL,GEN,ME NO.2	05/1983 - 07/1987	1
88473-12020	AE86..LHD..(GEN,ME) NO.1	05/1983 - 05/1985	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12010	AE86..ARL,GEN,ME NO.2	05/1983 - 07/1987	1
88473-12020	AE86..LHD..(GEN,ME) NO.1	05/1983 - 05/1985	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AE86..ARL,GEN,ME 400G	05/1983 - 07/1987	2
88596B - PLATE, CAUTION, NO.1
88596-12010	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 08/1986	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12280	AE86..LHD..SR..GEN	05/1983 - 10/1983	1
88711-12310	AE86..LHD..SR..GEN	10/1983 - 05/1985	1
88711-12311	AE86..SR	05/1985 - 04/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12430	AE86..LHD..(GEN,ME)	05/1983 - 05/1985	1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-14020	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88714-12090	AE86..ARL,GEN,ME A TYPE	05/1983 - 05/1985	2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12250	AE86..LHD..(GEN,ME)	05/1983 - 05/1985	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12690	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12710	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12700	AE86..LHD..(GEN,ME)	05/1983 - 03/1987	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12200	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88717-12201	AE86..LHD..(GEN,ME) B TYPE	05/1985 - 04/1987	1
88717-12280	AE86..LHD..(GEN,ME) A TYPE	05/1983 - 04/1987	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12290	AE86..LHD..(GEN,ME) A TYPE	05/1983 - 05/1985	1
88717-12210	AE86..LHD..(GEN,ME) B TYPE	05/1983 - 05/1985	1
88717-12291	AE86..LHD..GEN A TYPE	05/1985 - 04/1987	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-12680	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-12670	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-12710	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-12690	AE86..LHD..(GEN,ME)	05/1983 - 07/1987	1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-12700	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)
88718-12280	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88718-12720	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
88891A - PACKING A (FOR COOLER)
88578-12120	AE86..ARL,GEN,ME	05/1983 - 07/1987	1
Common parts
88469-20040
88894-22180
90091-20619
90099-14044
90099-32100
90179-06115
91651-40614
91651-60835
91656-40630
91656-40818
93385-55035

AE86L-ESPXS (1983)

(8305- )LHD

(8505- )LHD

Part Price Details
