AE86L-ESPXS (1983)
Toyota Corolla Coupe
Production
May 1983
-
Apr 1987
Engine
4A
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )LHD

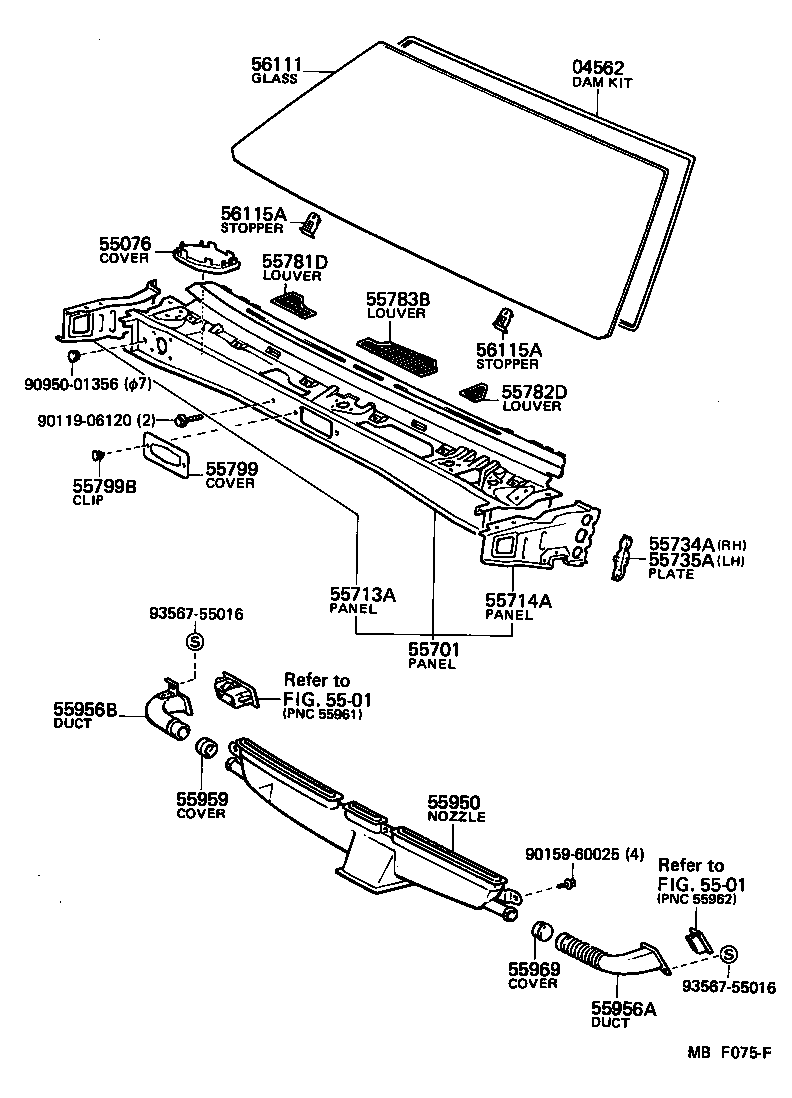

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30030 |
AE86 |
1 | ||
| 55076 - COVER, HEATER AIR DUCT HOLE | ||||
| 55077-12050 |
AE86..LHD..GEN;AE86..LHD..(EUG,FRG) |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-12250 |
AE86..4FC |
1 | ||
| 55700-12420 |
AE86..LHD..SR |
1 | ||
| 55700-12240 |
AE86..LHD..SR |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-12050 |
AE86 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-12050 |
AE86 |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-12060 |
AE86 |
1 | ||
| 55735A - PLATE, WATER GUARD, LH | ||||
| 55735-12060 |
AE86 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55783-12150 |
AE86..LHD |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-12010 |
AE86..LHD |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55784-12020 |
AE86..LHD |
1 | ||
| 55799 - COVER, WIPER MOTOR | ||||
| 55793-24010 |
AE86 |
1 | ||
| 55799B - CLIP, WIPER MOTOR COVER, OUTER | ||||
| 90467-08023 |
AE86 |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12090 |
AE86..LHD |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55970-12060 |
AE86..LHD |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55980-12050 |
AE86..LHD |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
AE86..LHD..(GEN,ME) |
1 | ||
| 55969 - COVER, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55959-14010 |
AE86..LHD..(GEN,ME) |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-12480 |
AE86..GEN;AE86..EUG *TZT,T=5.0 |
1 | ||
| 56111-12480 |
AE86..EUR,GEN *TZT,T=5.0 |
1 | ||
| 56111-12490 |
AE86..EUR,GEN *TL,T=5.3 |
1 | ||
| 56111-12480 |
AE86..GEN;AE86..EUG,FRG *TZT,T=5.0 |
1 | ||
| 56111-12500 |
AE86..LHD..(GEN,ME) *TL,T=5.3,W/SUN SHADE |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-12010 |
AE86..GEN;AE86..EUG *TZT |
2 | ||
| 56115-12010 |
AE86..EUR,GEN *TZT |
2 | ||
| 56115-12010 |
AE86..GEN;AE86..EUG,FRG *TZT |
2 | ||
| 56115-12020 |
AE86 *TL,*LAM |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-12010 |
AE86..GEN;AE86..EUG *TZT |
2 | ||
| 56115-12010 |
AE86..EUR,GEN *TZT |
2 | ||
| 56115-12010 |
AE86..GEN;AE86..EUG,FRG *TZT |
2 | ||
| 56115-12020 |
AE86 *TL,*LAM |
2 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90159-60025 | ||||
| 90950-01356 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
