AE86L-ESPXS (1983)
Toyota Corolla Coupe
Production
May 1983
-
Apr 1987
Engine
4A
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

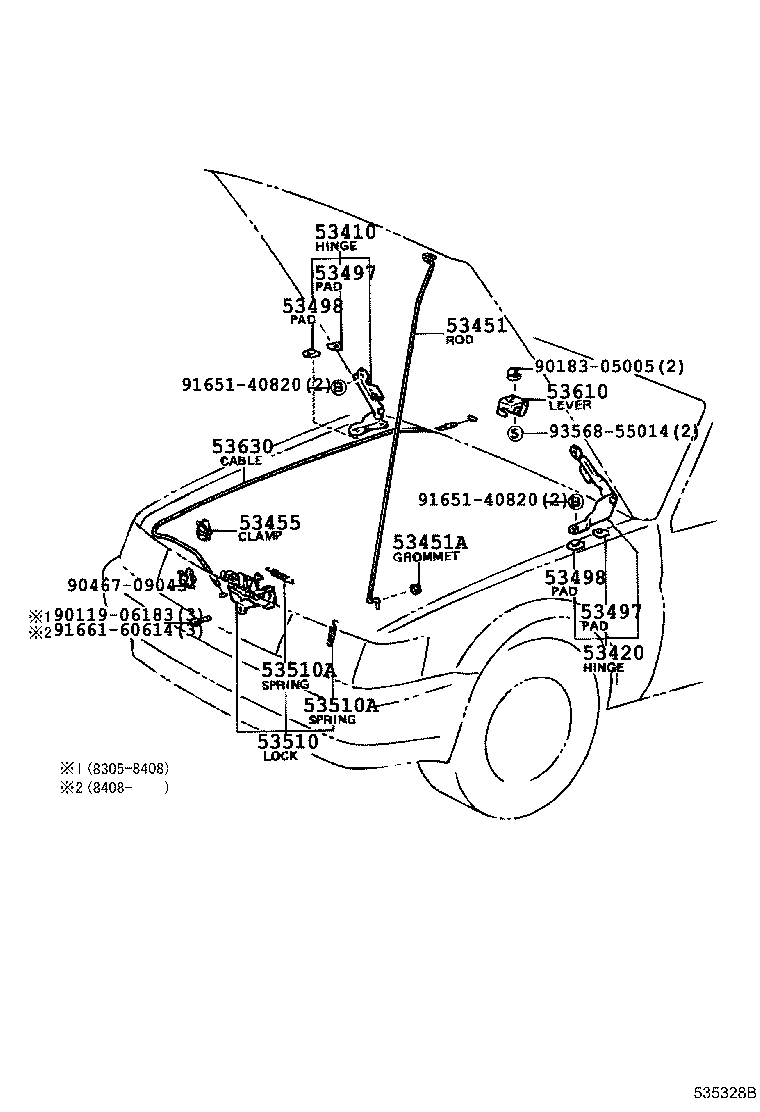

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12060 |
AE86 PAD T=1.0 |
1 | ||
| 53410-12100 |
AE86 PAD T=2.0 |
1 | ||
| 53410-12090 |
AE86 PAD T=2.0 |
1 | ||
| 53410-12070 |
AE86 PAD T=1.0 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12090 |
AE86 PAD T=2.0 |
1 | ||
| 53420-12080 |
AE86 PAD T=2.0 |
1 | ||
| 53420-12050 |
AE86 PAD T=1.0 |
1 | ||
| 53420-12060 |
AE86 PAD T=1.0 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-12030 |
AE86 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15002 |
AE86 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-12030 |
AE86 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE86 T=1.0,T=1.0 |
2 | ||
| 53497-12020 |
AE86 T=2.0,T=2.0 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE86 T=1.0,T=1.0 |
2 | ||
| 53497-12020 |
AE86 T=2.0,T=2.0 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE86 T=1.0 |
2 | ||
| 53498-12020 |
AE86 T=2.0 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE86 T=1.0 |
2 | ||
| 53498-12020 |
AE86 T=2.0 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12250 |
AE86..LHD..(EUR,GEN) |
1 | ||
| 53510-12330 |
AE86..LHD..(EUR,GEN) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
AE86 WD=2.0,CW=17,L=60.0 |
1 | ||
| 90506-09031 |
AE86..ARL,EUR,GEN WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
AE86 WD=2.0,CW=17,L=60.0 |
1 | ||
| 90506-09031 |
AE86..ARL,EUR,GEN WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-1203014 |
AE86 BLUE,BLUE,TRIM8# |
1 | ||
| 53601-1203002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12220 |
AE86..LHD |
1 | ||
| Common parts | ||||
| 90119-06183 | ||||
| 90183-05005 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 91661-60614 | ||||
| 93568-55014 | ||||
