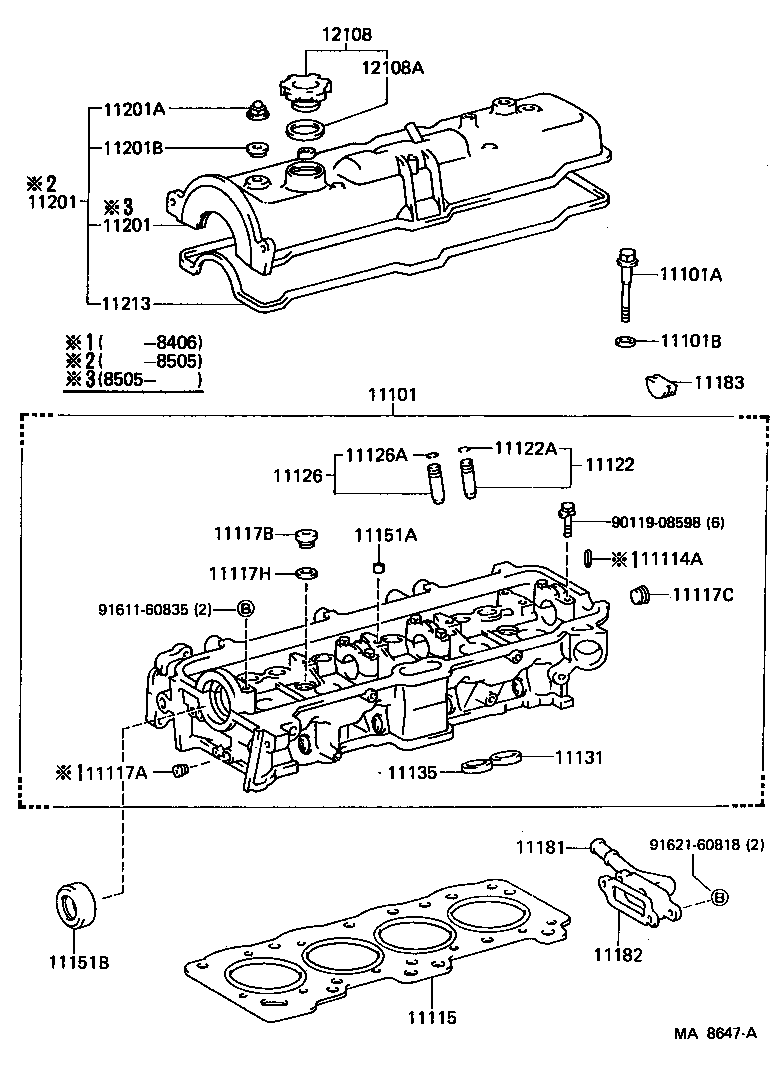

Toyota Corolla coupe AE86 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-15080	4A..AE86	05/1985 - 04/1987	1
11101-15031	4A,4AC..AE86	05/1983 - 05/1985	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025	4A,4AC..AE86 *10-1.25PX97.5-22	05/1983 - 04/1987	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	4A,4AC,4AG#..AE86	05/1983 - 07/1987	10
11114A - PIN, STRAIGHT
90254-03003	4A,4AC..AE86 L=8,OD=3.2	05/1983 - 06/1984	1
11115 - GASKET, CYLINDER HEAD
11115-16020	4A,4AC..AE86	05/1983 - 05/1985	1
11115-16050	4A..AE86	05/1985 - 04/1987	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-51002	4A,4AC..AE86	05/1983 - 06/1984	6
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002	4A,4AC..AE86	05/1983 - 04/1987	2
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-54002	4A,4AC..AE86	05/1983 - 04/1987	1
11117H - GASKET(FOR WATER HOLE)
90430-20004	4A,4AC..AE86	05/1983 - 04/1987	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-15020	4A,4AC..AE86 STD,STD	05/1983 - 02/1986	4
11122-15011	4A..AE86 STD,STD	02/1986 - 04/1987	4
11123-15011	4A..AE86 O/S 0.05,O/S 0.05	02/1986 - 04/1987	4
11123-15020	4A,4AC..AE86 O/S 0.05,O/S 0.05	05/1983 - 02/1986	4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10001	4A,4AC..AE86	05/1983 - 02/1986	4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-15020	4A,4AC..AE86 STD,STD	05/1983 - 02/1986	4
11127-15020	4A,4AC..AE86 O/S 0.05,O/S 0.05	05/1983 - 02/1986	4
11127-15011	4A..AE86 O/S 0.05,O/S 0.05	02/1986 - 04/1987	4
11126-15011	4A..AE86 STD,STD	02/1986 - 04/1987	4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10001	4A,4AC..AE86	05/1983 - 02/1986	4
11131 - SEAT, INTAKE VALVE
11132-15020	4A,4AC..AE86 O/S 0.03,O/S 0.03	05/1983 - 04/1987	4
11131-15020	4A,4AC..AE86 STD,STD	05/1983 - 04/1987	4
11135 - SEAT, EXHAUST VALVE
11136-15020	4A,4AC..AE86 O/S 0.03,O/S 0.03	05/1983 - 04/1987	4
11135-15020	4A,4AC..AE86 STD,STD	05/1983 - 04/1987	4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021	4A,4AC..AE86 L=8,OD=11	05/1983 - 04/1987	10
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35013	4A,4AC..AE86	08/1983 - 04/1987	1
90311-35003	4A#..AE86	05/1983 - 08/1983	1
11181 - PLATE, CYLINDER HEAD, REAR
11181-16010	4A,4AC..AE86..LHD	05/1983 - 04/1987	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-15011	4A,4AC..AE86	05/1983 - 04/1987	1
11183 - PLUG, SEMICIRCULAR
11183-15010	4A,4AC..AE86	05/1983 - 04/1987	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19025	4A,4AC..AE86	05/1983 - 05/1985	1
11210-15040	4A..AE86	05/1985 - 04/1987	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19025	4A,4AC..AE86	05/1983 - 05/1985	1
11210-15040	4A..AE86	05/1985 - 04/1987	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007	4A,4AC..AE86	05/1983 - 04/1987	3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001	4A,4AC..AE86	05/1983 - 04/1987	3
11213 - GASKET, CYLINDER HEAD COVER
11213-15040	4A..AE86	05/1985 - 04/1987	1
11213-15020	4A,4AC..AE86	05/1983 - 05/1985	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010	4A..AE86	03/1986 - 04/1986	1
12180-70010	4A,4AC,4AG#..AE86	05/1983 - 03/1986	1
12180-13030	4A..AE86	04/1986 - 04/1987	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
Common parts
90119-08598
91611-60835
91621-60818

AE86L-ESPXS (1983)

(8305- )4A,4AC
