AE86L-ESMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

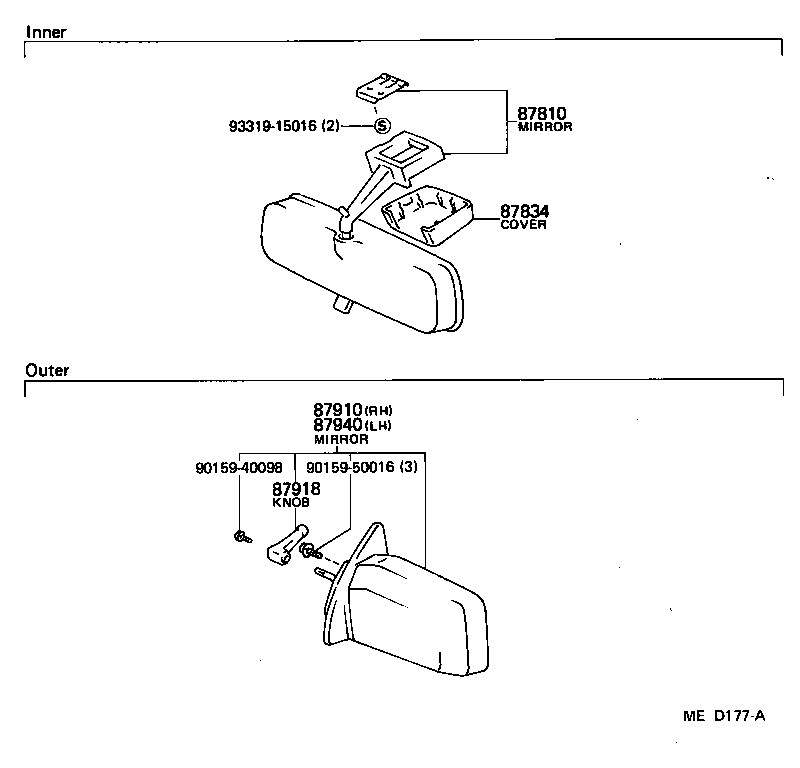

Click highlighted areas on diagram

diagram 87810 87834 87910 87918 87940 9015940098 9015950016 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1220002

AE86..ARL,GEN,ME

MAROON,RED/MAROON,TRIM3#

 1
87810-1220004

AE86..ARL,GEN,ME

BLUE,BLUE,TRIM8#

 1
87810-1220001

AE86..GEN,ME

BLACK,BLACK,TRIM2#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008002

AE86

MAROON,RED/MAROON,TRIM3#

 1
87834-2008024

AE86

BLUE,BLUE,TRIM8#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-12710

AE86..LHD

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-12030

AE86

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-12790

AE86..LHD

 1
Common parts
90159-40098
90159-50016
93319-15016
