AE86L-ESMXS (1983)
Toyota Corolla Coupe
(8305- )SR

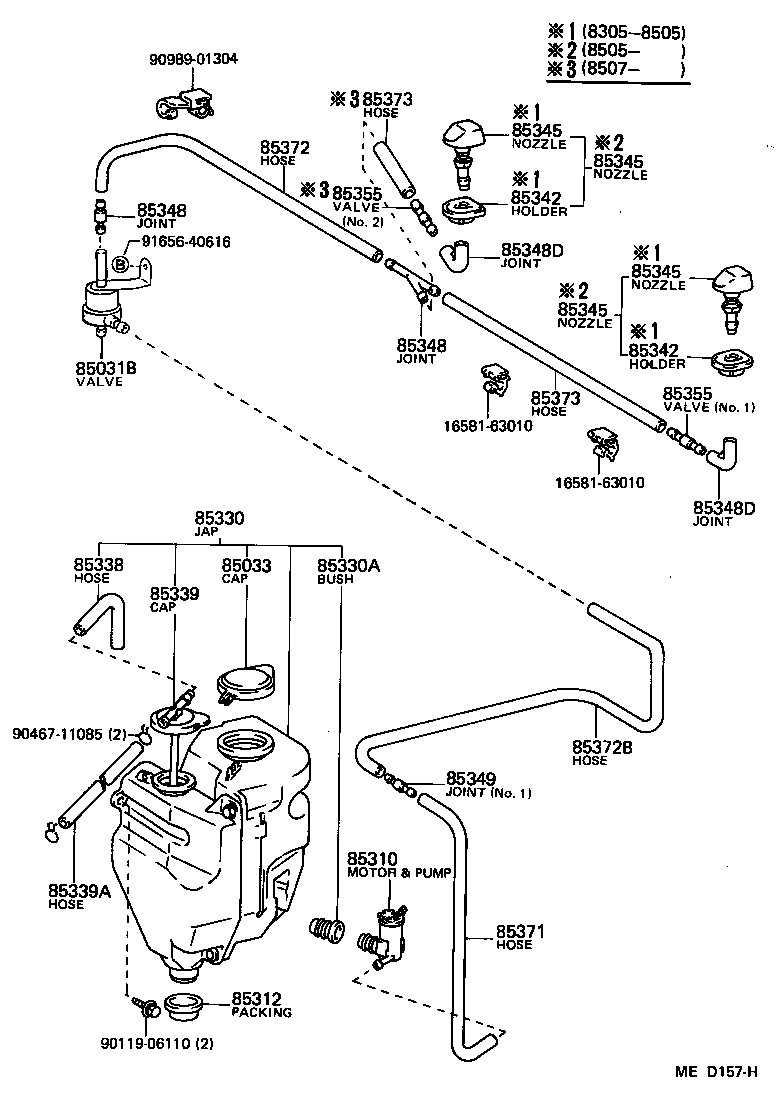

W/O AIR PRE-CLEANER/HEADLAMPCLEANER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE86 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AE86 |
1 | ||
| 85312 - PACKING, WINDSHIELD WASHER TANK | ||||
| 85312-32010 |
AE86..SR |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12320 |
AE86..SR..GEN |
1 | ||
| 85331-12370 |
AE86..LHD..SR W/AIR PRE-CLEANER |
1 | ||
| 85331-12370 |
AE86..LHD..SR W/AIR PRE-CLEANER OR *HC |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE86 |
1 | ||
| 85338 - HOSE, BREATHER | ||||
| 85338-16010 |
AE86..SR |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-12010 |
AE86..SR |
1 | ||
| 85339A - HOSE (FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
AE86..SR |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE86 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86..LHD 3-WAY |
1 | ||
| 85348-12250 |
AE86 3-WAY |
1 | ||
| 85355-87201 |
AE86 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86..LHD 3-WAY |
1 | ||
| 85348-12250 |
AE86 3-WAY |
1 | ||
| 85355-87201 |
AE86 2-WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86 |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..SR NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
AE86..LHD NO.1 |
1 | ||
| 85031-14080 |
AE86 NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
AE86..LHD NO.1 |
1 | ||
| 85031-14080 |
AE86 NO.1 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
AE86..SR..GEN *H,L=270 |
1 | ||
| 90446-06013 |
AE86..LHD..SR *H,L=400,W/AIR PRE-CLEANER |
1 | ||
| 90446-06013 |
AE86..LHD..SR *H,L=400,W/AIR PRE-CLEANER OR *HC |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
AE86 *H,L=450 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
AE86..SR *H,L=850 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86 *H,L=490 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86 *H,L=490 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 90119-06110 | ||||
| 90467-11085 | ||||
| 90989-01304 | ||||
| 91656-40616 | ||||
(8305- )LHD..SR ; (8308- )LHD..GT

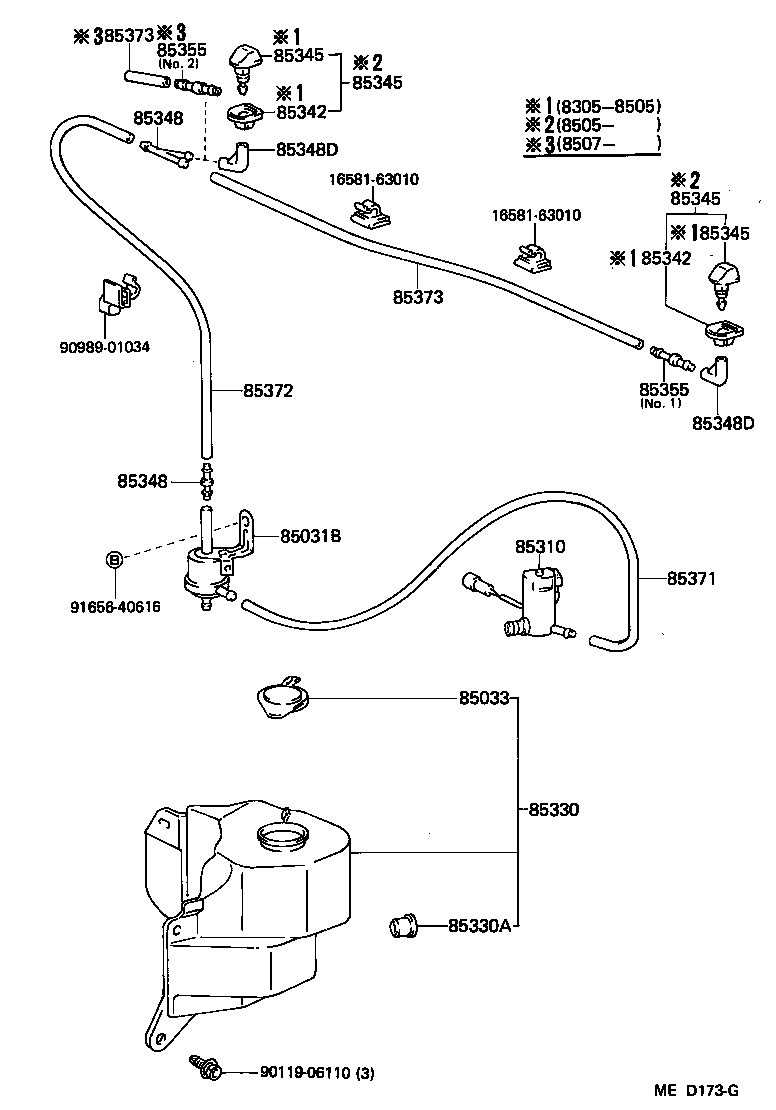

W/AIR PRE-CLEANER/HEADLAMP CLEANER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE86 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AE86 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12320 |
AE86..SR..GEN |
1 | ||
| 85331-12370 |
AE86..LHD..SR W/AIR PRE-CLEANER |
1 | ||
| 85331-12370 |
AE86..LHD..SR W/AIR PRE-CLEANER OR *HC |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE86 |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE86 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86..LHD 3-WAY |
1 | ||
| 85348-12250 |
AE86 3-WAY |
1 | ||
| 85355-87201 |
AE86 2-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86..LHD 3-WAY |
1 | ||
| 85348-12250 |
AE86 3-WAY |
1 | ||
| 85355-87201 |
AE86 2-WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
AE86..LHD NO.1 |
1 | ||
| 85031-14080 |
AE86 NO.1 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
AE86..LHD NO.1 |
1 | ||
| 85031-14080 |
AE86 NO.1 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
AE86..SR..GEN *H,L=270 |
1 | ||
| 90446-06013 |
AE86..LHD..SR *H,L=400,W/AIR PRE-CLEANER |
1 | ||
| 90446-06013 |
AE86..LHD..SR *H,L=400,W/AIR PRE-CLEANER OR *HC |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
AE86 *H,L=450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86 *H,L=490 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
AE86 *H,L=490 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 90119-06110 | ||||
| 90989-01034 | ||||
| 91656-40616 | ||||
